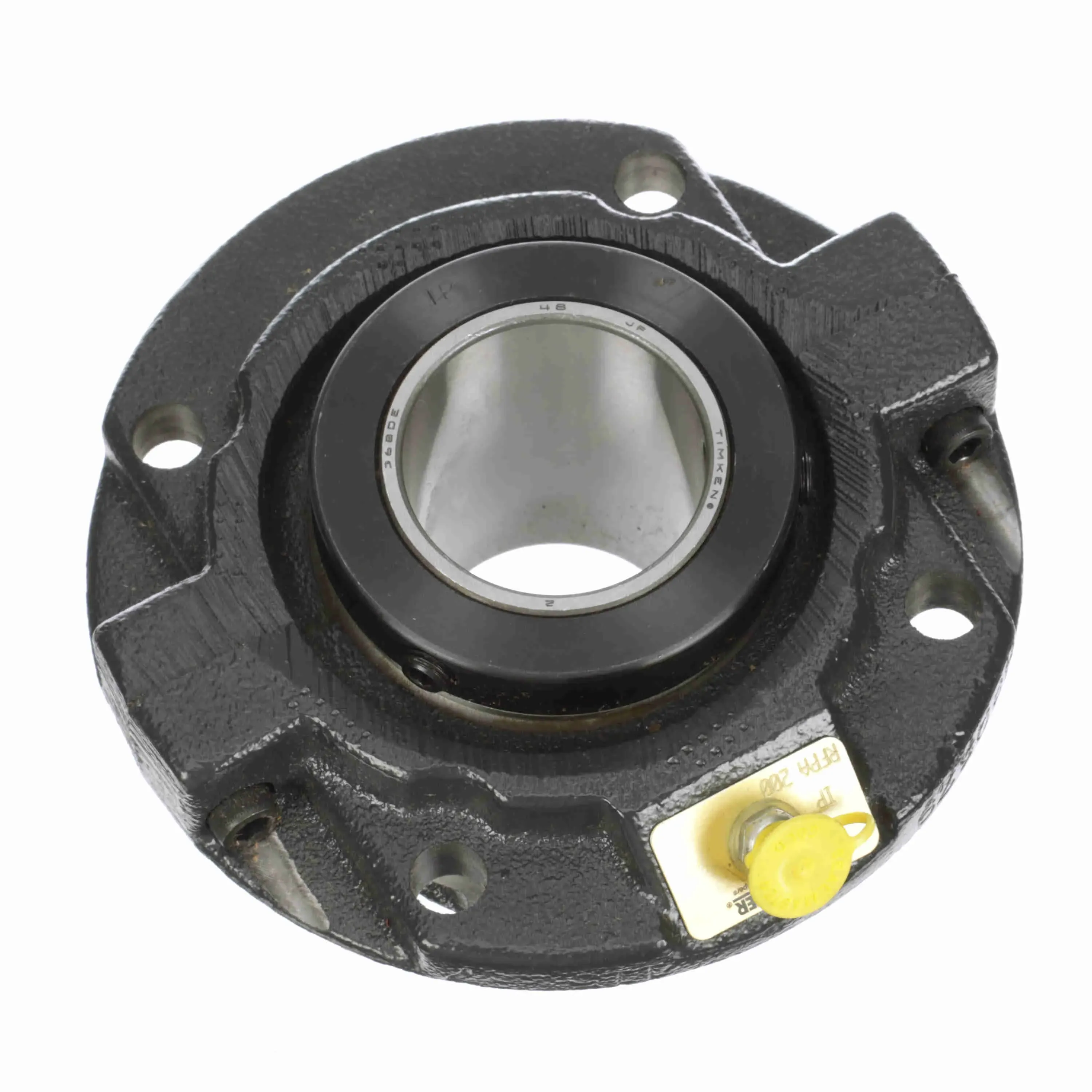

SEALMASTER RFPA 200 | BF3HLY

SEALMASTER RFPA 200

Item: BF3HLY Model: RFPA 200Cross Ref: 551919
In Stock

Get it by Thursday, Jun 12

€899.01 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemFlange Block Bearing
Ability To RelubricateYes
Bearing Insert FinishUncoated
Bolt Center Dia.5 3/8"
Bolt Center-to-center Length3.801"
Bolt Size7/16"
Bore Dia.2"
Bore ShapeStraight
Centerline To Front Face1.703"
Collar Outer Diameter3 1/4"
Duty/seriesStandard
Dynamic Radial Load Capacity8070 lbs.
End CapNo
ExpansionNon Expansion Bearing Fixed
Foot Height0.563"
Grease Fitting Thread Size1/8"
Grease Fitting Thread TypeNPT
Housing BaseSolid
Housing ColorGray
Housing ConstructionSplit Two Piece
Housing MaterialCast Iron
Housing Outside Diameter6 3/8"
Housing StyleFlange Block
Housing TypeFlange, Piloted
Htc8483.20.4080
Inner Race Heat Treat MethodCase Carburized Inner Ring
Inner Race Length2.953"
Insert MaterialSteel
Insert Material Grade52100
Insert NumberRCIA-200
Internal ClearanceStandard
Locking TypeCollar Mount
Lubrication TypeLithium, EP, NLGI#2
Max. Operating Temperature220°F
Max. Speed2500 RPM
Measure UnitsInch
Misalignment Capability-3° to +3°
Misalignment TypeStatic Only
Outer Ring Land ProfileStandard
Overall Height2.953"
Overall Length6 3/8"
Overall Width1 9/16"
Pilot ConfigurationWith Pilot
Pilot Diameter4 1/2"
PlatformRPB Series
Replaceable InsertYes
Retainer MaterialSteel
Rolling ElementTapered Roller
Seal TypeFelt Labyrinth Seal
SeriesRFPA

Shipping Info:

Ship weight (kg) 5.22
Ship height (cm)16.21
Ship length (cm)16.21
Ship width (cm)9.22
