SEALMASTER RB-10 | BE3FEJ

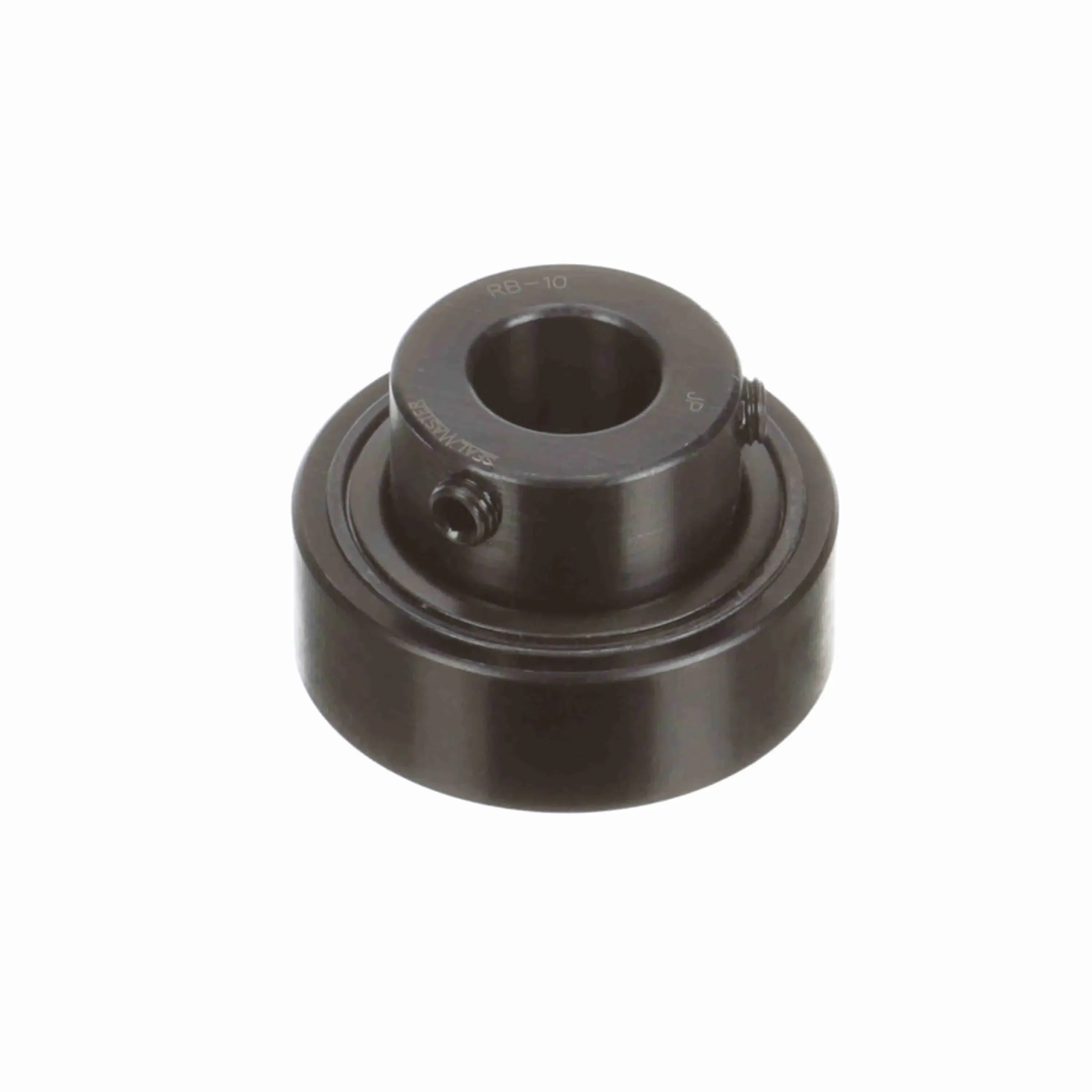

SEALMASTER RB-10 Ball Bearing, Gold Rubber Mounted Unit

Item: BE3FEJ Model: RB-10Cross Ref: 701138
In Stock

Get it by Wednesday, Jun 11

€79.52 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateNo
Bearing Insert FinishBlack Oxide
Bore Dia.5/8"
Bore ShapeStraight
Cage MaterialMolded Nylon
Centerline To Front Face7/8"
Duty/seriesStandard
Dynamic Radial Load Capacity2611 lbs.
End CapNo
Fixed Vs. ExpansionNo
Housing TypeInsert Only
Htc8482.10.5048
Inner Race Heat Treat MethodZone Hardened
Inner Race Length1.281"
Inner Race ProfileWide Inner Ring
Inner Ring Outside Diameter1.188"
Insert MaterialSteel
Insert Material FinishBlack Oxide
Insert Material Grade52100
Internal ClearanceStandard
Locking TypeSet Screw
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed7300 RPM
Measure UnitsInch
Misalignment TypeStatic Only
Outer Race Od1.85"
Outer Race ProfileCylindrical
Outer Race Width5/8"
Outer Ring Land ProfileStandard
Overall Width1.281"
PlatformGold Line Ball Bearing
Precision RatingABEC 1
Radial Static Load Capacity1444 lbs.
Radius1/25"
Replaceable InsertNo
Retainer TypeLand Riding Retainer
Rolling ElementBall Bearing
SeriesRB
Set Screw Thread Size1/4"-28
Type Of SealFelt Labyrinth Seal

Shipping Info:

Ship weight (kg) 0.18
Ship height (cm)3.66
Ship length (cm)6.05
Ship width (cm)6.05
