SEALMASTER MFC-314 | BE7JUB

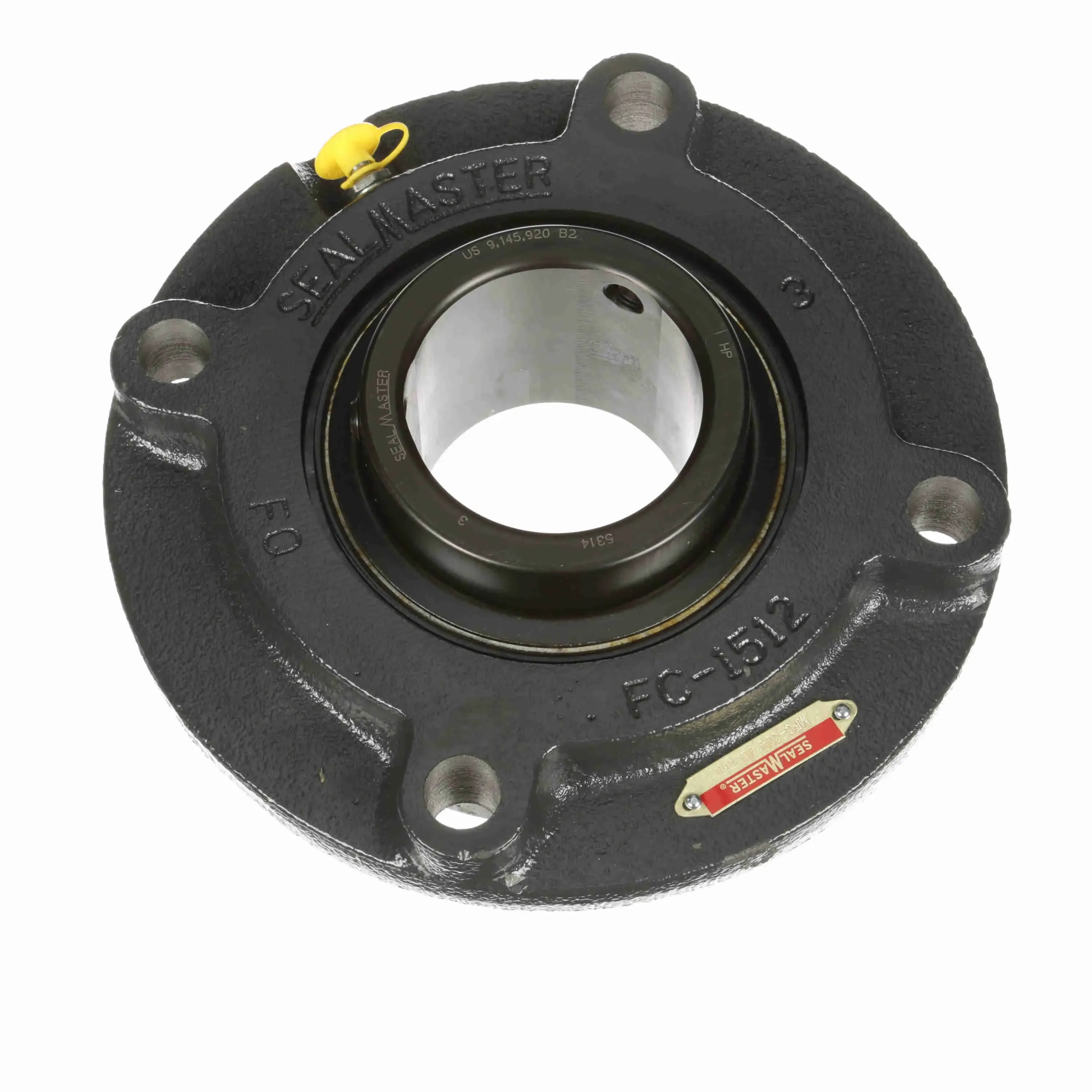

SEALMASTER MFC-314 Flange-Mount Ball Bearing Unit, 70 Mm Bore

Item: BE7JUB Model: MFC-314Cross Ref: 710193
In Stock

Get it by Thursday, Jun 12

€973.91 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateYes
Bearing Insert FinishBlack Oxide
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeMedium Duty
Bolt Circle7 1/2"
Bolt Size5/8"
Bore Dia.70 mm
Bore ShapeStraight
Cage MaterialBrass
Cage TypeLand Riding Retainer
Dynamic Load Capacity14839 lbs.
End CapNo
Fixed Vs. ExpansionFixed
Foot Height14/25"
Grease Fitting Thread Size1/8"
Grease Fitting Thread TypeNPT
Housing CoatingPowder Coated
Housing ColorBlack
Housing ConstructionOne Piece
Housing MaterialCast Iron
Housing Outside Diameter8 3/4"
Housing StyleFlange Block
Housing TypeFlange, Piloted
Htc8483.20.4040
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter3.641"
Insert5314
Length Through Bore3.06"
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed2450 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
Outer Ring Land ProfileStandard
Overall Height3.06"
Overall Length8 3/4"
Overall Width8 3/4"
Pilot ConfigurationPIloted
Pilot Depth1.03"
Pilot Diameter6 3/8"
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeFelt Labyrinth Seal
Shaft Locking TypeSet Screw
Size Code2-215
Static Load Rating11224 lbs.

Shipping Info:

Ship weight (kg) 8.19
Ship height (cm)22.56
Ship length (cm)23.01
Ship width (cm)8.74
