SEALMASTER ER-10 | BE9RCQ

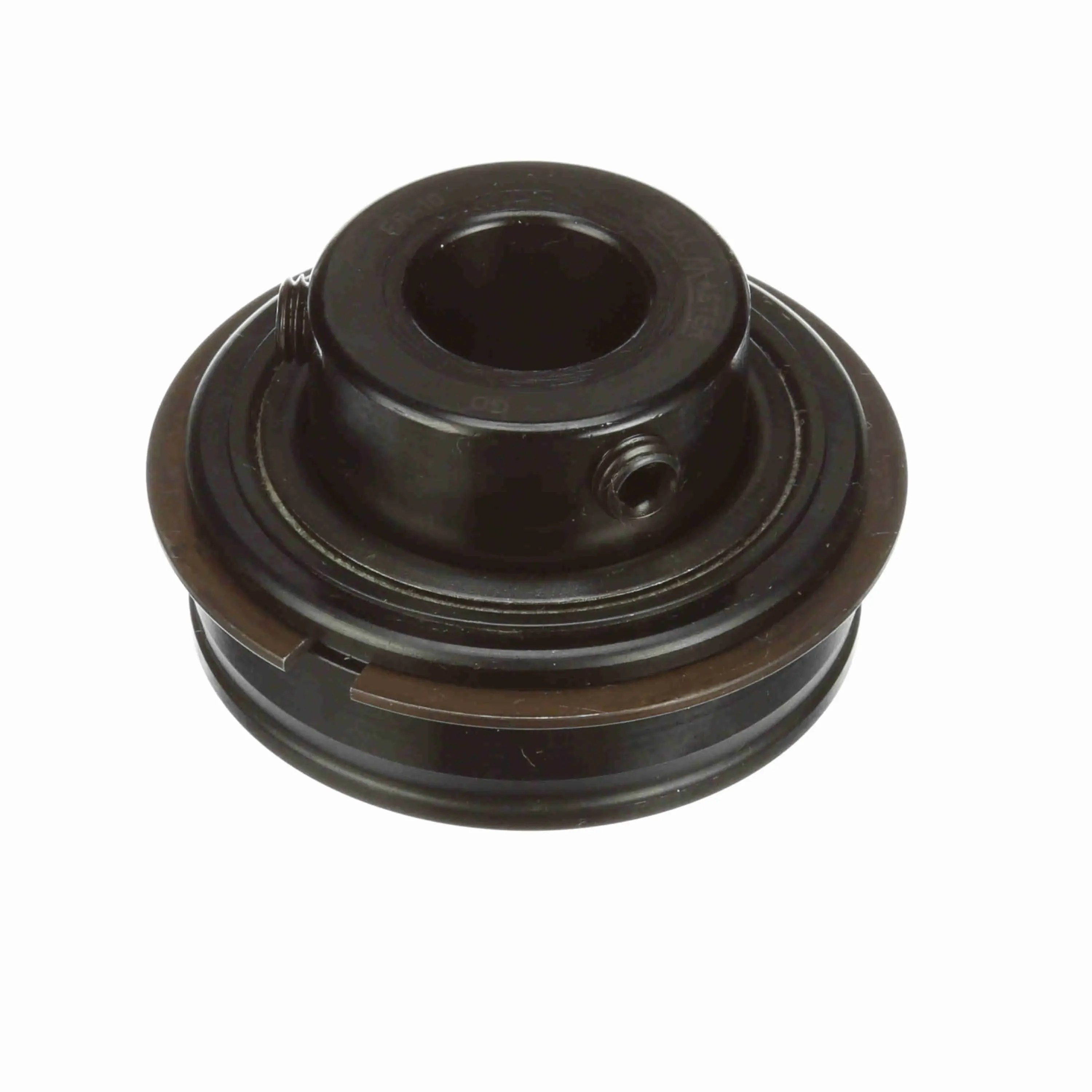

SEALMASTER ER-10 Insert Bearing, 5/8 Inch Bore, 1 27/32 Inch OD, 0.625 Inch Outer Ring Wide

Item: BE9RCQ Model: ER-10Cross Ref: 44A654 / 701051
In Stock

Get it by Thursday, Jun 12

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€138.90 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Abec Rating1
Ability To RelubricateYes
Ball MaterialAlloy Steel
Ball Material Grade52100
Bearing Industry NumberER-10
Bearing Insert FinishBlack Oxide
Bearing Insert ShapeCylindrical
Bearing Insert TypeRadial/Deep Groove Ball
Bore Dia.5/8"
Bore Diameter5/8"
Bore Diameter Tolerance+0.0000/-0.0005"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Centerline To Front Face0.813"
ClosureDouble Sealed
Duty/seriesStandard
Dynamic Radial Load Capacity2611 lbs.
End CapNo
ExpansionNo
Features120° Spacing Setscrew Lock with Diamond Faceted Setscrews, 360° Grease Circulation Around the Rolling Elements, Better Retained and Utilized Lubrication, Unique Land Riding Retainer Design Provides Superior Pocket Clearance, Use in Sealmaster Machined Housings Only
FinishBlack Oxide
For EnvironmentHighly Dusty and Dirty
Housing TypeInsert ER Style
Htc8482.10.5048
IncludesRetaining Ring, Set Screws
Inner Race Heat Treat MethodZone Hardened
Inner Race Length1.219"
Inner Race ProfileWide Inner Ring
Inner Ring Outside Diameter1.188"
Inner Ring Width1.22"
Insert MaterialSteel
Insert Material FinishBlack Oxide
Insert Material Grade52100
Internal ClearanceStandard
Load DirectionRadial
Locking TypeSet Screw
Lubricant MaterialNLGI #2 Equivalent
Lubrication OpeningsGrease Fitting
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed7300 RPM
Maximum Temperature220°F
Measure UnitsInch
Minimum Temperature-20°F
Misalignment TypeStatic Only
Outer Race Od1.85"
Outer Race ProfileCylindrical
Outer Race Width5/8"
Outer Ring Land ProfileTapered Lands
Outer Ring Width0.625"
Outside Diameter1 27/32"
Overall Width1.219"
PlatformGold Line Ball Bearing
Precision RatingABEC 1
Radial Static Load Capacity1444 lbs.
Radius1/25"
Retainer TypeLand Riding Retainer
Ring End To Center Width0.813"
Ring MaterialAlloy Steel
Ring Material GradeGrade 52100
Rolling ElementBall Bearing
Rolling Element MaterialAlloy Steel
Rolling Element Material GradeGrade 52100
Rolling Element Rows1
Seal MaterialFelt
Seal TypeFelt Labyrinth Seal
Shaft Locking TypeSet Screws
StandardsISO CERTIFIED 100-220
Static Radial Load Capacity1444 lbf.

Shipping Info:

Ship weight (kg) 0.225
Ship height (cm)3.66
Ship length (cm)6.05
Ship width (cm)6.05
