SEALMASTER CRTBF-PN23 | BE8XXH

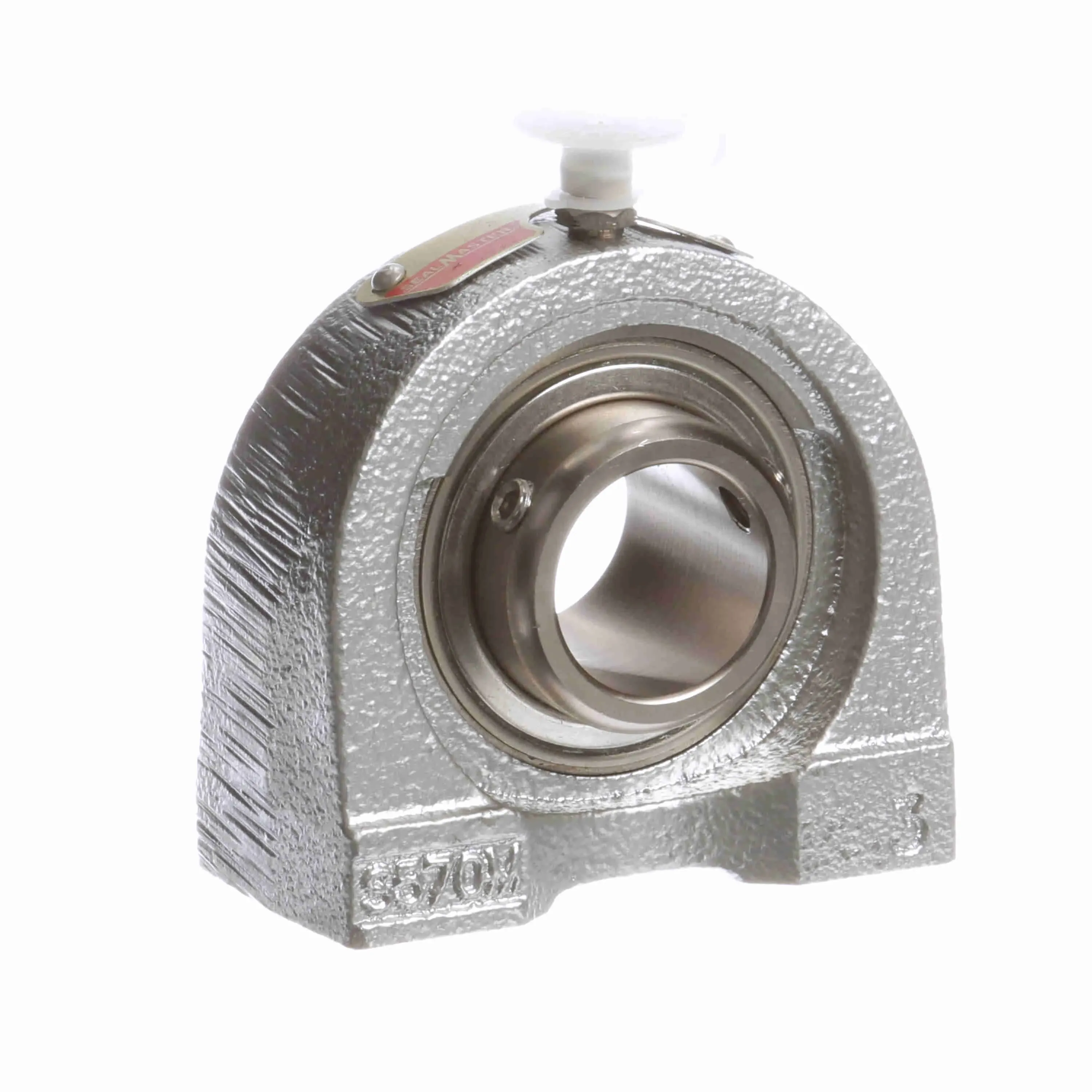

SEALMASTER CRTBF-PN23 Pillow Block Ball Bearing Unit, Tapped Base, 1-7/16 Inch Bore

Item: BE8XXH Model: CRTBF-PN23Cross Ref: 711219
In Stock

Get it by Friday, Jun 13

€501.91 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateYes
Base Length4 1/4"
Base To Center Height1 7/8"
Base Width1 22/25"
Bearing Insert FinishPhosphorus Nickel Coated
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeStandard Duty
Bolt Spacing3 1/4"
Bore Dia.1 7/16"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Cage TypeLand Riding Retainer
Centerline To Outermost Bearing Face1"
Dynamic Load Capacity5782 lbs.
End CapYes
Fixed Vs. ExpansionFixed
Grease Fitting Thread Size5/16"-24
Housing BaseSolid
Housing CoatingFlouropolymer Coated
Housing ColorGray
Housing ConstructionOne Piece
Housing MaterialCast Iron
Housing StylePillow Block
Housing TypePillow Block, Tapped Base
Housing Width1 22/25"
Htc8483.20.8040
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter1.8594"
InsertPN-23
Ip RatingIP69K
Length Through Bore1 11/16"
Lubrication TypeCalcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Max. Operating Temperature220°F
Max. Speed2000 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
OptionsCorrosion Resistant
Outer Ring Land ProfileStandard
Overall Height3 3/4"
Overall Length4.41"
Overall Width1 22/25"
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeMulti-Lip Contact Seal
Shaft Locking TypeSet Screw
Size Code2-17
Static Load Rating3493 lbs.
Thread Depth3/4"
Thread Size1/2"-13

Shipping Info:

Ship weight (kg) 2.025
Ship height (cm)5.08
Ship length (cm)12.7
Ship width (cm)12.7
