SEALMASTER CRFTC-PN20T RMW | BD7RUN

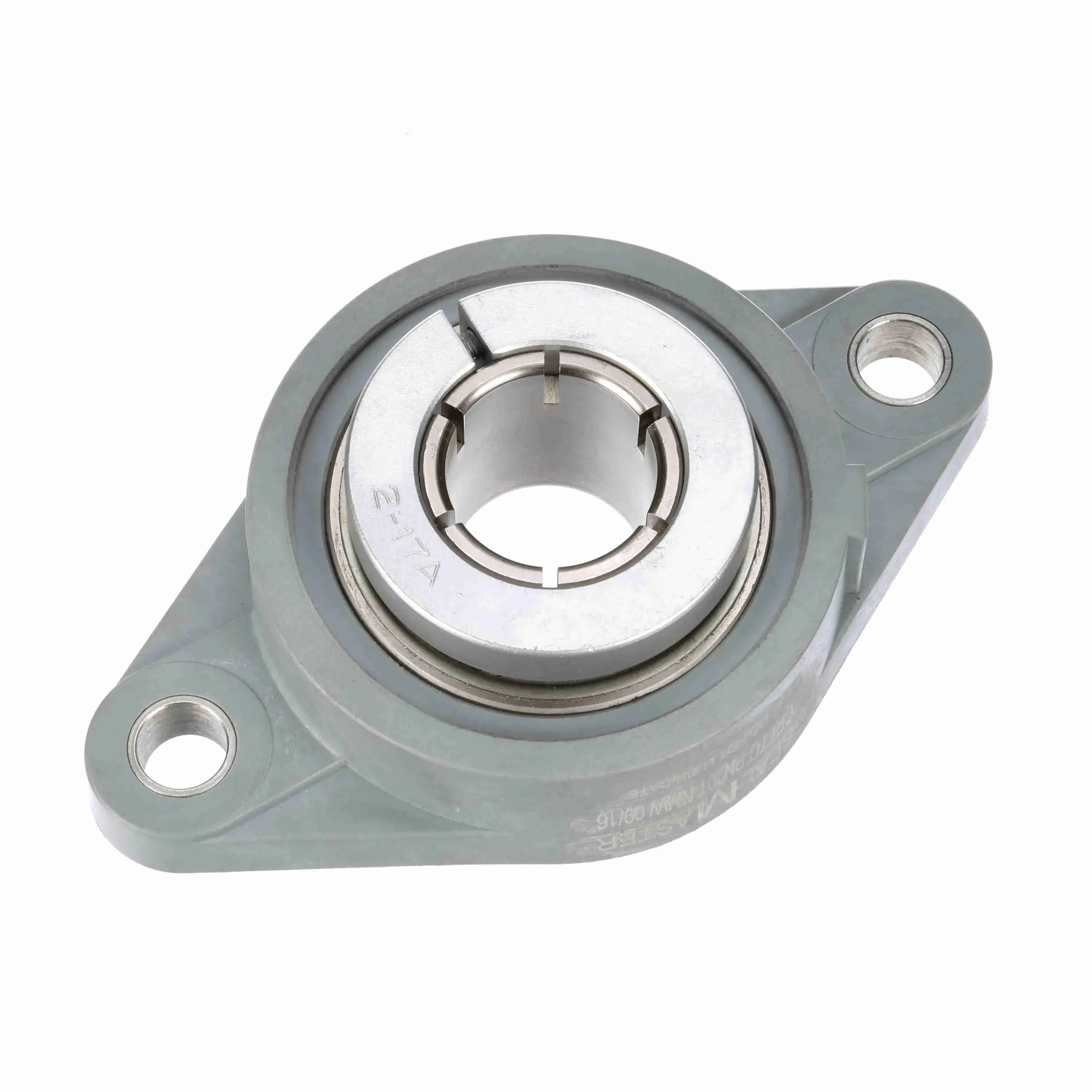

SEALMASTER CRFTC-PN20T RMW 713749 Flange Bearing, 2 Bolt, 1.25 Inch Dia, Skwezloc Locking, Composite Housing

Item: BD7RUN Model: CRFTC-PN20T RMWCross Ref: 713749
In Stock

Get it by Friday, Jun 13

€251.00 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemFlange Bearing
Ability To RelubricateNo
Backside Shield/sealOptional backside shield available order separate
Bearing Insert FinishPhosphorus Nickel Coated
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeStandard Duty
Bolt Size1/2"
Bolt Spacing5 1/8"
Bore Dia.1 1/4"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Cage TypeLand Riding Retainer
Dynamic Load Capacity5782 lbs.
End CapYes
Fixed Vs. ExpansionFixed
Foot Height14/25"
Grease Fitting Thread Size1/4"-28
Housing ColorLight Gray
Housing ConstructionOne Piece
Housing MaterialComposite
Housing StyleFlange Block
Housing TypeFlange, Two Bolt
Htc8483.20.4040
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter1.859"
InsertPN-20T
Ip RatingIP69K
Length Through Bore1.81"
Locking Collar Outside Diameter2 14/25"
Lubrication TypeCalcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Max. Operating Temperature220°F
Max. Speed2000 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
OptionsCorrosion Resistant Reduced Maintenance Lubed for Life
Outer Ring Land ProfileTapered Lands
Overall Height1.81"
Overall Height To End Cap2.94"
Overall Length6 9/25"
Overall Width3.7"
Pilot ConfigurationNo Pilot
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeMulti-Lip Contact Seal
Shaft Locking TypeConcentric
Size Code2-17
Static Load Rating3493 lbs.
Vibration Frequency Fundamental Train0.0066 cPS
Vibration Frequency Inner Ring Defect0.0905 cPS
Vibration Frequency Outer Ring Defect0.0595 cPS
Vibration Frequency Roller Spin0.0386 cPS

Shipping Info:

Ship weight (kg) 1.125
Ship height (cm)5.23
Ship length (cm)11.13
Ship width (cm)17.3
