SEALMASTER AR-3-28 | BE4GAA

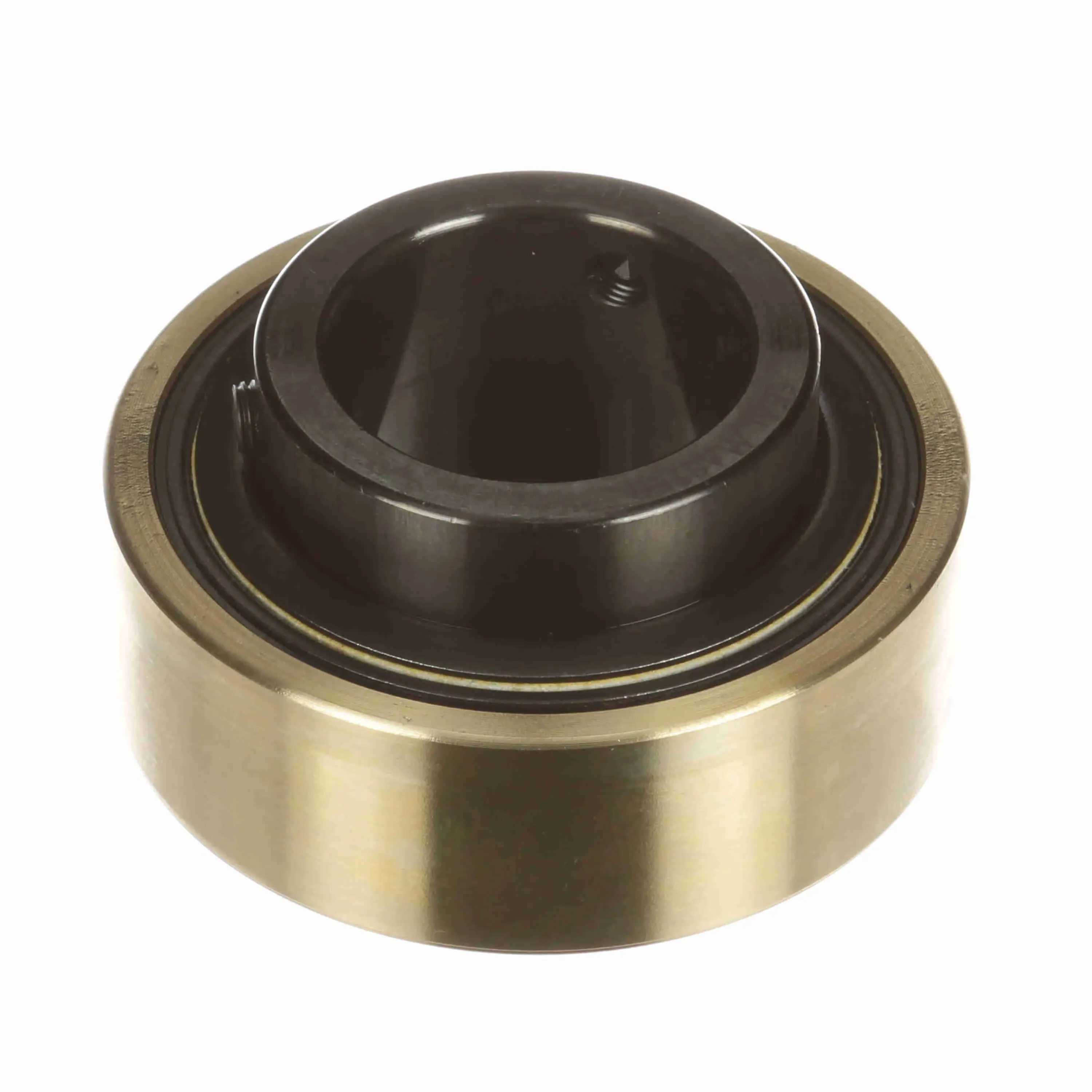

SEALMASTER AR-3-28

Item: BE4GAA Model: AR-3-28Cross Ref: 701209
In Stock

Get it by Friday, Jun 13

€1,181.62 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemInsert Bearing
Ability To RelubricateYes
Bearing Insert FinishBlack Oxide
Bore Dia.2 1/2"
Bore ShapeStraight
Cage MaterialBrass
Centerline To Front Face1.688"
Duty/seriesMedium
Dynamic Radial Load Capacity13971 lbs.
End CapNo
Fixed Vs. ExpansionNo
Housing TypeInsert Only
Htc8482.10.5056
Inner Race Heat Treat MethodZone Hardened
Inner Race Length2 3/4"
Inner Race ProfileWide Inner Ring
Inner Ring Outside Diameter3.438"
Insert MaterialSteel
Insert Material FinishBlack Oxide
Insert Material Grade52100
Internal ClearanceStandard
Locking TypeSet Screw
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed2500 RPM
Measure UnitsInch
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
Outer Race Od5.17"
Outer Race ProfileCylindrical
Outer Race Width1.453"
Outer Ring Land ProfileStandard
Overall Width2 3/4"
PlatformGold Line Ball Bearing
Precision RatingABEC 1
Radial Static Load Capacity10063 lbs.
Radius2/25"
Retainer TypeLand Riding Retainer
Rolling ElementBall Bearing
SeriesAR
Set Screw Thread Size7/16"-20
Type Of SealFelt Labyrinth Seal

Shipping Info:

Ship weight (kg) 4.185
Ship height (cm)7.95
Ship length (cm)13.97
Ship width (cm)14.12
