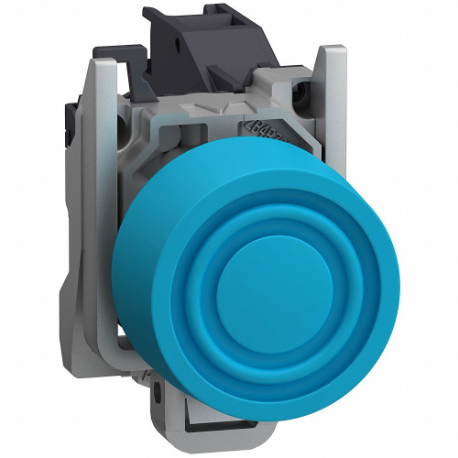

SCHNEIDER ELECTRIC XB4BPS61GEX Push Button With Integrated Boot, Blue, 22 mm Size, 1 No, Metal, Metal | CU2CWP

SCHNEIDER ELECTRIC XB4BPS61GEX Push Button With Integrated Boot, Blue, 22 mm Size, 1 No, Metal

Item: CU2CWP Model: XB4BPS61GEXCross Ref: 292ML7
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€204.64 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemBoot
Action TypeMaintained
Bezel MaterialMetal
ColorBlue
Contact Form1 NO
Contact Rating10A @ 415V AC
Head MaterialMetal
Nema Contact Rating DesignationA600/Q300
Number Of Operators1
Safety RatingZone 2
Terminal ConnectionScrew Clamp
Type Of OperatorExtended Push Button
Ac Contact Rating1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
ActionMomentary
Dc Contact Rating0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Hazardous Location SpecificationClass I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Head/lens ColorBlue
Ip RatingIP66
Mechanical Operating Durability5 x 10^6
Nema Enclosure RatingNEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Number Of Indicator Lights0
Operating Temperature - Maximum167°F
Operating Temperature - Minimum-4°F
Operator IlluminationNon Illuminated
Operator MaterialMetal
Operator Voltage Rating - Maximum415V AC
Overall Depth2.83"
Overall Height1.18"
Overall Width1.82"
Panel Mounting Hole Diameter22 mm
Product TypePush Button Operators
Push Button StyleFlush
SeriesXB4 Series
StandardsANSI/ISA 12.12.01, CSA C22.2 NO.213, EN/IEC 60079-0:2009, EN/IEC 60079-1:2009, EN/IEC 60079-31:2009, EN/IEC 60079-7:2009, INERIS 04ATEX9004U, REACH, ROHS, UL 60079-0, UL 60079-1, UL 60079-31, WEEE

Shipping Info:

Ship weight (kg) 0.036
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginFR

Product Variants

ProductModelType Of OperatorColorOperating ForceHead MaterialContact FormContact RatingBezel MaterialNumber Of OperatorsPrice
SCHNEIDER ELECTRIC XB4BP21GEX Pushbutton With Boot, Black, 22 mm Size, 1 No, Metal, Metal | CU2ALW XB4BP21GEXExtended Push ButtonBlack3.962NMetal1 NO10A @ 415V ACMetal1€184.24
SCHNEIDER ELECTRIC XB4BP61GEX Pushbutton With Boot, Red, 22 mm Size, 1 No, Metal, Metal | CU2ALX XB4BP61GEXExtended Push ButtonRed-Metal1 NO10A @ 415V ACMetal1€238.13
SCHNEIDER ELECTRIC XB4BP42GEX Pushbutton With Boot, Red, 22 mm Size, 1 No, Metal, Metal, Maintained | CU2ALY XB4BP42GEXExtended Push ButtonRed2.873NMetal1 NO10A @ 415V ACMetal1€200.53
SCHNEIDER ELECTRIC XB4BP482GEX Pushbutton With Boot, Red, 22 mm Size, 1 No, Metal, Metal, Maintained | CU2ALZ XB4BP482GEXExtended Push ButtonRed-Metal1 NO10A @ 415V ACMetal1€238.13
SCHNEIDER ELECTRIC XB4BP181GEX Pushbutton With Boot, White, 22 mm Size, 1 No, Metal, Metal | CU2AMA XB4BP181GEXExtended Push ButtonWhite-Metal1 NO10A @ 415V ACMetal1€238.13
SCHNEIDER ELECTRIC XB4BP581GEX Pushbutton With Boot, Yellow, 22 mm Size, 1 No, Metal, Metal | CU2AMB XB4BP581GEXExtended Push ButtonYellow-Metal1 NO10A @ 415V ACMetal1€238.13
SCHNEIDER ELECTRIC XB4BP51GEX Pushbutton With Boot, Yellow, 22 mm Size, 1 No, Metal, Metal, Maintained | CU2AMC XB4BP51GEXExtended Push ButtonYellow-Metal1 NO10A @ 415V ACMetal1€222.93
