SCHNEIDER ELECTRIC XB4AB1 Push Button, 22 mm Size, Momentary, Universal | CU2DAJ

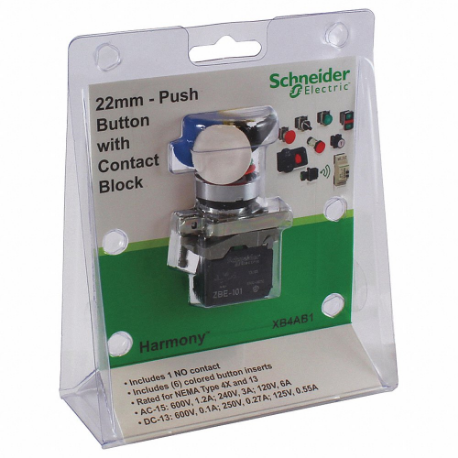

SCHNEIDER ELECTRIC XB4AB1 Push Button, 22 mm Size, Momentary, Universal

Item: CU2DAJ Model: XB4AB1Cross Ref: 55WT97
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€46.02 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPush Button
Action TypeMomentary
ColorUniversal
Contact Form1NO
FeaturesVibration Resistance 5 Gn 2‚¿500 Hz)Iec 60068-2-6 , Vibration Resistance-5 GN 2..500 Hz, IEC 60068-2-6
IncludesMomentary-Unmarked, ZB4BA9 - Non-Illuminated Operators, ZB4BZ101 - Contact Blocks
LegendNo Legend
Legend/background ColorNo Legend
Nema Contact Rating DesignationA600/Q600
Number Of Operators1
Terminal ConnectionScrew Clamp
Ac Contact Rating1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
ActionMomentary
Bezel MaterialChrome
Dc Contact Rating0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Display Qty1
Head MaterialMetal
Head/lens ColorBlack, Blue, Green, Red, White, Yellow
Ip RatingIP66
Mechanical Operating Durability5 x 10^6
Nema Enclosure RatingNEMA 4X, NEMA 13
Number Of Indicator Lights0
Operating Temperature - Maximum158°F
Operating Temperature - Minimum-13°F
Operator IlluminationNon Illuminated
Operator MaterialMetal
Operator Voltage Rating - Maximum600V AC/DC
Overall Depth2.05"
Overall Height1.85"
Overall Width1.18"
Panel Mounting Hole Diameter22 mm
Product TypePush Button Operators
Push Button StyleFlush
Resistance PropertiesDust Resistant, Impact Resistant, Vibration Resistant, Watertight
SeriesXB4 Series
StandardsBUREAU VERITAS, CSA, CSA C22.2 NO.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, GERMANISCHER LLOYD (GL), JIS C8201-1, JIS C8201-5-1, LLOYD'S REGISTER, REACH, ROHS, UL 508, UL LISTED, WEEE

Shipping Info:

Ship weight (kg) 0.1125
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelContact FormLegendType Of OperatorNema RatingTerminal ConnectionNumber Of OperatorsLegend/background ColorBasic MaterialPrice
SCHNEIDER ELECTRIC XB4BL21 Push-Button, 22 mm Size, Momentary, Black | CU2AMW XB4BL211NONo Legend--Screw Clamp1No LegendMetal€43.15
SCHNEIDER ELECTRIC XB4BL41 Push-Button, 22 mm Size, Momentary, Red | CU2ANA XB4BL411NONo Legend--Screw Clamp1No LegendMetal€43.64
SCHNEIDER ELECTRIC XB4FA3351 Push-Button, 30 mm Size, Momentary, Black | CU2ANB XB4FA33511NONo Legend--Screw Clamp1No LegendMetal€58.77
SCHNEIDER ELECTRIC XB4FA31 Push-Button, 30 mm Size, Momentary, Green | CU2ANC XB4FA311NONo Legend--Screw Clamp1No LegendMetal€50.48
SCHNEIDER ELECTRIC XB4FA3341 Push-Button, 30 mm Size, Momentary, Red | CU2AND XB4FA33411NCNo Legend--Screw Clamp1No LegendMetal€58.77
SCHNEIDER ELECTRIC XB4FA11 Push-Button, 30 mm Size, Momentary, White | CU2ANE XB4FA111NONo Legend--Screw Clamp1No LegendMetal€40.70
SCHNEIDER ELECTRIC XB6AS8345B Emergency Stop Push Button | CU2BCW XB6AS8345B--------€93.63
