SCHNEIDER ELECTRIC 9001KR2UH5 Non-illuminated Push Button 30mm 1no Universal | AG7DDY 5FZL0

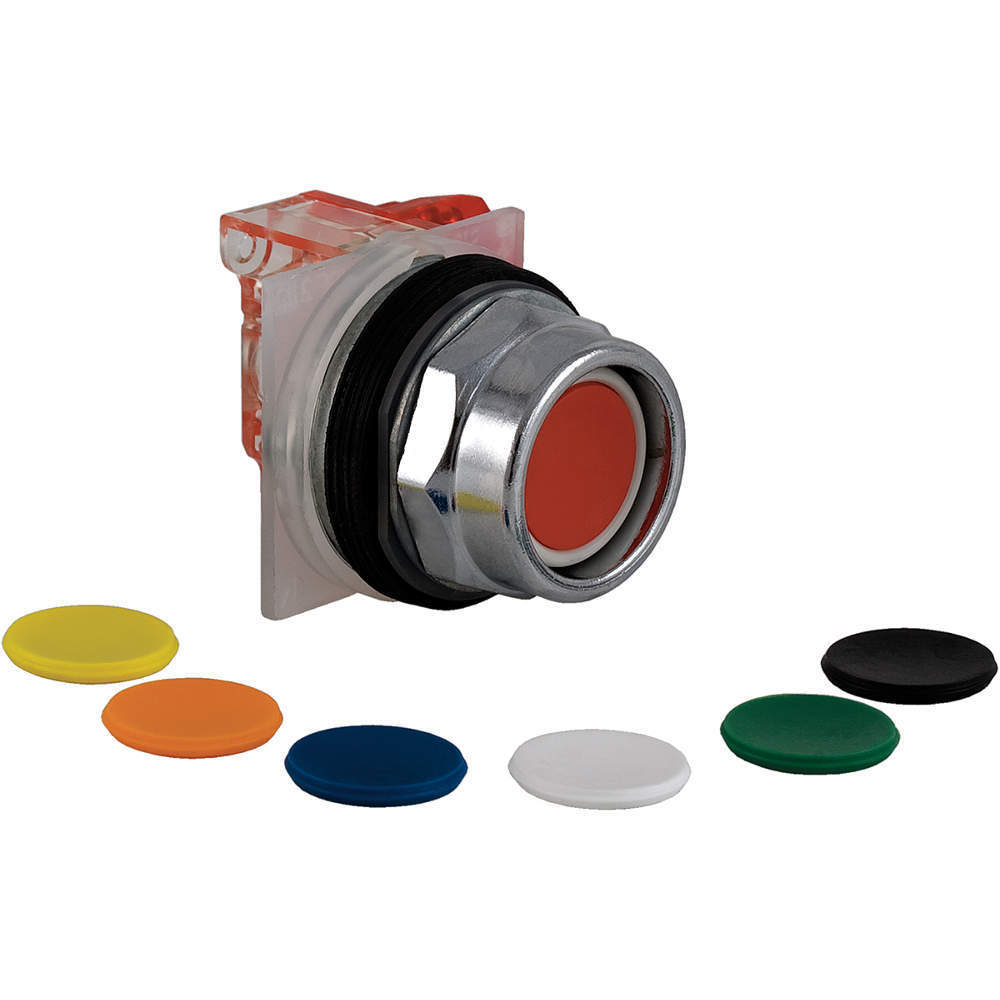

SCHNEIDER ELECTRIC 9001KR2UH5 Non-illuminated Push Button 30mm 1no Universal

Item: AG7DDY Model: 9001KR2UH5Cross Ref: 5FZL0
In Stock

Get it by Tuesday, Jun 10

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€94.50 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemNon-Illuminated Push Button
Action TypeMomentary
Basic MaterialMetal
ColorUniversal
Contact Rating10A @ 600V AC
Conventional Free Air Thermal Current10A
Device PresentationComplete Product
FeaturesFinger-Safe Terminals
Head MaterialMetal
LegendNo Legend
MaterialMetal
Mounting Diameter30 mm
Nema Contact Rating DesignationA600/Q600
Nema RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Number Of Operators1
Positive OpeningWithout
Shape Of Screw HeadCross Slotted
Shape Of Signaling Unit HeadOctagonal
Terminal ConnectionPressure Plate
Terminal Connection TypePressure Plate
Type Of OperatorExtended Guard
Ac Contact Rating1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
ActionMomentary
Bezel MaterialMetal
Manufacturer Warranty Length18 Months
Nema Enclosure RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
Operator IlluminationNon Illuminated
Operator MaterialMetal
Overall Depth1.65"
Overall Height1.77"
Overall Width1.89"
Panel Mounting Hole Diameter30 mm
Product TypePush Button Operators
Push Button StyleExtended
StandardsCSA C22.2 NO.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, ROHS, UL 508, WEEE

Shipping Info:

Ship weight (kg) 0.1935
Ship height (cm)8.38
Ship length (cm)16.51
Ship width (cm)11.18
HS code8536509031
Country of OriginMX

Product Variants

ProductModelType Of OperatorDiameterAction TypeNema RatingLegendTerminal ConnectionNumber Of OperatorsContact RatingPrice
SCHNEIDER ELECTRIC 9001KR1BH5 Non-illuminated Push Button 30mm 1no Black | AF9GFX 2EN14 9001KR1BH5Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
SCHNEIDER ELECTRIC 9001KR1BH6 Non-illuminated Push Button 30mm 1nc Black | AF9GFY 2EN15 9001KR1BH6Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
SCHNEIDER ELECTRIC 9001KR1RH13 Non-illuminated Push Button 30mm 1no/1nc Red | AF9GGB 2EN18 9001KR1RH13Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€278.43
SCHNEIDER ELECTRIC 9001KR1GH13 Non-illuminated Push Button 30mm 1no/1nc Green | AF9KFD 2XVR9 9001KR1GH13Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€278.43
SCHNEIDER ELECTRIC 9001KR1GH5 Non-illuminated Push Button 30mm 1no Green | AF9KFE 2XVT1 9001KR1GH5Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
SCHNEIDER ELECTRIC 9001KR1GH6 Non-illuminated Push Button 30mm 1nc Green | AF9KFF 2XVT2 9001KR1GH6Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
SCHNEIDER ELECTRIC 9001KR1RH5 Non-illuminated Push Button 30mm 1no Red | AF9KFG 2XVT3 9001KR1RH5Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
