SCHNEIDER ELECTRIC 9001KR2R Non-illuminated Push Button Operator 30mm Red | AF9KFP 2XVU1

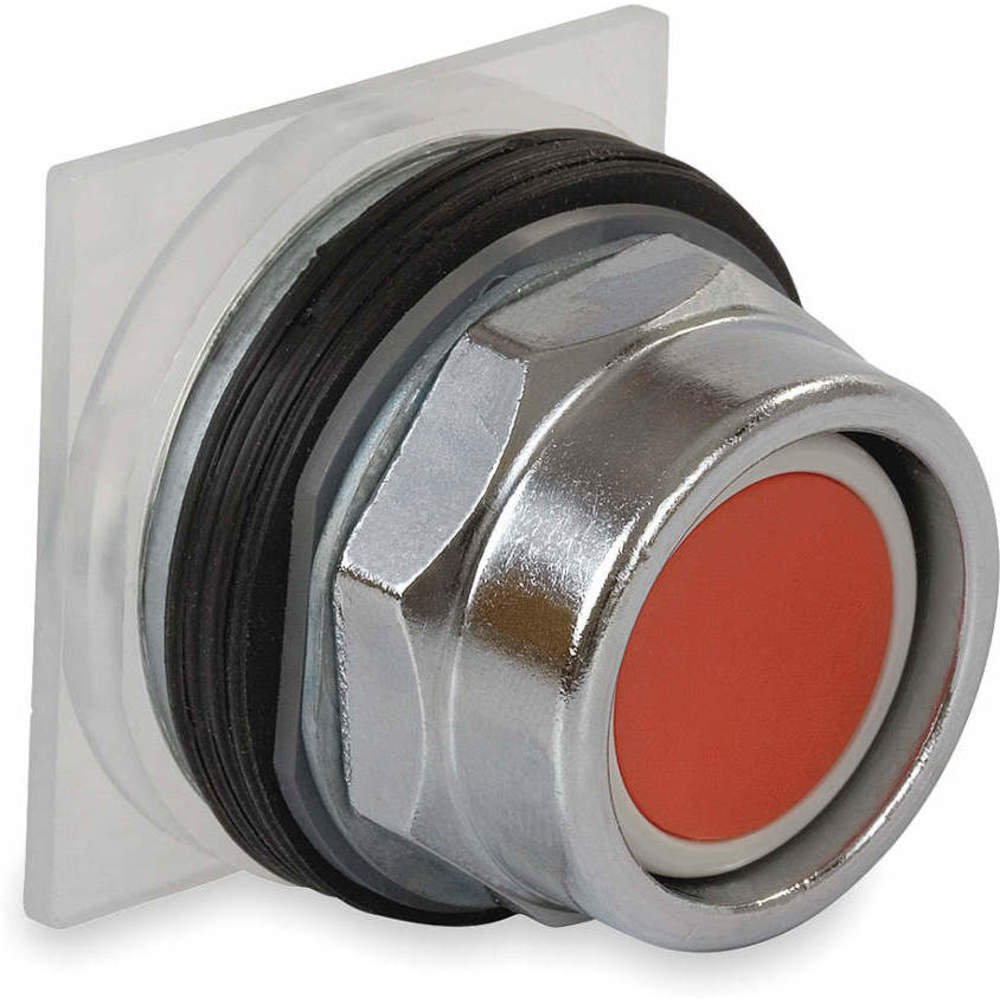

SCHNEIDER ELECTRIC 9001KR2R Non-illuminated Push Button Operator 30mm Red

Item: AF9KFP Model: 9001KR2RCross Ref: 2XVU1
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€61.76 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPush Button Operator
Action TypeMomentary
Basic MaterialMetal
Bezel FinishChrome Plated
Bezel MaterialDie Cast Aluminum
Cap/operator Or Lens ColourRed
ColorRed
Contacts Type And CompositionWithout Contact Block
Device PresentationBasic Element
Head MaterialAluminum, Zinc
LegendNo Legend
Mounting Diameter30 mm
Nema RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Number Of Operators1
Type Of OperatorExtended Guard
ActionMomentary
FeaturesLow Load Electrical Contact, Secure Connection Screws, Snap Fit Assembly
Head/lens ColorRed
Ip RatingIP66
Manufacturer Warranty Length18 Months
Nema Enclosure RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
Number Of Indicator Lights0
Operator IlluminationNon Illuminated
Operator MaterialMetal
Overall Depth1.46"
Overall Height1.74"
Overall Width1.69"
Panel Mounting Hole Diameter30 mm
Product TypePush Button Operators
Push Button StyleRecessed
Resistance PropertiesDust Resistant, Impact Resistant, Vibration Resistant, Watertight
Series9001K Series
StandardsCE, CSA LR25490 CLASS 3211 03, REACH FREE OF SVHC, ROHS, UL E42259 CCN NKCR

Shipping Info:

Ship weight (kg) 0.1125
Ship height (cm)7.37
Ship length (cm)5.84
Ship width (cm)5.33
HS code8538908080
Country of OriginMX

Product Variants

ProductModelHead MaterialType Of OperatorColorDiameterBasic MaterialNema RatingBezel MaterialNumber Of OperatorsPrice
SCHNEIDER ELECTRIC 9001KR24GM Non-illuminated Push Button Operator Green | AF7ZWP 23Z298 9001KR24GMAluminum, Zinc-Green35 mmMetalNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Die Cast Aluminum1€130.10
SCHNEIDER ELECTRIC 9001KR24RM Non-illuminated Push Button Operator 30mm Red | AF7ZWQ 23Z299 9001KR24RMAluminum, Zinc-Red35 mmMetalNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Die Cast Aluminum1€91.99
SCHNEIDER ELECTRIC 9001KR25GM Non-illuminated Push Button Operator Green | AF7ZWR 23Z302 9001KR25GMAluminum Zinc Alloy-Green60 mmMetalNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Die Cast Aluminum1€150.18
SCHNEIDER ELECTRIC 9001KR1B Non-illuminated Push Button Operator Black | AF9GFV 2EN12 9001KR1BAluminum, ZincFull GuardBlack-MetalNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Die Cast Aluminum1€64.21
SCHNEIDER ELECTRIC 9001KR1G Non-illuminated Push Button Operator Green | AF9GFZ 2EN16 9001KR1GAluminum Zinc AlloyFull GuardGreen-MetalNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Die Cast Aluminum1€64.21
SCHNEIDER ELECTRIC 9001KR1R Non-illuminated Push Button Operator 30mm Red | AF9GGA 2EN17 9001KR1RAluminum Zinc AlloyFull GuardRed-MetalNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Die Cast Aluminum1€64.21
SCHNEIDER ELECTRIC 9001KR3B Non-illuminated Push Button Operator Black | AF9GGD 2EN25 9001KR3BAluminum, ZincNo GuardBlack-MetalNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Die Cast Aluminum1€64.21
