SCHNEIDER ELECTRIC 9001KR16H13 Non-illuminated Push Button Operator 30mm Red | AF7ZXA 23Z314

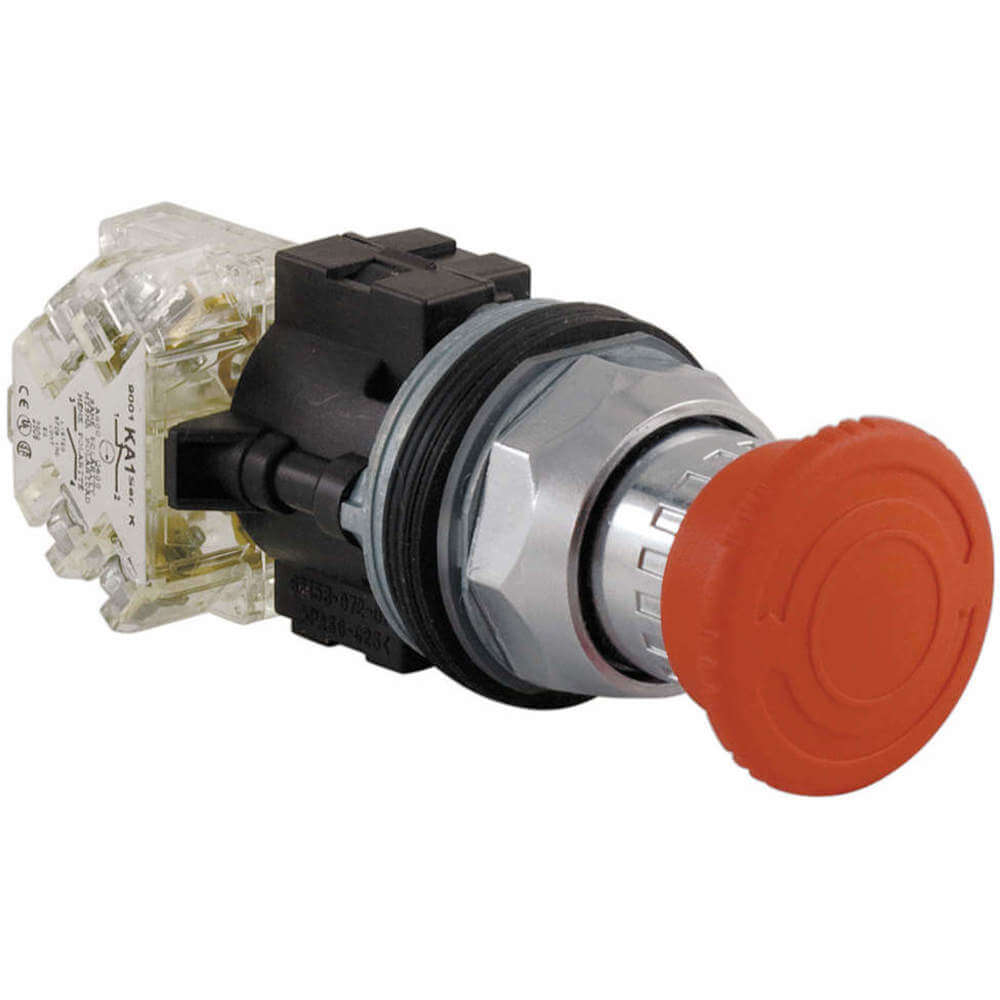

SCHNEIDER ELECTRIC 9001KR16H13 Non-illuminated Push Button Operator 30mm Red

Item: AF7ZXA Model: 9001KR16H13Cross Ref: 23Z314
In Stock

Get it by Thursday, Jun 12

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€260.49 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPush Button Operator
Action TypeMaintained Trigger Action Turn To Release
Basic MaterialMetal
Bezel FinishChrome Plated
Bezel MaterialDie Cast Aluminum
Cad Overall Depth116 mm
Cad Overall Height40 mm
Cad Overall Width40 mm
Cap/operator Or Lens ColourRed
ColorRed
Contact Rating10A @ 600V AC
Conventional Free Air Thermal Current10A
Device PresentationComplete Product
Head MaterialPlastic
LegendNo Legend
MaterialMetal
Mounting Diameter30 mm
Nema RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Number Of Operators1
Shape Of Screw HeadCross Slotted
Shape Of Signaling Unit HeadRound
Terminal ConnectionPressure Plate
Terminal Connection TypePressure Plate
Type Of OperatorTurn To Release
Ac Contact Rating1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
ActionMaintained
Contact FormSPDT
Dc Contact Rating0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Display Qty1
FeaturesFinger Safe Terminals, Self Grounding
Head/lens ColorRed
Ip RatingIP66
Maintained Action ReleaseTwist
Manufacturer Warranty Length18 Months
Mechanical Operating Durability5 x 10^6
Mushroom Head Diameter40 mm
Nema Enclosure RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Number Of Indicator Lights0
Operating Temperature - Maximum158°F
Operating Temperature - Minimum-13°F
Operator IlluminationNon Illuminated
Operator MaterialPlastic
Operator Voltage Rating - Maximum600V AC
Overall Depth4.57"
Overall Height1.57"
Overall Width1.57"
Panel Mounting Hole Diameter30 mm
Product TypeEmergency Stop Push Buttons
Push Button StyleMushroom Head
Resistance PropertiesCorrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Series9001K Series
StandardsCSA C22.2 NO.14, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, JIS C4520, JIS C852, REACH, ROHS, UL 508, WEEE

Shipping Info:

Ship weight (kg) 0.18
Ship height (cm)5.84
Ship length (cm)11.43
Ship width (cm)5.33
HS code8536509031
Country of OriginMX

Product Variants

ProductModelType Of OperatorLegendNema RatingTerminal ConnectionNumber Of OperatorsContact RatingTerminal Connection TypeBasic MaterialPrice
SCHNEIDER ELECTRIC 9001KR16H2 Non-illuminated Push Button Operator 30mm Red | AF7ZWZ 23Z313 9001KR16H21.73" Dia. Mushroom HeadNo LegendNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Pressure Plate110A @ 600V ACPressure PlateMetal€293.29
