SCHNEIDER ELECTRIC 9001K2L38LGGH13 Illuminated Push Button 30mm 1no/1nc Green | AG7DMV 5KCF1

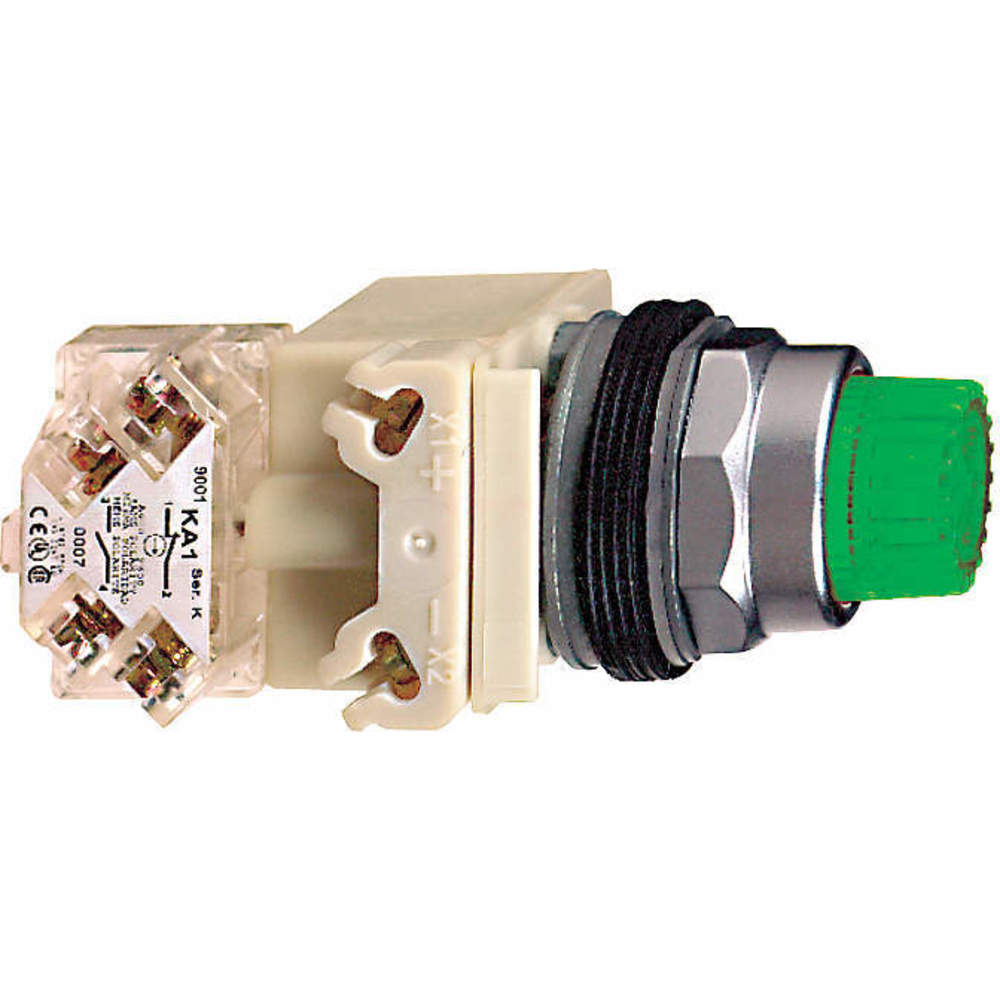

SCHNEIDER ELECTRIC 9001K2L38LGGH13 Illuminated Push Button 30mm 1no/1nc Green

Item: AG7DMV Model: 9001K2L38LGGH13Cross Ref: 5KCF1
In Stock

Get it by Tuesday, Jun 10

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€291.69 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemIlluminated Push Button
Action TypeMomentary
Basic MaterialMetal
Cad Overall Depth103 mm
Cad Overall Height42 mm
Cad Overall Width54 mm
Cap/operator Or Lens ColourGreen
ColorGreen
Contact Rating10A @ 600V AC
Conventional Free Air Thermal Current10A
Device PresentationComplete Product
Head MaterialMetal
Lamp Module TypeFull Voltage
Lamp Module Voltage120V AC
Lamp TypeLED
Lamp Voltage120V AC
Light Source ColourGreen
Mounting Diameter30 mm
Nema Contact Rating DesignationA600/Q600
Nema RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Number Of Operators1
Positive OpeningWithout
Shape Of Screw HeadCross Slotted
Shape Of Signaling Unit HeadOctagonal
Terminal ConnectionPressure Plate
Type Of OperatorNo Guard, Round
Ac Contact Rating1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
ActionMomentary
Bezel MaterialMetal
Contact FormSPDT
Head/lens ColorGreen
Lamp Bulb TypeLED
Manufacturer Warranty Length18 Months
Nema Enclosure RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 12, NEMA 13
Operator IlluminationIlluminated
Operator MaterialMetal
Overall Depth4.06"
Overall Height1.65"
Overall Width2.13"
Panel Mounting Hole Diameter30 mm
Product TypePush Button Operators
Push Button StyleExtended
StandardsCSA C22.2 NO.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, ROHS, UL 508, WEEE

Shipping Info:

Ship weight (kg) 0.1755
Ship height (cm)6.1
Ship length (cm)11.43
Ship width (cm)5.08
HS code8536509031
Country of OriginMX

Product Variants

ProductModelLamp Module TypeLamp VoltageTerminal ConnectionLamp TypeNema RatingColorLamp Module VoltageAction TypePrice
SCHNEIDER ELECTRIC 9001K1L35R Illuminated Push Button 30mm 1no/1nc Red | AF9GDL 2EL43 9001K1L35RFull Voltage1.2 VAScrew ClampLEDNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Red--€180.14
SCHNEIDER ELECTRIC 9001KR9P1RH13 Illuminated Push Button 30mm 1no/1nc Red | AF9GGY 2EN48 9001KR9P1RH13Transformer6V ACPressure PlateIncandescentNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Red120V ACPush/Pull€410.89
SCHNEIDER ELECTRIC 9001K1L1GH13 Illuminated Push Button 30mm 1no/1nc Green | AG6QNP 45C318 9001K1L1GH13Transformer6V ACPressure PlateIncandescentNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Green120V ACMomentary€304.85
SCHNEIDER ELECTRIC 9001K1L1RH13 Illuminated Push Button 30mm 1no/1nc Red | AG6QNR 45C320 9001K1L1RH13Transformer6V ACPressure PlateIncandescentNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Red120V ACMomentary€304.85
SCHNEIDER ELECTRIC 9001K1L35GH13 Illuminated Push Button 30mm 1no/1nc Green | AG6QNW 45C324 9001K1L35GH13Full Voltage24V AC/DCPressure PlateIncandescentNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Green24V AC/DCMomentary€257.07
SCHNEIDER ELECTRIC 9001K1L35RH13 Illuminated Push Button 30mm 1no/1nc Red | AG6QNZ 45C328 9001K1L35RH13Full Voltage24V AC/DCPressure PlateLEDNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Red24V AC/DCMomentary€279.52
SCHNEIDER ELECTRIC 9001K1L38LGGH13 Illuminated Push Button 30mm 1no/1nc Green | AG6QPD 45C332 9001K1L38LGGH13Transformer120V ACPressure PlateLEDNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13Green120V ACMomentary€302.48
