SAFEWAY FF495-3M Hydraulic Quick Coupler 3/8 | AD6QYL 48J303

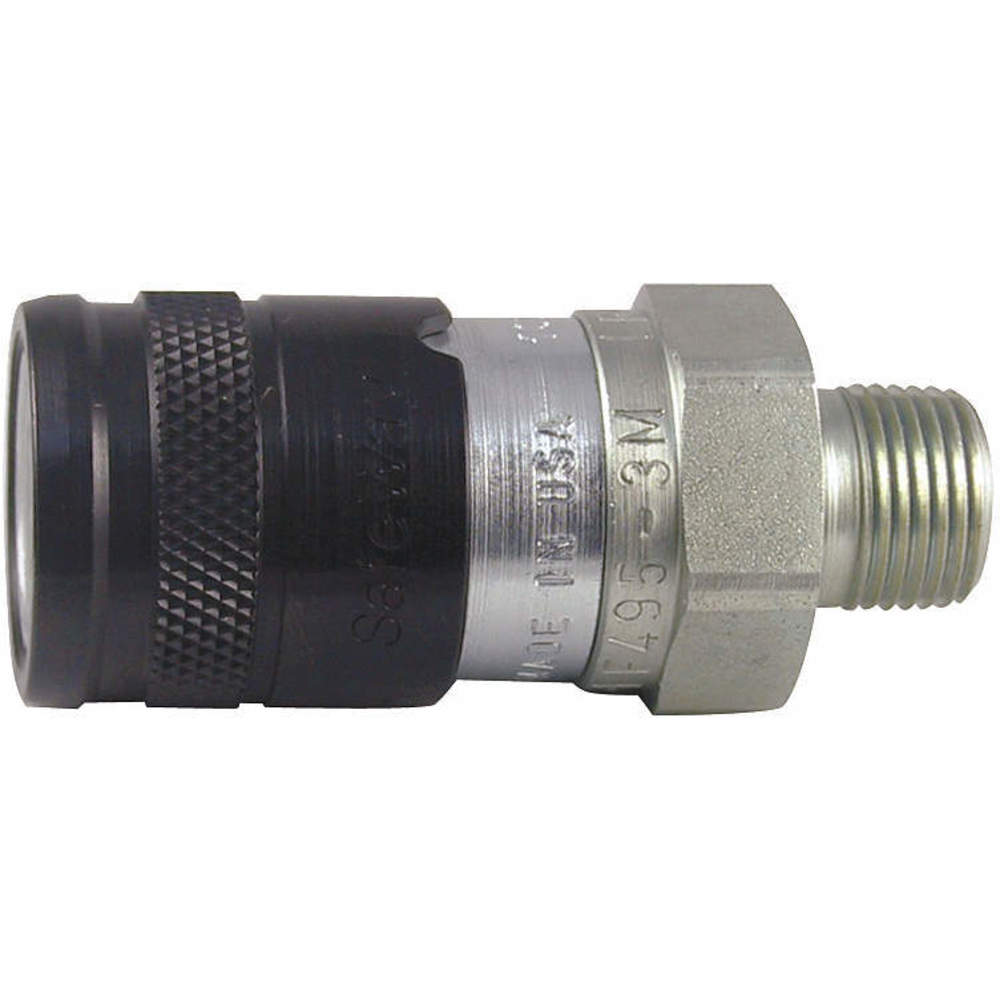

SAFEWAY FF495-3M Hydraulic Quick Coupler 3/8

Item: AD6QYL Model: FF495-3MCross Ref: 48J303
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€192.27 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemHydraulic Coupler Body
Bearing MaterialStainless Steel
Bearing TypeStainless Steel
Body MaterialCarbon Steel
Body Size3/8"
Connection TypeMNPT
Flow Rate10 GPM
Locking MechanismRetractable Sleeve With Lock
Max. Pressure10000 psi
Operating Temp. Range-40°F to +250°F
Pipe Size3/8"
Seal MaterialBuna N
Shut OffFlat Face
Sleeve MaterialCarbon Steel
Temp. Range-40°F to +250°F
Thread Size3/8"-18
TypeCoupler Body
Valve DesignPoppet
Coupling ComponentSocket
Coupling Locking TypePush-to-Connect
Coupling Size3/8"
Finish/coatingPlain
Fitting TypeMNPT
For Use WithMfr. No. FF491-3
Hose Fitting GenderMale
Includes BearingYes
Includes Shut OffYes
Includes ValveYes
Max. Flow Rate38 LPM
Max. Outside Dia.1 1/4"
Max. Working Pressure @ 70 F10000 psi
Maximum Vacuum27.4 in. hg
Overall Length2 3/4"
Pull Ring MaterialPTFE
SeriesFF49 Series
StandardsANSI/NFPA T3.20.2.R2, ISO 16028 HTMA
Valve TypePoppet

Shipping Info:

Ship weight (kg) 0.2205
Ship height (cm)6.99
Ship length (cm)6.99
Ship width (cm)3.15
HS code7307994000
Country of OriginUS
