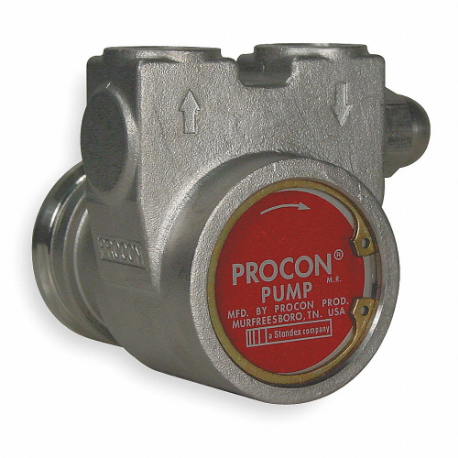

PROCON 103A100F31RA 250 Rotary Vane Pump, 3/8 Inch Inlet/Outlet Nptf, 112 Gph Max. Flow, Stainless Steel

Item: CT7ZZM Model: 103A100F31RA 250Cross Ref: 5JKD2
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€150.71 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemRotary Vane Pump
Body MaterialStainless Steel
Built-inRelief Valve
By-passYes
Bypass IncludedYes
Discharge Connection Size3/8"
External ReliefNot Required
Filter Rating - MaximumNot Applicable
Flow Rate - Maximum100 GPH
Flow Rate - Minimum94 GPH
Flow Rate @ 100 Psi100 GPH
Flow Rate @ 150 Psi98 GPH
Flow Rate @ 200 Psi96 GPH
Flow Rate @ 250 Psi94 GPH
Flow Rate @ 50 Psi102 GPH
For Media TypeNo
Gph100 GPH
Gph Of Water @ 100 Psi100 GPH
Gph Of Water @ 150 Psi98 GPH
Gph Of Water @ 200 Psi96 GPH
Gph Of Water @ 250 Psi94 GPH
Gph Of Water @ 50 Psi102 GPH
Hp @ 100 Psi1/4 hp
Hp @ 150 Psi1/3 hp
Hp @ 200 Psi1/3 hp
Hp @ 250 Psi1/2 hp
Hp @ 50 Psi1/4 hp
IncludesRelief Valve
Includes FilterNo
Inlet Size3/8"
Inlet TypeNPTF
Inlet/outlet Nptf3/8"
Max. Flow (gph)112 GPH
Max. Flow Rate100 GPH
Max. Operating Pressure150 psi , 250 psi
Max. Operating Temp.158°F
Max. Pressure250 psi
Max. Relief Pressure250 psi
Media Intake Connection Size3/8"
Min. Flow Rate (gph)94 GPH
MountingCarbonator Clamp Style
Mounting TypeCarbonator Clamp Style
Outlet Size3/8"
Outlet TypeNPTF
Overall Height2.9"
Overall Length3.3"
Overall Width3.9"
Relief Pressure Max.250 psi
Relief Valve Psi Setting200 psi
Seal MaterialCarbon, Ceramic
Shaft GradeGrade 303
Shaft MaterialStainless Steel
Shaft Outer Diameter1/2"
Vane MaterialCarbon
Viscosity - Maximum100 cPS
Compatible Motor Frame48Y NEMA
FilterNot Included
Filter CombinedNo
Max. Feet Of Head6 ft. of head
Max. Operating Temperature160°F
Max. Viscosity100 cPS
Min. Flow Rate94 GPH
Min. Operating Temperature-4°F
Nsf 169 ListedYes
Operating Temp. Range-4°F to 160°F
Port Connection3/8" NPT
Relief ValveYes
Shaft1/2" Stainless Steel
Shaft Combined1/2" 303 Stainless Steel
StandardsROHS

Shipping Info:

Ship weight (kg) 1.008
Ship height (cm)7.37
Ship length (cm)8.38
Ship width (cm)9.91
Country of OriginMX
