PIC GAUGES

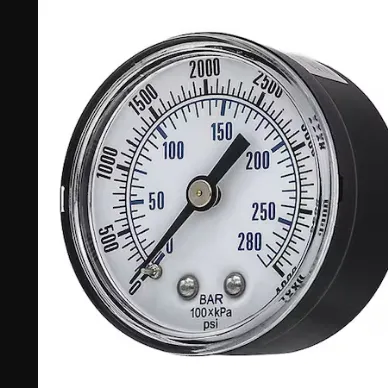

PIC GAUGES SEP-102D-204Q Industrial Pressure Gauge, 0 To 4000 PSI, 2 Inch Dial, 1/4 Inch Npt Male, Center Back

Item: CT7TLM Model: SEP-102D-204QCross Ref: 54XP70

See variants (70)

In Stock

Check Availability

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€9.41 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Pressure Gauge
Accuracy	±3-2-3%
Accuracy Grade	Grade B
Accuracy Scale	Mid Scale
Ambient Temp. Range	-40°F to +140°F
Application	Commercial , General-Purpose Case
Blowout Safety Back	No
Calibration Certificate Included	No
Case Color	Black
Case Depth	1.06"
Case Dia.	2.11"
Case Material	Steel
Case Material - Gauge	Steel
Cleaned For Oxygen Service	No
Connection Location	Center Back
Dial Color	White
Dry Dampening Feature	None
Field Fillable	No
Freeze Resistant Movement	No
Gauge Case Color	Black
Gauge Case Liquid	None
Gauge Connection Location	Center Back
Gauge Connection Size	1/4"
Gauge Nominal Dial Size	2"
Gauge Primary Range No.ed Graduations	500
Gauge Primary Range Units	Psi
Gauge Secondary Range Units	Bar
Gauge Socket Material	Copper Alloy
Gauge Wetted Parts	Copper
Graduations	500 psi
Hazardous Location Rating	Not Rated
Includes	Plastic Case
Includes Mounting Hardware	No
Includes Vent Plug	No
Ip Rating, Nema Rating	Not Rated
Lens Material	Plastic
Liquid Filled	No
Liquid-filled Case	No
Mfr. Series	SEP 100 Series
Mounting Hardware Included	No
Mounting Type	Stem Mount
Nominal Dial Size	2"
Non-sparking	No
Panel-mountable	No
Pointer Color	Black
Pointer Material	Aluminum
Pressure Gauge Type	Industrial Pressure Gauge
Pressure Range	0 psi to 4000 psi
Pressure Range Type	Pressure
Primary Scale Numeric Increments	500 , 500.0
Primary Scale Units	Psi
Process Connection Gender	Male
Process Connection Location	Center Back
Process Connection Size	1/4"
Process Connection Type	NPT
Range	0 psi to 4000 psi
Removable Bezel	No
Scale Type	Dual
Secondary Pressure Range	0 Bar to 276 Bar
Secondary Range	0 Bar to 276 Bar
Secondary Scale Units	Bar
Sensor Material	Copper Alloy
Socket Material	Copper Alloy
Vibration Resistance	None
Wetted Materials	Copper Alloy
Ambient Operating Temperature Range	-40°F to +140°F
Case Diameter	2.11"
Gauge Accuracy Grade	Grade B Commercial
Gauge Application	General Purpose Case
Gauge Case Material	Steel
Includes Calibration Certificate	No
Ip/nema Rating	Not Rated
Lens Material - Gauge	Plastic
Manufacturer Warranty Length	1 yr.
Primary Graduations	500/500
Primary Pressure Range	0 to 4000
Primary Scale Minor Graduations	500
Process Connection	1/4" NPT Male
Series	SEP 100 Series
Standards	ASME
Wetted Parts Material	Copper Alloy

Shipping Info:

Ship weight (kg)	0.2498
Ship height (cm)	5.36
Ship length (cm)	3.81
Ship width (cm)	2.69
Country of Origin	CN

Product Variants

Model	Pressure Range	Process Connection Location	Nominal Dial Size	Application	Case Material	Case Dia.	Case Depth	Ambient Temp. Range	Price
SEP-101D-254M-BSPT	0 psi to 1000 psi	Bottom	2 1/2"	General-Purpose Case	Steel	2.09"	1.14"	-40°F to +140°F	€9.00
SEP-102D-254M	0 psi to 1000 psi	Center Back	2 1/2"	General-Purpose Case	Steel	2.11"	1.06"	-40°F to +140°F	€9.11
SEP-102D-254M-BSPT	0 psi to 1000 psi	Center Back	2 1/2"	General-Purpose Case	Steel	2.11"	1.06"	-40°F to +140°F	€10.09
SEP-101D-204M-BSPT	0 psi to 1000 psi	Bottom	2"	General-Purpose Case	Steel	2.09"	1.14"	-40°F to +140°F	€8.11
SEP-102D-204M-BSPT	0 psi to 1000 psi	Center Back	2"	General-Purpose Case	Steel	2.11"	1.06"	-40°F to +140°F	€9.11
SEP-102D-204M	0 psi to 1000 psi	Center Back	2"	General-Purpose Case	Steel	2.11"	1.06"	-40°F to +140°F	€8.14
SEP-101D-354M	0 psi to 1000 psi	Bottom	3 1/2"	General-Purpose Case	Steel	2.09"	1.14"	-40°F to +140°F	€15.24
