PIC GAUGES

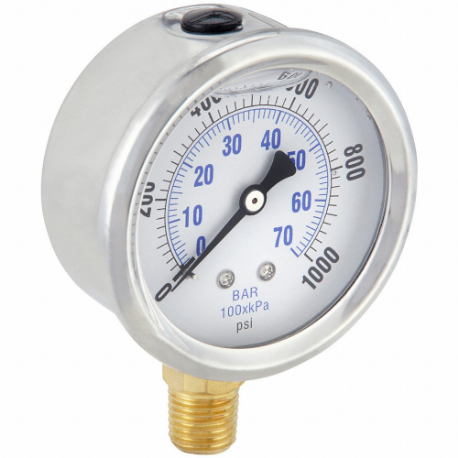

PIC GAUGES PRO-201L-254M Industrial Pressure Gauge, 0 To 1000 PSI, 2 1/2 Inch Dial, Liquid-Filled

Item: CT7TGB Model: PRO-201L-254MCross Ref: 20TV30

See variants (75)

In Stock

Check Availability

Get it by Wednesday, Jun 11

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€29.77 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Pressure Gauge
Accuracy	-2.5% to +2.5%
Accuracy Grade	Grade A
Accuracy Scale	Mid Scale
Ambient Temp. Range	-30°F to +180°F
Application	General Purpose
Basic Gauge Case Material	Stainless Steel
Basic Gauge Sensor Material	Copper
Basic Gauge Socket Material	Copper
Bezel Material	Stainless Steel
Bezel Mounting Type	Fixed
Blowout Safety Back	No
Calibration Certificate Included	No
Case Color	Metallic
Case Depth	1 1/5"
Case Dia.	2.65"
Case Material	Stainless Steel
Cleaned For Oxygen Service	No
Connection Location	Lower
Dial Color	White
Dry Dampening Feature	None
Field Fillable	No
Freeze Resistant Movement	No
Gauge Case Liquid	Glycerin
Gauge Connection Location	Bottom
Gauge Connection Size	1/4"
Gauge Filled With	Glycerin
Gauge Nominal Dial Size	2 1/2"
Gauge Panel Mountable	No
Gauge Primary Range Units	Psi
Gauge Socket Material	Copper Alloy
Gauge Wetted Parts	Copper
Hazardous Location Rating	Not Rated
Includes	Vent Plug
Includes Mounting Hardware	No
Includes Vent Plug	Yes
Ip Rating, Nema Rating	Not Rated
Lens Material	Plastic , Polycarbonate
Liquid Filled	Yes
Liquid-filled Case	Yes
Mfr. Series	201L Series
Mounting Hardware Included	No
Mounting Type	Stem Mount
Nominal Dial Size	2 1/2"
Non-sparking	No
Panel-mountable	No
Pointer Color	Black
Pointer Material	Aluminum
Pressure And Vacuum Gauge Type	Pressure Gauge
Pressure Gauge Type	Industrial Pressure Gauge
Pressure Range	0 psi to 1000 psi
Pressure Range Type	Pressure
Primary Scale Units	Psi
Process Connection Gender	Male
Process Connection Location	Bottom
Process Connection Size	1/4"
Process Connection Type	NPT
Range	0 psi to 1000 psi
Removable Bezel	No
Scale Type	Dual
Secondary Pressure Range	0 Bar to 69 Bar
Secondary Scale Units	Bar
Sensor Material	Copper Alloy
Smallest Graduation	20 psi
Socket Material	Copper Alloy
Vibration Resistance	Liquid Filled
Wetted Materials	Copper Alloy
Case Diameter	2.65"
Dial Face Color	White
Gauge Case Material	Stainless Steel
Includes Calibration Certificate	No
Ip/nema Rating	Not Rated
Lens Material - Gauge	Plastic
Manufacturer Warranty Length	1 yr.
Standards	ASME
Wetted Parts Material	Copper Alloy

Shipping Info:

Ship weight (kg)	0.2092
Ship height (cm)	6.73
Ship length (cm)	8.38
Ship width (cm)	3.05
Country of Origin	CN

Product Variants

Model	Pressure Range Type	Process Connection Location	Nominal Dial Size	Vibration Resistance	Socket Material	Accuracy	Sensor Material	Lens Material	Price
PRO-201L-254CE	Compound	Bottom	2 1/2"	Liquid Filled	Copper Alloy	-2.5% to +2.5%	Copper Alloy	Polycarbonate	€23.56
PRO-201L-254CB	Compound	Bottom	2 1/2"	Liquid Filled	Copper Alloy	-2.5% to +2.5%	Copper Alloy	Polycarbonate	€27.80
PRO-202L-254CB	Compound	Center Back	2 1/2"	Liquid Filled	Copper Alloy	-2.5% to +2.5%	Copper Alloy	Polycarbonate	€26.82
PRO-202L-254CF	Compound	Center Back	2 1/2"	Liquid Filled	Copper Alloy	-2.5% to +2.5%	Copper Alloy	Polycarbonate	€27.12
PRO-202L-254CG	Compound	Center Back	2 1/2"	Liquid Filled	Copper Alloy	-2.5% to +2.5%	Copper Alloy	Polycarbonate	€24.87
PRO-302D-158CC-01	Compound	Center Back	1 1/2"	Field Fillable	Stainless Steel	-2.5% to +2.5%	Stainless Steel	Plastic	€26.62
PRO-301D-158CC-01	Compound	Bottom	1 1/2"	Field Fillable	Stainless Steel	-2.5% to +2.5%	Stainless Steel	Polycarbonate	€26.32
