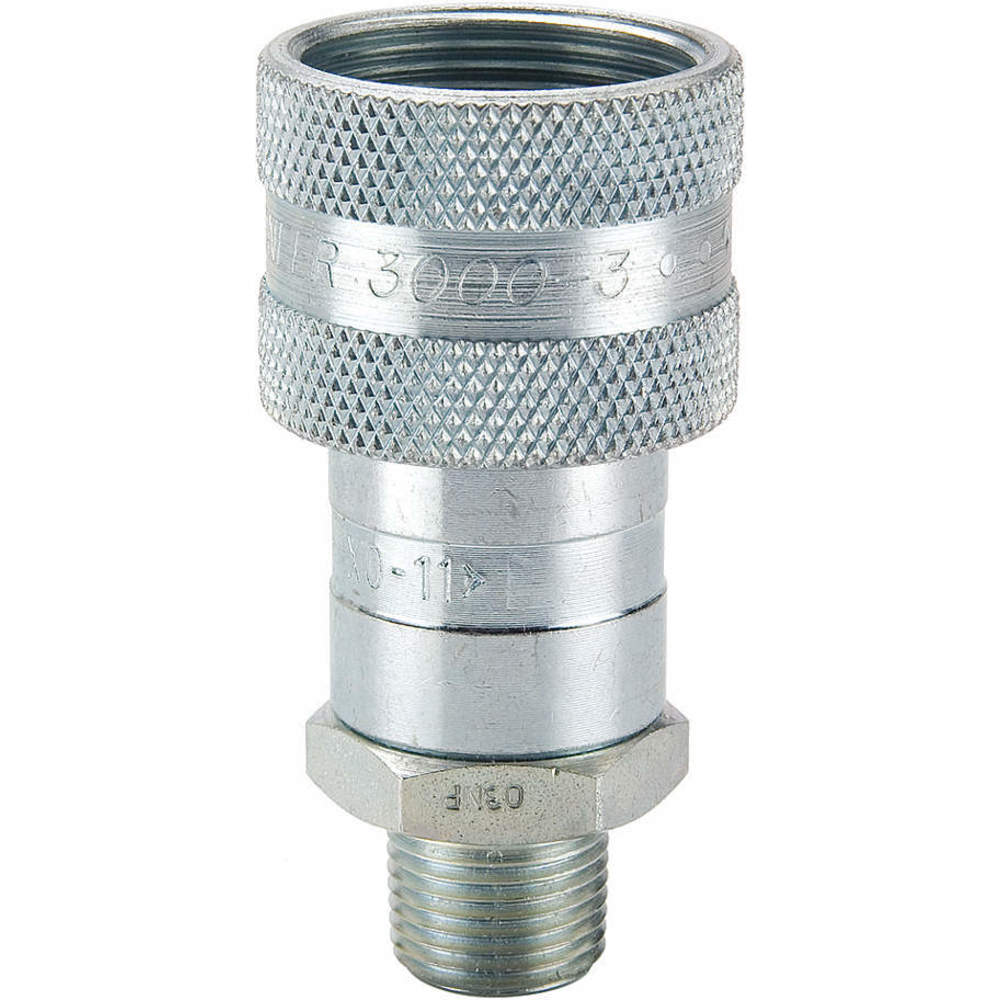

PARKER 3050-2 Hydraulic Coupler 1/4 In | AC4XLE 31A788

PARKER 3050-2 Quick Coupling, 1/4 Inch Size, High Pressure

Item: AC4XLE Model: 3050-2Cross Ref: 31A788
In Stock

Get it by Friday, Jun 13

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€99.13 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemQuick Coupler
Body MaterialSteel
Body Size1/4"
Coupler Body MaterialSteel
Coupler FinishZinc Plated
Coupling ComponentSocket
Coupling Locking TypeSleeve
Coupling Size1/4"
Finish/coatingPlain
Flow Rate3 GPM
For Use WithParker 3000 Series
GenderMale
GradeGrade 6
Hose Fitting GenderMale
Includes BearingNo
Includes Shut OffNo
Includes ValveYes
Length2 3/8"
Locking MechanismThread
Locking TypeThreads
MaterialChromium
Max. Operating Pressure10000 psi
Max. Operating Temp.230°F
Max. Pressure10000 psi
Max. Working Pressure10000 psi
Min. Operating Temp.-22°F
Pipe Size1/4"
PlatingZinc
Quick Coupler TypeHydraulic Coupler Body
Seal MaterialPolyurethane
Sleeve MaterialSteel
Temp. Range-22°F to +238°F
Thread Size1/4"-18
Thread TypeMale
TypeCoupler Body
Valve DesignBall
Valve TypeBall
Connection TypeNPTF
Fitting TypeMNPTF
Hansen InterchangeWA-56517-00
Max. Flow Rate11.36 LPM
Max. Outside Dia.1 1/8"
Max. Working Pressure @ 70 F10000 psi
Overall Length2 3/8"
Parker Interchange3050-2
Pioneer Interchange3050-2
Series3000 Series
Snap-tite Interchange76C4-4M

Shipping Info:

Ship weight (kg) 0.1125
Ship height (cm)2.86
Ship length (cm)6.03
Ship width (cm)3.05
HS code8481200050
Country of OriginUS

Product Details:

    • 3000 Series quick connect coupler designed for high-pressure applications in hydraulic rams, crimping equipment and hydraulic tools
    • Zinc-plated steel construction capable of withstanding flow rates up to 10000 psi
    • Features ball valve for allowing flow rates up to 3 GPM and threaded connection for leak-proof service
    • Polyurethane seal provides resistance to high-pressure extrusion

Product Variants

ProductModelCoupling SizeTemp. RangeBody SizeThread TypePipe SizeBody MaterialLocking TypeValve TypePrice
PARKER 3050-3 Hydraulic Coupler 3/8 In | AC4XLF 31A789 3050-33/8"-22°F to +238°F3/8"Male3/8"SteelThreadsBall€83.94
PARKER 3050-3-231 | BX2VRR 3050-3-2313/8"-22°F to +230°F3/8"Female-SteelThreadsBall€74.62
