MOLINE BEARING 49322308 Pillow Block Bearing, 3 1/2 Inch Bore, Fixed, Ductile Iron, 3 3/4 Inch Shaft Height | CT3TXQ

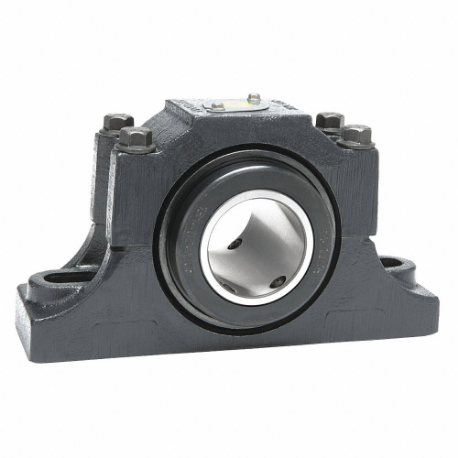

MOLINE BEARING 49322308 Pillow Block Bearing, 3 1/2 Inch Bore, Fixed, Ductile Iron, 3 3/4 Inch Shaft Height

Item: CT3TXQ Model: 49322308Cross Ref: 60JT82
See variants (60)
In Stock
Check Availability

Get it by Monday, Jun 16

€2,976.87 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPillow Block Bearing
ApplicationAggregate And Cement, Air Handling, Baggage Handling, Food Processing, Mining, Paper And Forestry
Base Height2 1/4"
Base Width4.06"
Bearing Housing Material TypeDuctile Iron
Bearing Insert MaterialAlloy Steel
Bearing Insert TypeTapered Roller
Bolt Center To Center Length10 15/16"
Bore Dia.3 1/2"
Bore TypeCylindrical
Dimension H2 1/4"
Dimension J7 15/16"
Dimension L5 5/16"
Dynamic Axial Load Capacity19600 lbf.
Expansion TypeFixed
Features+/-4° Misalignment Capacity, Assembled, Adjusted And Pre-Lubricated In Advance For Immediate Use, Built With Timken Enhanced Dee Tapered Roller Bearings With The Highest Industry Load Ratings, Double-Extended Inner Race, Case Hardened Rollers And Races, Dimensionally Interchangeable With Comparable Type E Units, Moline Split E1000, Moline Me2000 And Me3000, Extended Inner Race Has Two Locking Collars With 65° Set Screw Spacing, Replaceable Solid Cartridge Assembly For Easy Maintenance, Standard V-Guard Nitrile And Teflon Contact Seal Or Balanced Labyrinth Seal, Steel Cartridge Is Black Oxide Coated For Corrosion Protection, Timken Lithium Complex Grease Operating Temperature Is Up To 250°, High Temperature Grease Is Available Up To 350°
Housing MaterialDuctile Iron
Included BearingNon-Expansion Timken Type E Tapered Roller
IncludesNon-Expansion Timken Type E Tapered Roller Bearing
Load DirectionRadial, Thrust
Lubricant MaterialLithium Complex Grease
Max. Angular Misalignment4°
Max. Speed1640 RPM
Max. Temp.250°F
Min. Temp.-40°F
Mount Hole Center-to-center Length10 15/16" , 10.94"
Mount Hole Size1 13/16" , 1.812"
Mounting Bolt Size7/8"
Mounting Surface To Shaft Center3 3/4"
Mounting Surface To Shaft Center (height)3 3/4"
Mounting TypeBolt Through
Number Of Bolts2
Number Of Mounting Holes2
Overall Height7.937"
Overall Length13 3/4"
Overall Width5"
Seal TypeContact
Shaft Locking TypeSet Screws
Static Radial Load Capacity108600 lbf.
System Of MeasurementInch
Width5"
Bearing Material GradeGrade 52100
Bore Diameter3 1/2"
ClosureDouble Sealed
Housing TypeSplit
Maximum Misalignment Angle4°
Maximum Speed1640 RPM
Maximum Temperature250°F
Minimum Temperature-40°F
Mount TypeBolt-Through
Mounting Surface To Shaft Center Height3 3/4"
Number Of Mount Holes2
Split HousingSplit Horizontally

Shipping Info:

Ship weight (kg) 26.6625
Ship height (cm)20.16
Ship length (cm)34.93
Ship width (cm)12.7
Country of OriginUS

Product Variants

ProductModelBore Dia.Overall WidthOverall LengthOverall HeightStatic Radial Load CapacityMax. SpeedDynamic Axial Load CapacityBase HeightPrice
MOLINE BEARING 19321108 Pillow Block Bearing, 1 1/2 Inch Bore, Expansion, Cast Iron, 2 1/8 Inch Shaft Height | CT3TUU 193211081 1/2"3 3/8"7 7/8"4 1/4"33000 lbf.2800 RPM7860 lbf.1 1/4"€573.85
MOLINE BEARING 49322108 Pillow Block Bearing, 1 1/2 Inch Bore, Fixed, Ductile Iron, 2 1/8 Inch Shaft Height | CT3TUV 493221081 1/2"3.38"7 3/4"4.687"33000 lbf.2800 RPM7860 lbf.1 1/4"€929.30
MOLINE BEARING 19321104 Pillow Block Bearing, 1 1/4 Inch Bore, Expansion, Cast Iron, 1 1/2 Inch Shaft Height | CT3TUX 193211041 1/4"2 7/8"6 1/4"3"15760 lbf.3800 RPM3810 lbf.22/25"€486.86
MOLINE BEARING 19321111 Pillow Block Bearing, 1 11/16 Inch Bore, Expansion, Cast Iron, 2 1/8 Inch Shaft Height | CT3TVA 193211111.688"3 3/8"7 7/8"4 1/4"33000 lbf.2800 RPM7860 lbf.1 1/4"€623.67
MOLINE BEARING 19321115 Pillow Block Bearing, 1 15/16 Inch Bore, Expansion, Cast Iron, 2 1/4 Inch Shaft Height | CT3TVD 193211151.938"8 7/8"8 7/8"3 1/2"43000 lbf.2650 RPM10300 lbf.1.31"€624.51
MOLINE BEARING 49322115 Pillow Block Bearing, 1 15/16 Inch Bore, Fixed, Ductile Iron, 2 1/4 Inch Shaft Height | CT3TVE 493221151.938"3 1/2"8 7/8"5"43000 lbf.2650 RPM10300 lbf.1.31"€1,010.92
MOLINE BEARING 19321103 Pillow Block Bearing, 1 3/16 Inch Bore, Expansion, Cast Iron, 1 1/2 Inch Shaft Height | CT3TVH 193211031.188"2 7/8"6 1/4"3"15760 lbf.3800 RPM3810 lbf.22/25"€483.60
