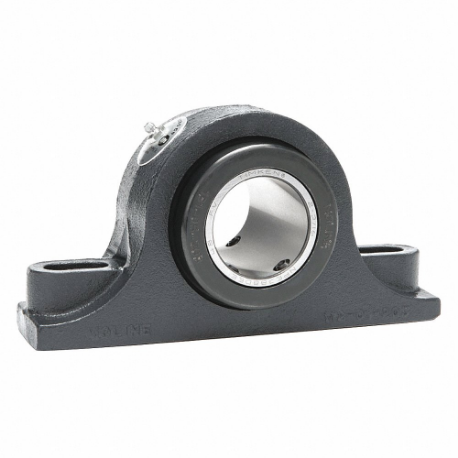

MOLINE BEARING 19321112 Pillow Block Bearing, 1 3/4 Inch Bore, Expansion, Cast Iron, 2 1/4 Inch Shaft Height | CT3TVL

MOLINE BEARING 19321112 Pillow Block Bearing, 1 3/4 Inch Bore, Expansion, Cast Iron, 2 1/4 Inch Shaft Height

Item: CT3TVL Model: 19321112Cross Ref: 60JR28
See variants (60)
In Stock
Check Availability

Get it by Thursday, Jun 12

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€767.83 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPillow Block Bearing
ApplicationAggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening , Aggregate, Conveying, Cranes, Forestry, Mining, Oil, Gas, Power Generation, Screening
Base Height1.31"
Base Width2 1/2"
Bearing Housing Material TypeCast Iron
Bearing Insert MaterialAlloy Steel
Bearing Insert TypeTapered Roller
Bolt Center To Center Length6 11/16"
Bore Dia.1 3/4"
Bore TypeCylindrical
Dimension H1 5/16"
Dimension J4 1/2"
Dimension L3 1/8"
Dynamic Axial Load Capacity10300 lbf.
Expansion TypeExpansion
FeaturesAssembled, Adjusted And Pre-Lubricated In Advance For Immediate Use, Built With Timken Enhanced Dee Tapered Roller Bearings With The Highest Industry Load Ratings, Double-Extended Inner Race, Case Hardened Rollers And Races, Close Fit Oversized Collars Act As Flingers For Additional Protection In Dusty Or Damp Environments, Dimensionally Interchangeable With Comparable Type E Units, Moline Split E1000, Moline Me2000 And Me3000, Extended Inner Race Has Two Locking Collars With 65° Set Screw Spacing, Misalignment = .010 In Per Foot Of Shaft, Standard V-Guard Nitrile And Teflon Contact Seal Or Balanced Labyrinth Seal, Timken Lithium Complex Grease Operating Temperature Is Up To 250°, High Temperature Grease Is Available Up To 350°
Housing MaterialCast Iron
Included BearingTimken Type E Tapered Roller
IncludesTimken Type E Tapered Roller Bearing
Load DirectionRadial, Thrust
Lubricant MaterialLithium Complex Grease
Max. Speed2650 RPM
Max. Temp.250°F
Min. Temp.-40°F
Mount Hole Center-to-center Length6 11/16" , 6.69"
Mount Hole Size1 5/16" , 1.312"
Mounting Bolt Size5/8"
Mounting Surface To Shaft Center2 1/4"
Mounting Surface To Shaft Center (height)2 1/4"
Mounting TypeBolt Through
Number Of Bolts2
Number Of Mounting Holes2
Overall Height3 1/2"
Overall Length8 7/8"
Overall Width8 7/8"
Seal TypeContact
Shaft Locking TypeSet Screws
Static Radial Load Capacity43000 lbf.
System Of MeasurementInch
Width8 7/8"
Bearing Material GradeGrade 52100
Bore Diameter1 3/4"
ClosureDouble Sealed
Housing TypeSolid
Maximum Speed2650 RPM
Maximum Temperature250°F
Minimum Temperature-40°F
Mount TypeBolt-Through
Mounting Surface To Shaft Center Height2 1/4"
Number Of Mount Holes2

Shipping Info:

Ship weight (kg) 9.945
Ship height (cm)8.89
Ship length (cm)22.54
Ship width (cm)22.54
Country of OriginUS

Product Variants

ProductModelBore Dia.Overall WidthOverall LengthOverall HeightStatic Radial Load CapacityMax. SpeedDynamic Axial Load CapacityBase HeightPrice
MOLINE BEARING 19321108 Pillow Block Bearing, 1 1/2 Inch Bore, Expansion, Cast Iron, 2 1/8 Inch Shaft Height | CT3TUU 193211081 1/2"3 3/8"7 7/8"4 1/4"33000 lbf.2800 RPM7860 lbf.1 1/4"€573.85
MOLINE BEARING 49322108 Pillow Block Bearing, 1 1/2 Inch Bore, Fixed, Ductile Iron, 2 1/8 Inch Shaft Height | CT3TUV 493221081 1/2"3.38"7 3/4"4.687"33000 lbf.2800 RPM7860 lbf.1 1/4"€929.30
MOLINE BEARING 19321104 Pillow Block Bearing, 1 1/4 Inch Bore, Expansion, Cast Iron, 1 1/2 Inch Shaft Height | CT3TUX 193211041 1/4"2 7/8"6 1/4"3"15760 lbf.3800 RPM3810 lbf.22/25"€486.86
MOLINE BEARING 19321111 Pillow Block Bearing, 1 11/16 Inch Bore, Expansion, Cast Iron, 2 1/8 Inch Shaft Height | CT3TVA 193211111.688"3 3/8"7 7/8"4 1/4"33000 lbf.2800 RPM7860 lbf.1 1/4"€623.67
MOLINE BEARING 19321115 Pillow Block Bearing, 1 15/16 Inch Bore, Expansion, Cast Iron, 2 1/4 Inch Shaft Height | CT3TVD 193211151.938"8 7/8"8 7/8"3 1/2"43000 lbf.2650 RPM10300 lbf.1.31"€624.51
MOLINE BEARING 49322115 Pillow Block Bearing, 1 15/16 Inch Bore, Fixed, Ductile Iron, 2 1/4 Inch Shaft Height | CT3TVE 493221151.938"3 1/2"8 7/8"5"43000 lbf.2650 RPM10300 lbf.1.31"€1,010.92
MOLINE BEARING 19321103 Pillow Block Bearing, 1 3/16 Inch Bore, Expansion, Cast Iron, 1 1/2 Inch Shaft Height | CT3TVH 193211031.188"2 7/8"6 1/4"3"15760 lbf.3800 RPM3810 lbf.22/25"€483.60
