MITUTOYO 500-170-30 Absolute Digital Caliper 0 To 4 Inch | AD6XPT 4CGK4

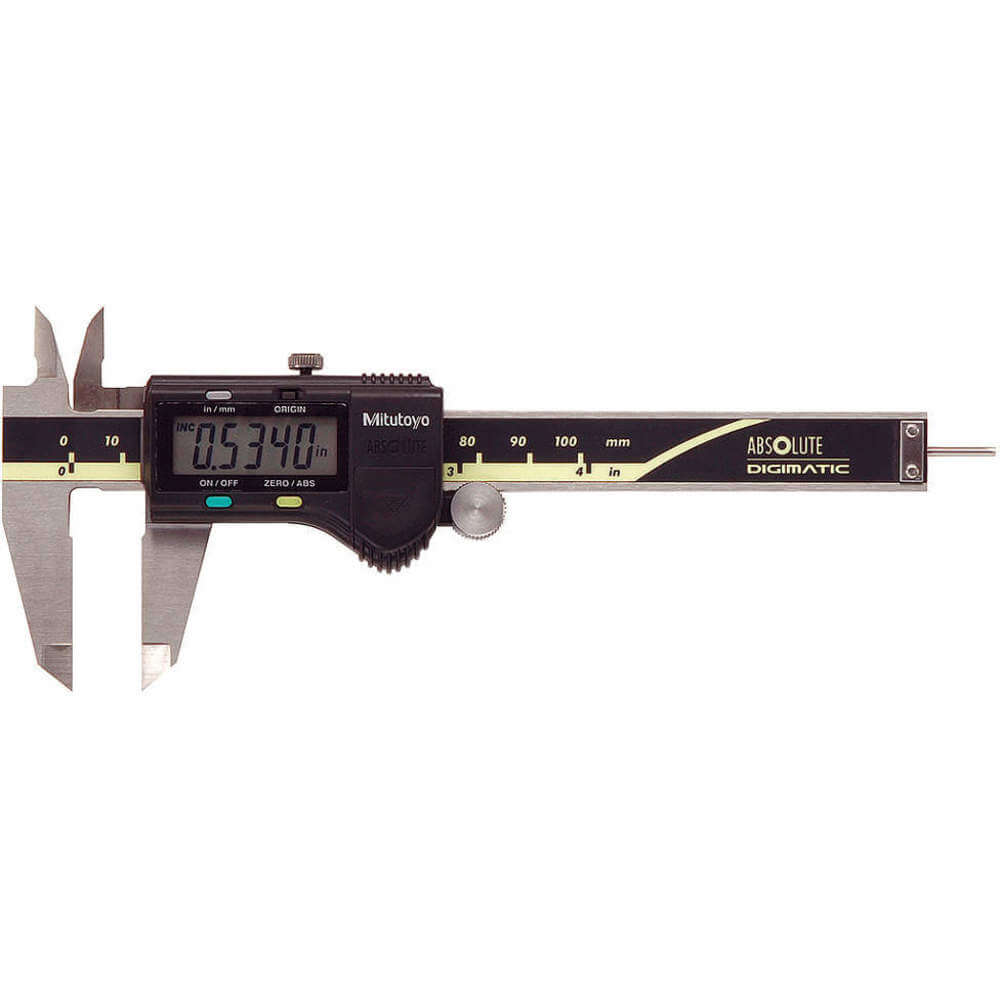

MITUTOYO 500-170-30 Absolute Digital Caliper 0 To 4 Inch

Item: AD6XPT Model: 500-170-30Cross Ref: 4CGK4
See variants (28)
In Stock
Check Availability

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€286.76 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemAbsolute Electronic Digital Caliper
Absolute PositioningYes
Accuracy-0.001" to +0.001"
Battery IncludedYes
Calibration CertificateNo
Caliper GroupingDigital Caliper
Caliper MaterialStainless Steel
CaseFitted Plastic
Case MaterialPlastic
Case TypePlastic Case
Coolant ResistantNo
Data Output Connection TypeDigimatic
Data Output TypeCabled
Depth Rod ShapeRound
Dust ResistantYes
FunctionOrigin-Set, Zero, Data Output, Inch/Mm, Alarm Low Voltage, Counting Value Composition Error
Graduations (upper Scale)4"
Included CertificationCertificate Of Inspection
Includes CaseYes
Ip RatingNot Rated
Jaw Actuation TypeThumb Wheel
Jaw Depth1.57"
Jaw Depth Upper Jaw21/32"
Jaw MaterialStainless Steel
Left-handed OperationNo
Linear Encoder TypeElectrostatic Capacitance
Long Form Calibration CertificateNo
MaterialStainless Steel
Max. Measurement4"
Measures DepthYes
Measures Inside DimensionYes
Measures Outside DimensionYes
Measures StepYes
Range0" to 4"
Spc OutputYes
System Of MeasurementImperial/Metric
Water ResistantNo
With Locking NutYes
Battery SizeSR44
Compatible Spc CableMfr. No. 959149, Mfr. No. 959150
Dimension TypeInch, Metric
Display TypeLCD
FunctionsOrigin-Set, Zero, Data Output, in./mm, Alarm: Low Voltage, Counting Value Composition Error
Graduations - Lower Scale0"
Graduations - Upper Scale4"
Includes BatteryYes
Jaw Depth - Upper Jaw21/32"
Jaw ShapeStandard
Maximum Measurement - Inch4"
Maximum Measurement - Mm100 mm
Measurements4-Way
Minimum Measurement - Fractional Inch0"
Minimum Measurement - Inch0"
Minimum Measurement - Mm0 mm
Repeatability0.0005"/0.01 mm
Resolution0.0005"

Shipping Info:

Ship weight (kg) 0.1823
Ship height (cm)3.81
Ship length (cm)26.67
Ship width (cm)11.43
HS code9017304000
Country of OriginJP

Product Details:

Mitutoyo 500-170-30 absolute digital caliper is designed to provide accurate, inside dimension, repeatable outside dimension, depth & step measurements with accuracy and unrestricted speed. This Mitutoyo 4 inch digital caliper is used in research centres, woodworking stations, carpentry units and mathematical / engineering centres to measure precise reading of objects.

Features:

  • This Mitutoyo digital caliper comes with an LCD screen to show the readings in low-light conditions.
  • It features AOS (Advanced Onsite Sensor) induction type encoder for use in top-of-the-line ABS coolant-proof calipers.
  • This digital caliper comes with an electromagnetic induction type ABS encoder without the concern for contamination on the scale face during measurement.
  • It has an ABS (absolute) scale that needs no origin setting after powering on and can operate without any limit to response speed.
  • This Mitutoyo 4 inch digital caliper offers a detection signal that is not affected by dirt (water and oil) on the surface of a scale.

Compatible Accessories:

  • Mitutoyo 959143 Datahold Computer Cable: This computer cable is a part of the data hold unit which retains the measurement reading after the jaws are opened.

Frequently Asked Questions:

Q. Which type of linear encoder is used in this digital caliper?

A. Electrostatic capacitance.

Q. What is this caliper made of?

A. Mitutoyo 500-170-30 absolute digital caliper has stainless steel construction to resist corrosion on exposed surfaces.

Q. Which battery is used in this Mitutoyo 4 inch digital caliper?

A. SR44 battery.

Product Variants

ProductModelRangeAccuracyMaterialJaw DepthCaseJaw Actuation TypeCase TypeSpc OutputPrice
MITUTOYO 500-172-30CERT Absolute Digital Caliper 0 To 8 Inch | AA8YCU 1ARG2 500-172-30CERT0" to 8"-0.001" to +0.001"Stainless Steel1.97"Molded Plastic-Plastic CaseYes€397.08
MITUTOYO 500-195-30 Absolute Digital Caliper 0 To 4 Inch | AA8YCV 1ARG3 500-195-300" to 4"-0.001" to +0.001"Stainless Steel1.57"Molded PlasticThumb WheelPlastic CaseNo€193.47
MITUTOYO 500-195-30CERT Absolute Digital Caliper 0 To 4 Inch | AA8YCW 1ARG4 500-195-30CERT0" to 4"-0.001" to +0.001"Stainless Steel1.57"Molded Plastic-Plastic CaseNo€244.68
MITUTOYO 500-197-30 Absolute Digital Caliper 0 To 8 Inch | AB4PZE 1ZRR3 500-197-300" to 8"-0.001" to +0.001"Stainless Steel1 31/32"Molded PlasticThumb WheelPlastic CaseNo€209.88
MITUTOYO 500-197-30CERT Absolute Digital Caliper 0 To 8 Inch | AB4PZF 1ZRR4 500-197-30CERT0" to 8"-0.001" to +0.001"Stainless Steel1.97"Molded Plastic-Plastic CaseNo€321.50
MITUTOYO 500-506-10 Absolute Digital Caliper 0 To 24 Inch | AB4PZG 1ZRR5 500-506-100" to 24"-0.002" to +0.002"Stainless Steel3.54"Molded PlasticSlidePlastic CaseYes€1,141.85
MITUTOYO 500-506-10CERT Absolute Digital Caliper 0 To 24 Inch | AB4PZH 1ZRR6 500-506-10CERT0" to 24"-0.002" to +0.002"Stainless Steel3.54"Fitted Plastic-Plastic CaseYes€1,324.64
