MIDWEST INSTRUMENTS 140-AA-00-O(AA)-50P Nema 4x Dp Switch 3000 Psi 0 To 50 Psid | AB6QHE 22A580

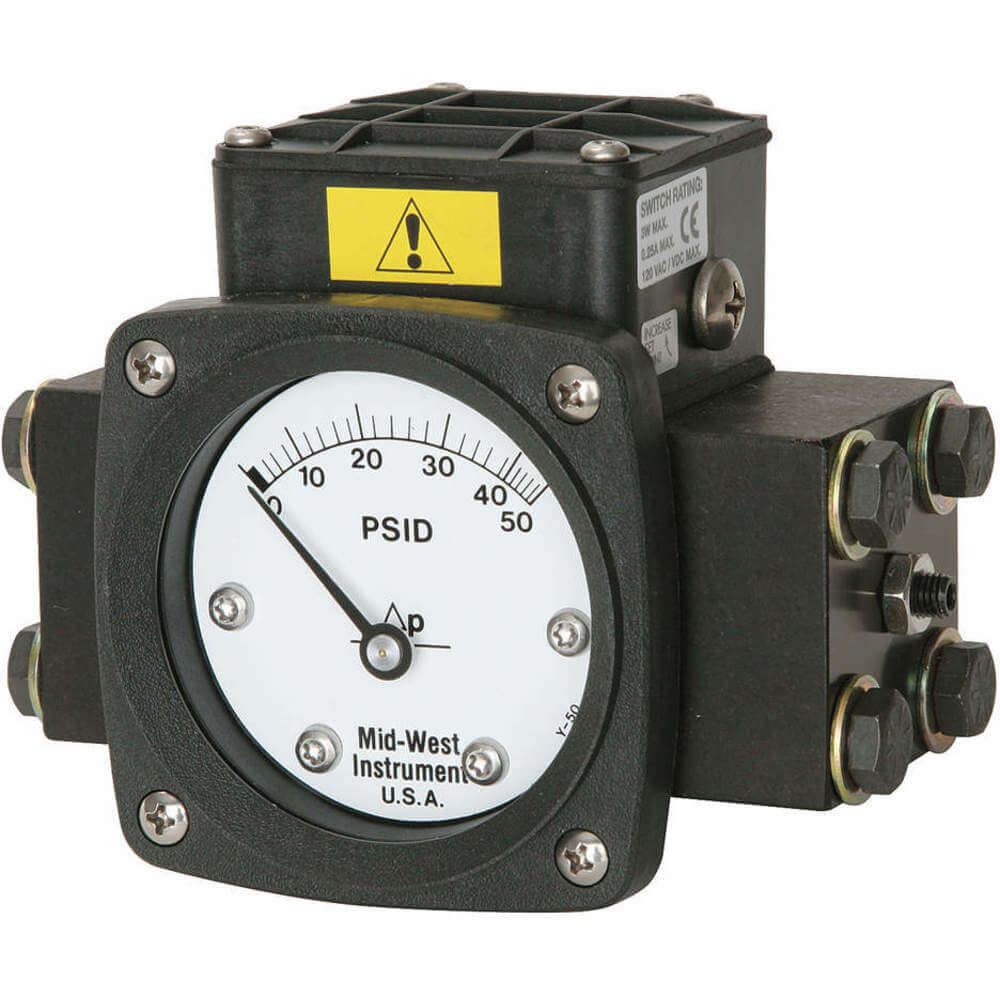

MIDWEST INSTRUMENTS 140-AA-00-O(AA)-50P Nema 4x Dp Switch 3000 Psi 0 To 50 Psid

Item: AB6QHE Model: 140-AA-00-O(AA)-50PCross Ref: 22A580
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€685.66 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDifferential Pressure Gauge
Ambient Operating Temperature Range-40°F to +200°F
Amps Ac0.25A
Connection Size1/4"
Dial MaterialEngineered Plastic
Dial Size2 1/2"
Diaphragm MaterialBuna N
Differential Pressure Range0 psid to 50 psid
Housing MaterialAluminum
Piston MaterialStainless Steel
Pressure Range Minor Div.2 lbs.
Rated Total Pressure3000 psi
Relay TypeSPDT
Scale TypePSID
Seal MaterialBuna N
Accuracy+/-2%
Adjustable Set PointsYes
ApplicationCompressors, Filtration Monitoring, Hydraulics, Pressure Detection, Pumps, Refrigeration
Case Depth0.78"
Case Diameter3 5/16"
Case MaterialPlastic
For Panel Cut-out Size3"
Hazardous Location RatingClass 1, Division 2, Groups A, B, C, D, Class 2, Division 2, Groups F, G
Includes Calibration CertificateNo
Includes Mounting HardwareNo
Ip/nema RatingIP65, NEMA 4X
Lens MaterialAcrylic
Manufacturer Warranty Length5 yrs.
Maximum Working Static Pressure3000 psig
Nominal Dial Size2 1/2"
Number Of Switches1
O-ring MaterialBuna N
Over-pressure Limit0 psi, 6 psi
Pressure Gauge TypeDifferential Pressure Gauge with Switch
Pressure Range0 psi to 50 psid
Process Connection GenderFemale
Process Connection LocationBack
Process Connection Size1/4"
Process Connection TypeNPT
Sensor MaterialBuna N
Sensor TypeDiaphragm
Series140 Series
StandardsASME B40.1 GRADE B, ASME B40.1 GRADE D, CE, CSA, NEMA 4X, UL LISTING
Switch Contact TypeSPDT
Switch Electrical Requirements125V AC/DC, 3W, 0.25A
Wetted Parts MaterialPTFE, Buna-N

Shipping Info:

Ship weight (kg) 1.35
Ship height (cm)35.56
Ship length (cm)22.86
Ship width (cm)17.78
HS code9026208000
Country of OriginUS

Product Variants

ProductModelDifferential Pressure RangeDial SizeHousing MaterialPressure Range Minor Div.Scale TypeDial MaterialRated Total PressureConnection SizePrice
MIDWEST INSTRUMENTS 140-AA-00-O(AA)-30P Nema 4x Dp Switch 3000 Psi 0 To 30 Psid | AB6QHD 22A579 140-AA-00-O(AA)-30P0 psid to 30 psid2 1/2"Aluminum1 lbs.PSIDEngineered Plastic3000 psi1/4"€624.82
MIDWEST INSTRUMENTS 140-AA-00-O(AA)-100P Nema 4x Dp Switch 3000 Psi 0 To 100 Psid | AB6QHF 22A581 140-AA-00-O(AA)-100P0 psid to 100 psid2 1/2"Aluminum5 lbs.PSIDEngineered Plastic3000 psi1/4"€624.82
MIDWEST INSTRUMENTS 140-SA-00-O(AA)-30P Nema 4x Dp Switch 3000 Psi 0 To 30 Psid | AB6QHP 22A589 140-SA-00-O(AA)-30P0 psid to 30 psid2 1/2"Stainless Steel1 lbs.PSIDEngineered Plastic3000 psi1/4"€1,052.81
MIDWEST INSTRUMENTS 140-SA-00-O(AA)-50P Nema 4x Dp Switch 3000 Psi 0 To 50 Psid | AB6QHQ 22A590 140-SA-00-O(AA)-50P0 psid to 50 psid2 1/2"Stainless Steel2 lbs.PSIDEngineered Plastic3000 psi1/4"€1,052.81
MIDWEST INSTRUMENTS 140-SA-00-O(AA)-100P Nema 4x Dp Switch 3000 Psi 0 To 100 Psid | AB6QHR 22A591 140-SA-00-O(AA)-100P0 psid to 100 psid2 1/2"Stainless Steel5 lbs.PSIDEngineered Plastic3000 psi1/4"€970.94
MIDWEST INSTRUMENTS 140-AA-00-OO-30P Differential Pressure Gauge 0 To 30 Psid | AC9JJB 3GVE2 140-AA-00-OO-30P0 psi to 30 psi2 1/2"Aluminum1 psiPressurePlastic3000 psi1/4"€454.77
MIDWEST INSTRUMENTS 140-AA-00-OO-50P Differential Pressure Gauge 0 To 50 Psid | AC9JJC 3GVE3 140-AA-00-OO-50P0 psi to 50 psi2 1/2"Aluminum2 psiPressurePlastic3000 psi1/4"€454.77
