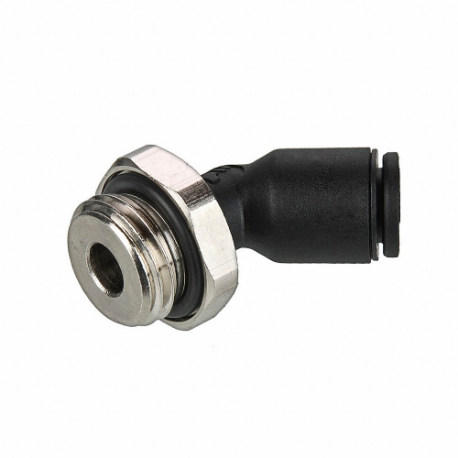

LEGRIS 3133 53 20 Nylon, Push-to-Connect x UNF, 1/8 Inch Tube OD, 3/16 Inch Pipe Size | CN8FXG

LEGRIS 3133 53 20 Nylon, Push-to-Connect x UNF, 1/8 Inch Tube OD, 3/16 Inch Pipe Size

Item: CN8FXG Model: 3133 53 20Cross Ref: 791T12
In Stock

Get it by Tuesday, Jun 10

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€11.08 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemFitting
ApplicationAir, Cutting Fluids, Inert Gases, Vacuum
ColorBlack
Compatible Tube Hardness95 Shore A
Compatible Tube MaterialFluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon
Fitting Side A Connection TypePush To Connect
Fitting Side A Tube Outer Diameter1/8"
Fitting Side B Connection TypeUNF
Fitting Side B Pipe Size0.188"
Length0.906"
MaterialNylon
Max. Operating Pressure290 psi
Max. Operating Temp.175°F
Min. Operating Temp.-4°F
Release Ring MaterialStainless Steel
Release TypeRing
Resistance PropertiesChemical Resistant, Corrosion Resistant
Specific Fitting Angle45°
Specific Fitting ShapeElbow Adapter
Sub-brandLf3000(R)
System Of MeasurementImperial
Thread Size#10-32
Vacuum Rating28 in. hg
Fitting MaterialNylon
Includes Pre-applied Thread SealantYes
Maximum Operating Pressure290 psi
Overall Length29/32"

Shipping Info:

Ship weight (kg) 0.0023
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
