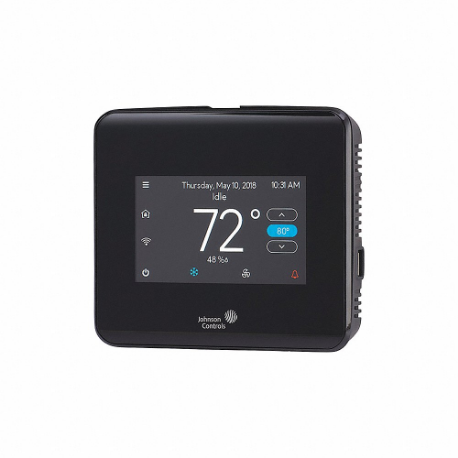

| Item | Low Voltage Thermostat |
| Amps | 1A |
| Application | Heat And Cool |
| Backlit Screen | Yes |
| Backlit Type | Touch Activated |
| Battery Type | Hardwired |
| Color | Black |
| Compatible System Type | Heat Pumps With Aux, Rtu'S |
| Compatible With Building Automation Systems | Yes |
| Control Output | Single Stage RTU/Heat Pump With Economizer |
| Control Type | Touch Screen |
| Dehumidification Control | No |
| Electrical Connection Type | Hardwired |
| Enclosure Color | Black |
| Fan Settings | High Med Low Auto Quiet |
| Filter Change Reminder | Yes |
| Frequency | 50/60 Hz |
| Housing Color | Black |
| Humidification Control | No, Yes , Yes |
| Includes | USB Port Configuration |
| Includes Batteries | No |
| Lead Wire Gauge | 18 ga., 22 ga. |
| Max. Operating Temp. | 122°F |
| Maximum Temperature Control | 100°F |
| Min. Operating Temp. | 32°F |
| Minimum Temperature Control | 40°F |
| Mounting Location | Wall |
| Network Protocol Compatibility | Bacnet MS/TP, N2 |
| Number Of Cooling Stages (conventional System) | 1 |
| Number Of Cooling Stages (heat Pump System) | 2 |
| Number Of Heating Stages (conventional System) | 2 |
| Number Of Heating Stages (heat Pump System) | 2 |
| Number Of Pipes | 2 |
| Number Of Relay Control Output | 1 |
| Number Of Relay Inputs | 1 |
| Occupancy Sensor | Compatible With Occupancy Sensor |
| Occupancy Sensor Compatibility | No |
| Overall Depth | 1 7/16" , 1.438" |
| Overall Height | 4 3/4" |
| Overall Width | 5 5/8" |
| Programming Capability | 7-Days, Not Programmable |
| Remote Control Functions | On/Off And Temperature Control |
| Screen Height | 1 7/16" , 1.438" |
| Screen Width | 4 3/4" |
| Sensor Length | 15 ft. |
| Sensor Location | Built In |
| Sensor Type | Occupancy Sensor |
| Smart Connectivity | No Connectivity |
| Stages Cool | 2 |
| System Settings | Auto-Heat-Cool-Off |
| Temp. Sensitivity | -0.9°F to +0.9°F |
| Temp. Settings Per Day | 0 |
| Temperature Adjustment | Single, Two Stage |
| Temperature Scale | Celsius, Fahrenheit |
| Terminal Designations | 0-10V DC, BI1, BI2, COS, OAT, R SEN, SAT |
| Thermostat Type | Low Voltage |
| Voltage | 19-30V AC |
| Wifi Capability | No |
| Wireless | Wireless |
| Amperage | 1A |
| Contact Rating | 19-30V AC |
| Humidification/dehumidification Control | Yes, No |
| Key Features | Auto-Tuned Control Loops, End-of-line Switch, Integral Humidity Sensor, Programmable in Seven Languages, Two Configurable Binary Inputs, USB Port Configuration |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | 32°F |
| Number Of Cooling Stages - Conventional System | 1 |
| Number Of Cooling Stages - Heat Pump System | 2 |
| Number Of Heating Stages - Conventional System | 2 |
| Number Of Heating Stages - Heat Pump System | 2 |
| Number Of Relay Inputs/outputs | 1/1 |
| Number Of Relay Outputs | 1 |
| Standards | BACNET INTERNATIONAL, CE, FCC COMPLIANT TO CFR 47, RCM MARK, TRANSMISSION COMPLIES WITH FCC PART 15.247, UL LISTED, UL60730 |
| Temperature Sensitivity | +/-0.9°F |
