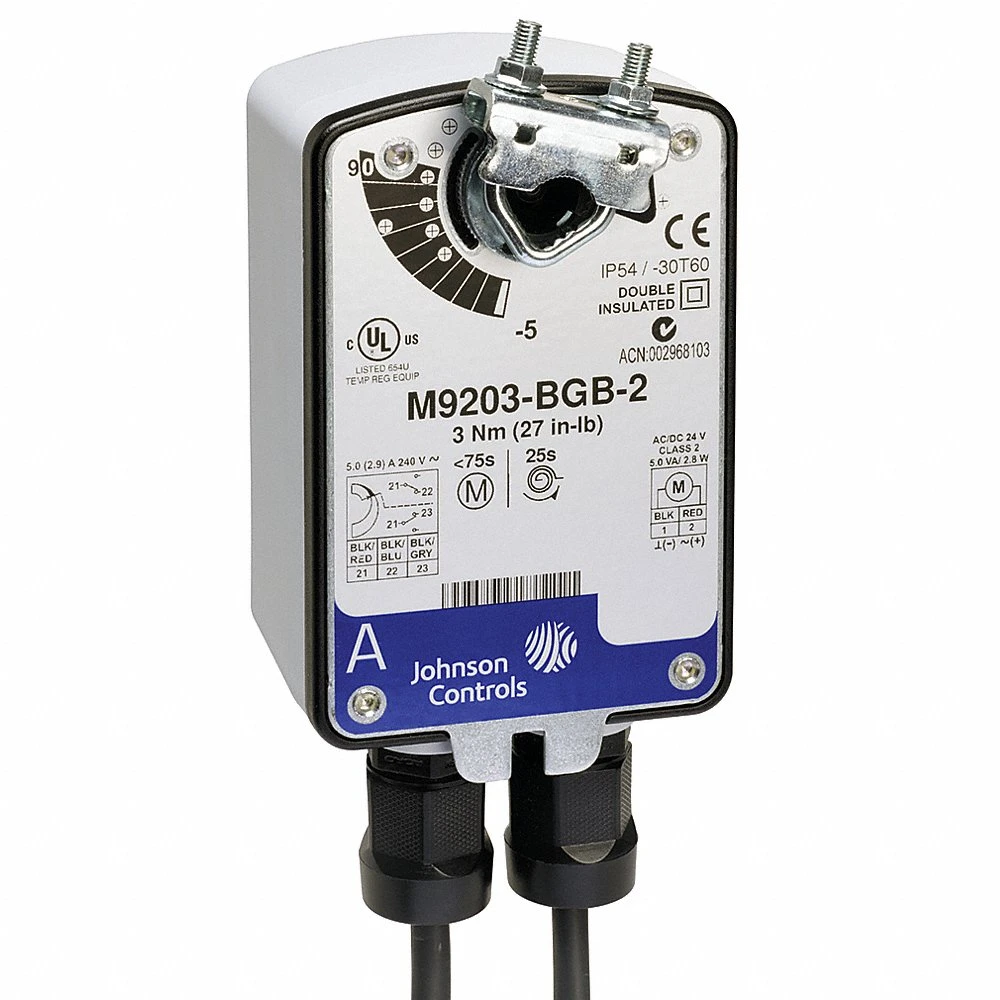

JOHNSON CONTROLS M9203-BUB-2 Actuator On/off 27 Torque | AD4HJL 41P557

JOHNSON CONTROLS M9203-BUB-2 Actuator On/off 27 Torque

Item: AD4HJL Model: M9203-BUB-2Cross Ref: 41P557
In Stock

Get it by Tuesday, Jun 17

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€362.01 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemElectric Actuator
Ambient Temp. Range140°F
ApplicationDampers
Depth2 1/4"
Electrical Connection TypeHardwired
Electrical ConnectionsCable
For Shaft Dia.1/2"
For Shaft HeightNot Applicable
For Shaft ShapeRound
For Shaft WidthNot Applicable
For Use With Building Automation SystemsBuilding Automation System Compatible
Height6 3/8"
IncludesAnti-Rotation Bracket
Mounting TypeDirect , Direct Mount
Number Of Auxiliary Switches1
Overall Depth2 1/4"
Overall Height6 3/8"
Overall Width3 1/4"
Plenum RatingPlenum Rated
Power Consumption5 VA
Power Rating2.8 W
Replaces Honeywell MotorsMS4103A1130
Spring ReturnSpring Return , Yes
Stroke Deg.90°
Switch TypeOne SPDT
Time To Close60 sec.
Timing75 sec.
Torque27 lbs.-in.
TypeSpring Return
Valve ApplicationDamper
Voltage85-264V AC
Width3 1/4" , 3 15/16"
Contact FormSPDT
Control SignalOn/Off
For Shaft Diameter1/2"
Input Voltage85-264V AC
Ip RatingIP54
Maximum Operating Temperature140°F
Minimum Operating Temperature-22°F
Nema Rating2
Product TypeActuator
Rated Torque27 lbs.-in.
Return ActionSpring Return
Shaft RotationCW/CCW
Standards60730-1:02-CAN/CSA, C-TICK MARK AUSTRALIA, C22.2 NO. 24-93, CE CERTIFIED, CE CERTIFIED EMC DIRECTIVE 2004/108/EC, CSA CERTIFIED, GUIDE NO. XAPX FOR USA AND CANADA, LOW VOLTAGE DIRECTIVE 2006/95/EC, NZ EMISSIONS COMPLIANT, UL LISTED, UL LISTED 60730-1A: 2003-08, ED. 3.1, UL LISTED 60730-2-14: 2002-02, ED. 1, PART 2, UL LISTED E4436
Stroke Degree95°
System ApplicationDampers

Shipping Info:

Ship weight (kg) 1.2375
Ship height (cm)16.19
Ship length (cm)5.72
Ship width (cm)10
HS code8501104060
Country of OriginMX
