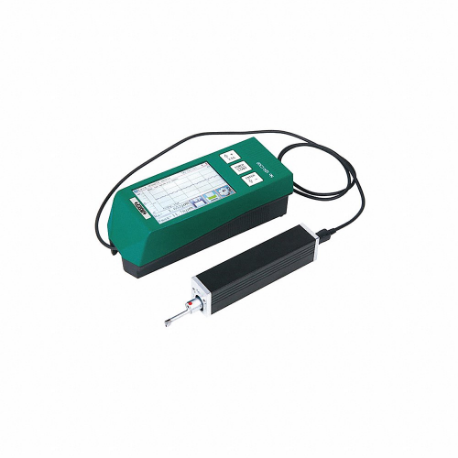

INSIZE ISR-C300 Portable Surface Roughness Tester With External Display, Sr300, 5 Um Probe Tip Radius | CR4ULK

INSIZE ISR-C300 Portable Surface Roughness Tester With External Display, Sr300, 5 Um Probe Tip Radius

Item: CR4ULK Model: ISR-C300Cross Ref: 54XJ13
See variants (4)
In Stock
Check Availability

Get it by Monday, Jun 16

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€3,906.33 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemSurface Roughness Tester
Analysis GraphYes
Battery IncludedNo
Battery Voltage9V
Compatible Memory CardNone
Compatible Wireless TransmitterBluetooth
Data Export FormatsExcel
Detector Measuring Force4 mN
Dimensions (display Unit)6.22" x 2.52" x 2.05"
Dimensions (drive Unit)6.22" x 2.52" x 2.05"
Display Size3.54"
Drive UnitTraverse
Drive Unit PrincipleTraverse
FeaturesData Can Be Output To Excel By Connecting With Compute, 22 Roughness Parameters
IncludesCalibration Block And Support, Magnetic Stand Adapter, Adjustable Stand, Touch Pen, Usb, Software, Memory Of Maximum 100 Data, Waveform
Includes CaseNo
Includes PrinterNo
Ip RatingNot Rated
Max. Operating Temp.104°F
Measuring Condition StandardsANSI, ISO-4287, JISB0601, ISO-12085, JIS-B0631
Memory Storage Capacity100
Min. Operating Temp.-4°F
Number Of Parameters Measured22
Number Of Sampling Spans1, 2, 3, 4, 5
Operating PositionHorizontal/Vertical
Operating Temp. Range-4°F to +104°F
Probe PositionsAxial
Probe Sensor TypeInductive
Probe Tip Radius5 µm
Profile Resolution0.01µin.
Spc OutputYes
Transverse Cutoff Length0.01"
Data Output Connection TypeUSB, Bluetooth
Data Output TypeCable, Wireless
Dimensions - Display Unit6.22" x 2.52" x 2.05"
Dimensions - Drive Unit6.22" x 2.52" x 2.05"
Display FunctionsAnalysis Graph, Language Selection, Standard Selection, Print & Export Data, Save Data, Select Sampling Length
Display Screen Size3.54"
Includes BatteryNo
Maximum Operating Temperature - C40°C
Maximum Operating Temperature - F104°F
Measuring Range689µin. to 12598µin., 6299µin. to 6299µin.
Measuring Range (in.)689µin. to 12598µin., 6299µin. to 6299µin.
Measuring Range (mm)0.32 mm
Measuring Range Ra0.005 μm to 30 μm
Measuring Range Rz0.02 μm to 320 μm
Minimum Operating Temperature - C-20°C
Minimum Operating Temperature - F-4°F
Operating Temperature Range-4°F to +104°F
Parameters MeasuredMr1, Mr2, R3y, R3z, Ra, Rc, Rk, Rku, Rmax, Rp, Rpc, Rpk, Rq, Rs, Rsk, Rsm, Rt, Rv, Rvk, Ry, Rz, Rz (JIS)
Power Supply9V Battery
Product TypePortable Surface Roughness Tester with External Display
Sampling Length0.01", 0.03", 0.1"
Tester SeriesSeries SR300

Shipping Info:

Ship weight (kg) 1.593
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelDrive Unit PrincipleDetector Measuring ForceProbe Tip RadiusNumber Of Sampling SpansTransverse Cutoff LengthSampling LengthNumber Of Parameters MeasuredProfile ResolutionPrice
INSIZE ISR-C002 Handheld Surface Roughness Tester, Handheld Surface Roughness Tester, Insize C002 | CR4ULH ISR-C002Skid2.78 mN5 µm1, 2, 3, 4, 50.01"1/5"210.01µin.€3,152.48
INSIZE ISR-S400 Handheld Surface Roughness Tester, Handheld Surface Roughness Tester, Insize S1000B | CR4ULJ ISR-S400Skid0.83 mN5 µm1, 2, 3, 4, 50.01"0.63"120.01µin.€6,432.47
INSIZE ISR-C003 Portable Surface Roughness Tester With Onboard Display, Insize C003 | CR4ULL ISR-C003Skid3.34 mN10 µm30.01"1/5"40.01 µin.€2,417.69
INSIZE ISR-S1000B Portable Surface Roughness Tester With Onboard Printer, Sr400, 5 Um Probe Tip Radius | CR4ULM ISR-S1000BSkid0.83 mN5 µm1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 190.003"1.97"480.01µin.€23,050.23
