INGERSOLL-RAND SD20S-CSS-SMM-A | BP6LQZ

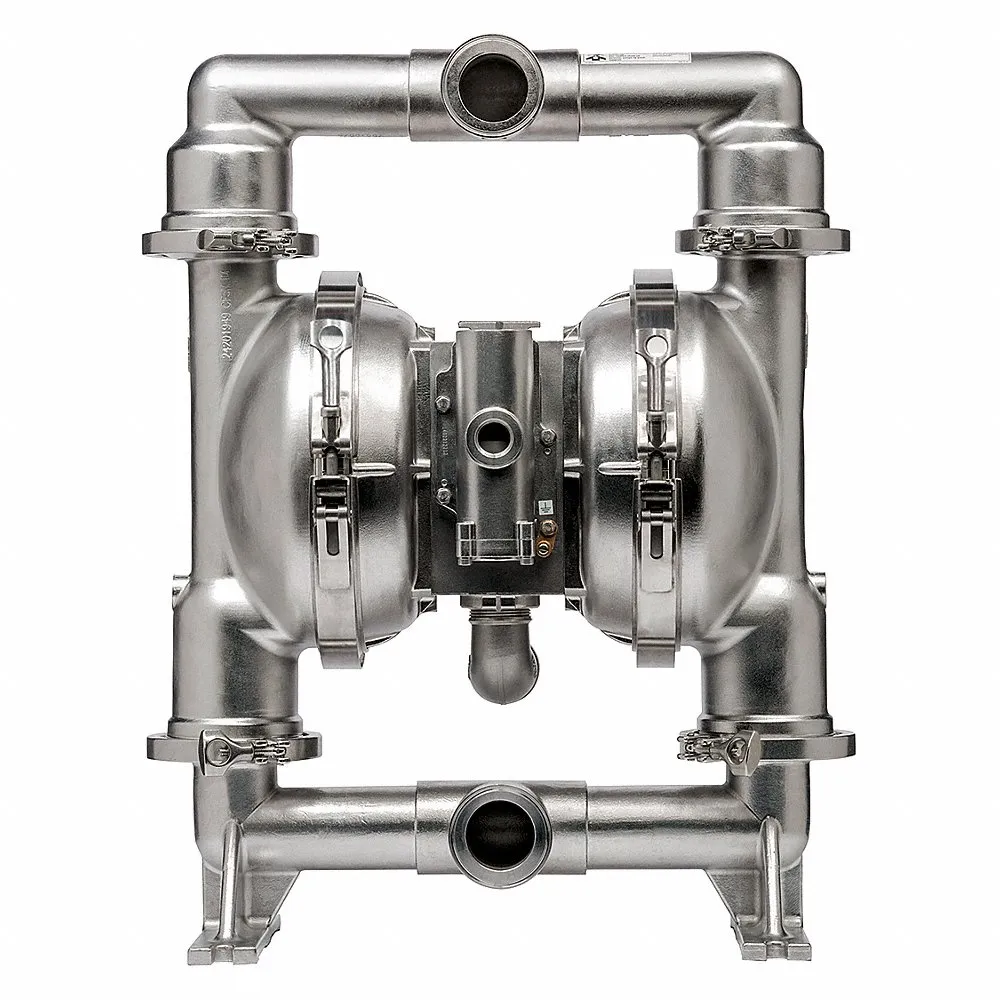

INGERSOLL-RAND SD20S-CSS-SMM-A Double Diaphragm Pump, Tri-Clamp, TPV/SStl, 2 Inch, 54gpm

Item: BP6LQZ Model: SD20S-CSS-SMM-ACross Ref: 49AV35
Limited Availability
€19,055.08 /unit
Request a Quote

Payment

Delivery

Product Specifications:

Air Inlet2" Tri Clamp
Check Seat Material316 Stainless Steel
Diaphragm MaterialSantoprene
Display Qty1
Fluid Discharge Connection2" Tri-Clamp
Fluid Intake Connection2" FNPT
Housing Material316 Stainless Steel
IncludesBall Valve
Manifold Connection TypeFlange
Manufacturers Warranty Length5 yrs.
Max. Discharge Pressure120 psi
Max. Flow Rate54 GPM
Max. Media Temperature225°F
Max. Solid Dia.3/25"
Min. Media Temperature-40°F
Overall Height16"
Overall Length11"
Overall Width11"
Power SourceAir
Rated Air Pressure120 psi
SeriesSD Series
Series FamilySanitary
StandardsATEX CERTIFIED, CE CERTIFIED, NEC
Valve MaterialSantoprene
Valve TypeBall

Shipping Info:

Ship weight (kg) 76.5
Ship height (cm)40.64
Ship length (cm)27.94
Ship width (cm)27.94
Country of OriginCN
