IFM OGE500 Cylindrical Photoelectric Sensor Receiver, 10 To 36VDC, Pnp, 4-Pin M12 Male Connector | CR4LBW

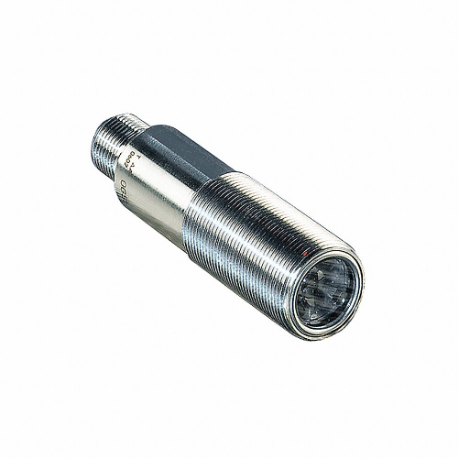

IFM OGE500 Cylindrical Photoelectric Sensor Receiver, 10 To 36VDC, Pnp, 4-Pin M12 Male Connector

Item: CR4LBW Model: OGE500Cross Ref: 35T404
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€122.93 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemReceiver
Body MaterialStainless Steel, PA, LCP, EPDM, TPU
Circuit Type (cylindrical Photoelectric Sensor)PNP
Diameter18 mm
Diameter (cylindrical Photoelectric Sensor)18 mm
Diameter - Cylindrical Photoelectric Sensor18 mm
FeaturesPmma Lens, Reverse Polarity And Overload Protection
GradeGrade 316L
HousingThreaded Type
Ip RatingIP67
Length72 mm
Length (cylindrical Photoelectric Sensor)72 mm
Length - Cylindrical Photoelectric Sensor72 mm
Light SourceRed LED
Max. Load Current200 mA
Max. Sensing Distance25m
Max. Sensing Distance (cylindrical Photoelectric Sensor)25m
Nema RatingNon-NEMA , Not Rated
Number Of Pins4
Number Of Sensor Pins4
Operating Frequency1000 Hz
Operating Mode (photoelectric Sensor)Selectable Light On, Dark On
Operating Temp.-25°C to +80°C
Operation ModeSelectable Light On/Dark On
Overload ProtectionYes
Power Requirement (cylindrical Photoelectric Sensor)10-36V DC
Range AdjustableYes
Reverse Polarity ProtectionYes
Sensing MethodThrough Beam Receiver
Sensing Method (cylindrical Photoelectric Sensor)Through Beam Receiver
Sensing Method - Cylindrical Photoelectric SensorThrough Beam Receiver
Sensor Connection TypeMale
Sensor SizeM12
ShapeCylindrical
Short-circuit ProtectionYes
Transmitter / ReceiverReceiver
Type Of LightRed Light
Type Of Short-circuit ProtectionPulsed
Dc Supply Voltage Rating10-36V DC
Display Qty1
Electrical ConnectionM12
Electrical Installation TypeDirect Connector
Emitted Sensor LightRed Light
Includes Indicator LightsIndicator Lights Included
Load Current - Maximum200 mA
Nema Enclosure RatingNo Enclosure
Nominal Sensor DiameterM18 Threaded
Operating Temperature - Maximum176°F
Operating Temperature - Minimum-13°F
Output CircuitPNP
Output Circuit TypePNP
Overall Diameter18 mm
Overall Height72 mm
Sensing Distance - Maximum25m
Sensing Distance - Minimum0 m
Sensor Body StyleCylindrical
Sensor Diameter18 mm
Sensor Face OrientationRight Angle
Sensor Switching ModeSelectable Light On/Dark On
StandardsCE, CULUS, UKCA
Supply Voltage10-36V DC
Supply Voltage TypeDC-Only
Switching Frequency1 kHz
Through Beam Sensor ComponentPhotoelectric Sensor Receiver

Shipping Info:

Ship weight (kg) 0.063
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelNema RatingOperating FrequencyCircuit Type (cylindrical Photoelectric Sensor)Length (cylindrical Photoelectric Sensor)Light SourceNumber Of PinsOperating Mode (photoelectric Sensor)Sensing Method (cylindrical Photoelectric Sensor)Price
IFM OGE503 Cylindrical Photoelectric Sensor Receiver, 10 To 36VDC, Npn, 4-Pin M12 Male Connector | CR4LBV OGE503Non-NEMA1000 HzNPN72 mmRed LED4Selectable Light On, Dark OnThrough Beam Receiver€123.17
IFM OG0039 Cylindrical Photoelectric Sensor Receiver, 20 To 250VAC/Dc, Ac | CR4LBX OG0039Non-NEMA25 HzAC86 mmInfrared LED3Dark OnThrough Beam Receiver€143.69
IFM OGS500 Cylindrical Photoelectric Sensor Transmitter, 10 To 36VDC, Npn/Pnp | CR4LBY OGS500Non-NEMA1000 HzNPN/PNP72 mmRed LED4Selectable Light On, Dark OnThrough Beam Transmitter€102.63
IFM OG0030 Cylindrical Photoelectric Sensor Transmitter, 20 To 250VAC/Dc, Ac | CR4LBZ OG0030Non-NEMA25 HzAC86 mmInfrared LED3Light OnThrough Beam Transmitter€92.40
IFM OGP503 Cylindrical Photoelectric Sensor, 10 To 36VDC, Npn, 4-Pin M12 Male Connector | CR4LCA OGP503Non-NEMA2000 HzNPN72 mmRed LED4Selectable Light On, Dark OnRetroreflective€135.49
IFM OGH502 Cylindrical Photoelectric Sensor, 10 To 36VDC, Npn, 4-Pin M12 Male Connector, Diffuse | CR4LCB OGH502Non-NEMA1000 HzNPN72 mmRed LED4Selectable Light On, Dark OnDiffuse€150.84
IFM OGP500 Cylindrical Photoelectric Sensor, 10 To 36VDC, Pnp, 4-Pin M12 Male Connector | CR4LCC OGP500Non-NEMA2000 HzPNP72 mmRed LED4Selectable Light On, Dark OnRetroreflective€135.49
