IFM IGT203 Inductive Proximity Sensor, 10 to 36 V DC, 600 Hz Proximity Sensor Op Freq, PNP | CR4LXT

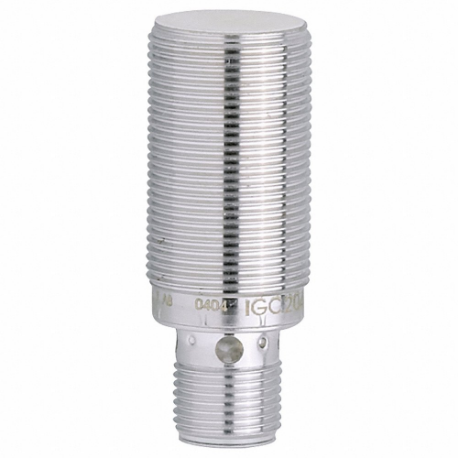

IFM IGT203 Inductive Proximity Sensor, 10 to 36 V DC, 600 Hz Proximity Sensor Op Freq, PNP

Item: CR4LXT Model: IGT203Cross Ref: 801T78
In Stock

Get it by Monday, Jun 16

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€211.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemProximity Sensor
ApplicationRegular Cleaning Processes
Case MaterialStainless Steel
Description/special FeaturesGold Plated Contacts, Increased Sensing Range
HousingThreaded Type
Includes(2) Lock Nuts
Increased Sensing RangeYes
Ip RatingIP68, IP69
Length46 mm
Max. Detecting Distance8 mm
MountingFlush Mountable
Operating Temp. Range0°C to +100°C
Output ModeNo
Overload ProtectionYes
Proximity Sensing MethodInductive
Proximity Sensor Dia.18 mm
Proximity Sensor Operating Frequency600 Hz
Proximity Sensor Output Circuit TypePNP
Reverse Polarity ProtectionYes
Short-circuit ProtectionYes
Thread SizeM12
Type Of Short-circuit ProtectionPulsed
Ac Supply Voltage RatingNot Rated
Body MaterialStainless Steel
Body Stainless Steel GradeGrade 316L
Dc Supply Voltage Rating10-30V DC
Display Qty1
Electrical ConnectionM12
Electrical Installation TypeDirect Connector
Includes Indicator LightsIndicator Lights Included
Nominal Sensor DiameterM18 Threaded
Number Of Pins3
Operating Temperature - Maximum212°F
Operating Temperature - Minimum32°F
Output CircuitPNP
Output Circuit Contact FormNO
Output Circuit Current - Maximum100 mA
Output Circuit TypePNP
Output Circuit Voltage - Maximum2.5V DC
Overall Height46 mm
Sensing Distance - Maximum8 mm
Sensing Face ShieldingShielded
Sensing MethodInductive
Sensor Body StyleCylindrical
Sensor Diameter18 mm
StandardsEN 55011, EN 61000-4-2 ESD, EN 61000-4-3 HF RADIATED, EN 61000-4-4 BURST, EN 61000-4-6 HF CONDUCTED, UL E174191, UL LISTED
Supply Voltage10-30V DC

Shipping Info:

Ship weight (kg) 0.045
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelMax. Detecting DistanceIp RatingOutput ModeProximity Sensing MethodProximity Sensor Dia.Shielded / UnshieldedMax. Load CurrentProximity Sensor Output Circuit TypePrice
IFM IIS229 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCK IIS22922 mm-NoInductive30 mmUnshielded100 mAThree Wire NPN€76.40
IFM IIS244 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCL IIS24415 mm-NoInductive30 mmShielded100 mAThree Wire NPN€101.22
IFM IIS228 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCM IIS22815 mm-NoInductive30 mmShielded100 mAThree Wire NPN€74.71
IFM IIS248 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCN IIS24815 mm-NCInductive30 mmShielded100 mAThree Wire NPN€102.22
IFM IIS235 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCP IIS23515 mm-NCInductive30 mmShielded100 mAThree Wire NPN€91.42
IFM IIS237 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCQ IIS23722 mm-NCInductive30 mmUnshielded100 mAThree Wire NPN€92.18
IFM IIS249 Cylindrical Proximity Sensor, 10 To 30VDC, 100 Hz Proximity Sensor Op Freq, 3 Wire Npn | CR4LCR IIS24922 mm-NCInductive30 mmUnshielded100 mAThree Wire NPN€102.22
