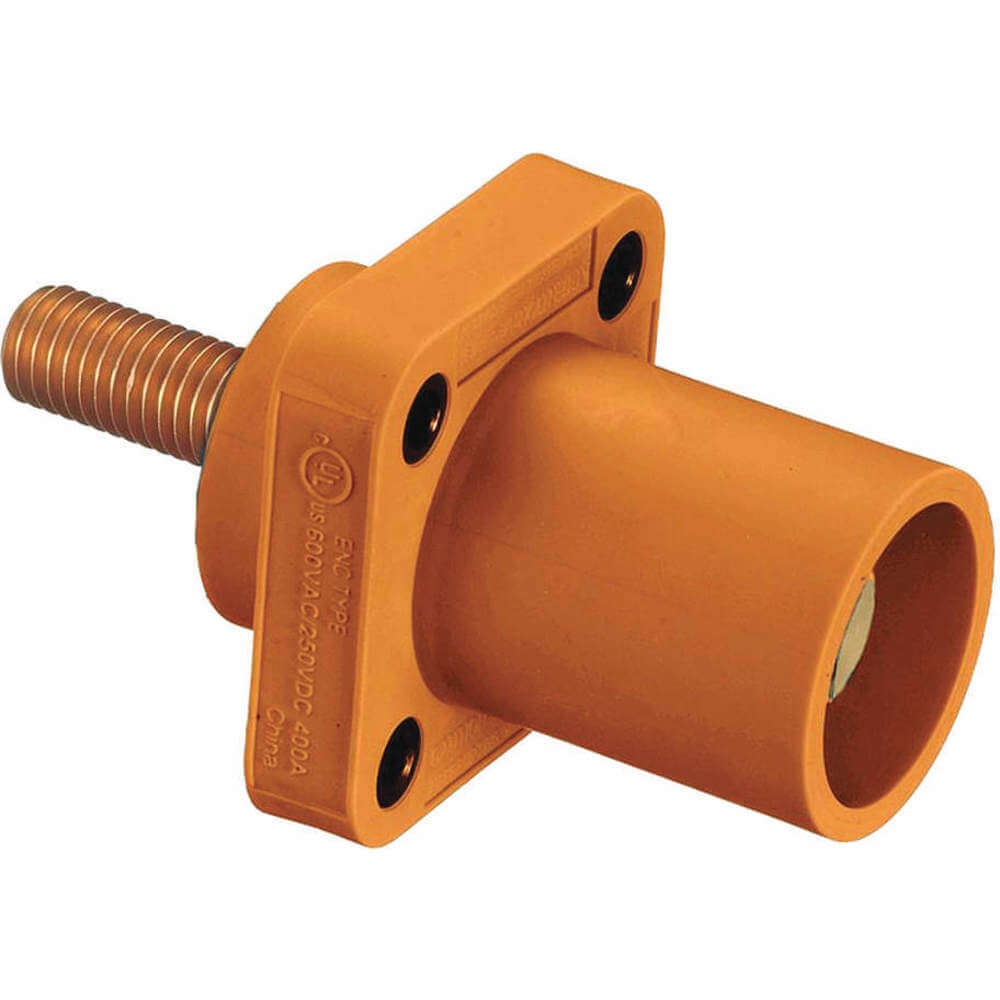

HUBBELL HBLMRSCO Single Pole Connector Receptacle Orange | AF7BFD 20TT06

HUBBELL WIRING DEVICE-KELLEMS HBLMRSCO Single Pole Connector Receptacle Orange

Item: AF7BFD Model: HBLMRSCOCross Ref: 20TT06
In Stock

Get it by Tuesday, Jun 10

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€80.25 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemSingle Pole Connector
Amps400A
Cable Range#4 AWG to 4/0 AWG
ColorOrange
Conductor MaterialBrass
Exposure ConditionsIndoor Dry
Male/femaleMale
MaterialTPE
Mounting StyleScrew
Nema RatingNEMA 3R, NEMA 4X, NEMA 12
Number Of Poles1
Phase1
Power Terminals Wire Size#4 AWG to 4/0 AWG
Single Pole Device StyleTaper Nose
Terminal Connection TypeSingle Pin
TypeReceptacle
Wattage240000 W
Wire Size#4 AWG to #4/0 AWG
Connection OrientationStraight
Contact MaterialBrass
Current Rating400A
End TypeTaper Nose
Flange ShapeSquare
Housing ColorOrange
Housing MaterialThermoplastic Elastomer
Includes Mounting HardwareYes
Mounting LocationPanel
Nema Enclosure RatingNEMA 3R, NEMA 4X, NEMA 12
Overall Length3.71"
Overall Width2 1/5"
Receptacle GenderMale
StandardsANSI/NFPA 70, CUL LISTED, NATIONAL ELECTRIC CODE (NEC), UL ENCLOSURE TYPES 3R, 4X, 12, UL LISTED
Voltage Rating600V AC/250V DC

Shipping Info:

Ship weight (kg) 0.315
Ship height (cm)2.54
Ship length (cm)9.42
Ship width (cm)5.59
HS code8536698000
Country of OriginCN

Product Variants

ProductModelColorMale/femaleCable RangeTypeNumber Of PolesConductor MaterialSingle Pole Device StyleWattagePrice
HUBBELL HBLFRBO Single Pole Connector Receptacle Orange | AF7AQM 20TR81 HBLFRBOOrangeFemale#4 AWG to 4/0 AWGReceptacle1BrassTaper Nose240000 W€72.23
HUBBELL HBLFRBR Single Pole Connector Receptacle Red | AF7AQN 20TR82 HBLFRBRRedFemale#4 AWG to 4/0 AWGReceptacle1BrassTaper Nose240000 W€72.23
HUBBELL HBLFRBW Single Pole Connector Receptacle White | AF7AQP 20TR83 HBLFRBWWhiteFemale4 AWG to 4/0 AWGReceptacle1BrassTaper Nose240000 W€72.23
HUBBELL HBLFRBY Single Pole Connector Receptacle Yellow | AF7AQQ 20TR84 HBLFRBYYellowFemale#4 AWG to 4/0 AWGReceptacle1BrassTaper Nose240000 W€72.23
HUBBELL HBLFRSO Single Pole Connector Receptacle Orange | AF7BDK 20TR59 HBLFRSOOrangeFemale#4 AWG to 4/0 AWGReceptacle1BrassTaper Nose240000 W€72.23
HUBBELL HBLFRSY Single Pole Connector Receptacle Yellow | AF7BDL 20TR60 HBLFRSYYellowFemale4 AWG to 4/0 AWGReceptacle1BrassTaper Nose240000 W€72.23
HUBBELL HBLMRSO Single Pole Connector Receptacle Orange | AF7BDM 20TR62 HBLMRSOOrangeMale4 AWG to 4/0 AWGReceptacle1BrassTaper Nose240000 W€72.23
