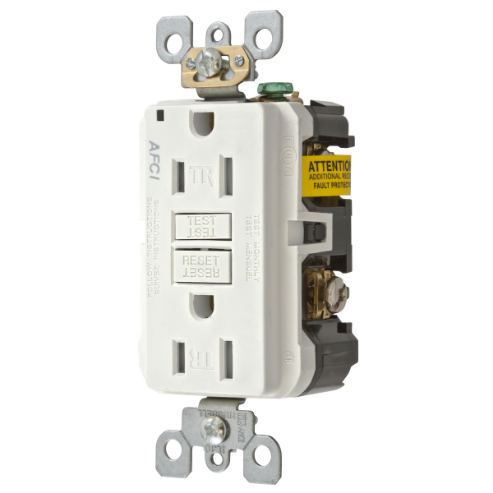

HUBBELL WIRING DEVICE-KELLEMS AFR15TRW Afci Receptacle, 15A, White | BD4MPZ

HUBBELL WIRING DEVICE-KELLEMS AFR15TRW Receptacle, Commercial, Standard Duplex, Flush Mount, 15A, 125V AC, White

Item: BD4MPZ Model: AFR15TRWCross Ref: 49YL06
Limited Availability
€103.04 /unit
Request a Quote

Payment

Delivery

Product Specifications:

ItemReceptacle
AfciYes
Amps Rating15A
Connection OrientationStraight
Cover TypeNo Cover
Face Plate Height2 3/5"
Face Plate Width1.7"
GfciNo
GroundingGrounded
Housing ColorWhite
Housing MaterialNylon
Hp1/2 hp
Max. Operating Temp.150°F
Min. Operating Temp.-30°F
Mount Hole Center-to-center Height3 4/5"
Mounting TypeFlush
No. Of Gangs1
No. Of Poles2
No. Of Wires3
Overall Depth1 2/5"
PolarizedYes
Receptacle TypeDuplex
Self TestingYes
Special ResistanceTamper Resistant
Surge ProtectionNo
Voltage125V AC
Wire Connection LocationBack, Side
Wire Connection TypeScrew Terminals
Current Rating15A
GradeGeneral Use
Mount TypeFlush
PhaseSingle
StandardsCSA CERTIFIED C22.2 NO. 42, CSA CERTIFIED TECH LETTER NO. M-02A, NEMA WD-6, UL 498, UL FEDERAL SPECIFICATION WC-596, UL1699A E366570
Voltage Rating125V AC
Wire Connection TypesScrew Terminals

Shipping Info:

Ship weight (kg) 0.1125
Ship length (cm)3.56
Country of OriginCN
