Free Shipping Eligible.Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.
€266.96 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
Item

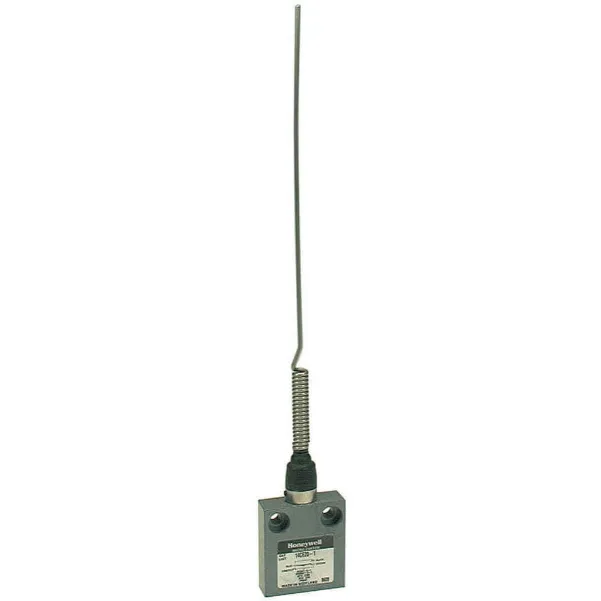

Miniature Enclosed Limit Switch
Actuator Length
8.94"
Actuator Length - Limit Switch
8.94"
Actuator Location
Top
Actuator Style
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Amps
5A
Basic Actuator Style
Wobble Stick
Basic Actuator Style (limit Switch)
Wobble Stick
Body Construction
Die Cast Zinc
Body Height - Limit Switch
1.73"
Body Material
Die Cast Zinc
Body Style
Miniature
Body Style - Limit Switch
Miniature
Body Width
1.58"
Boot Sealed Actuator
No
Boot Sealed Actuator - Limit Switch
No
Cable Length
6 ft.
Current Rating - Nominal
5A
Dc Contact Rating
Not Rated
Depth
0.63"
Differential Travel Length
0.004"
Electrical Connection
6 ft. Cable
Head Action
Spring Return, Standard
Height
1.93"
Limit Switch Style
General Purpose Limit Switch
Mounting - Limit Switch
Surface
Mounting Hole Spacing - Limit Switch
0.98"
Movement
Release Force: 0.99 lbs. Max
Nema Rating
NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 6P, NEMA 13
Operating Force
0.12 lbs.
Operating Temp. Range
+35°F to +160°F
Operator Configuration
Steel
Over Travel Length
0.118"
Pre-travel Length
0.04", -0.02" to +0.02"
Stem Thread - Limit Switch
No Stem
Voltage
250V AC
Width
1.58"
Ac Contact Rating
5A @ 240V
Actuator Type
Coil Spring
Body Configuration
Non Plug In
Body Depth
0.63"
Body Height
1.73"
Contact Form
SPDT-1NO/1NC
Differential Travel
0.004"
Ip Rating
IP65, IP66, IP67
Mounting Hole Diameter
1/5"
Mounting Hole Horizontal Center To Center Distance
25 mm
Mounting Style
Surface
Nema Enclosure Rating
NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 6P, NEMA 13
