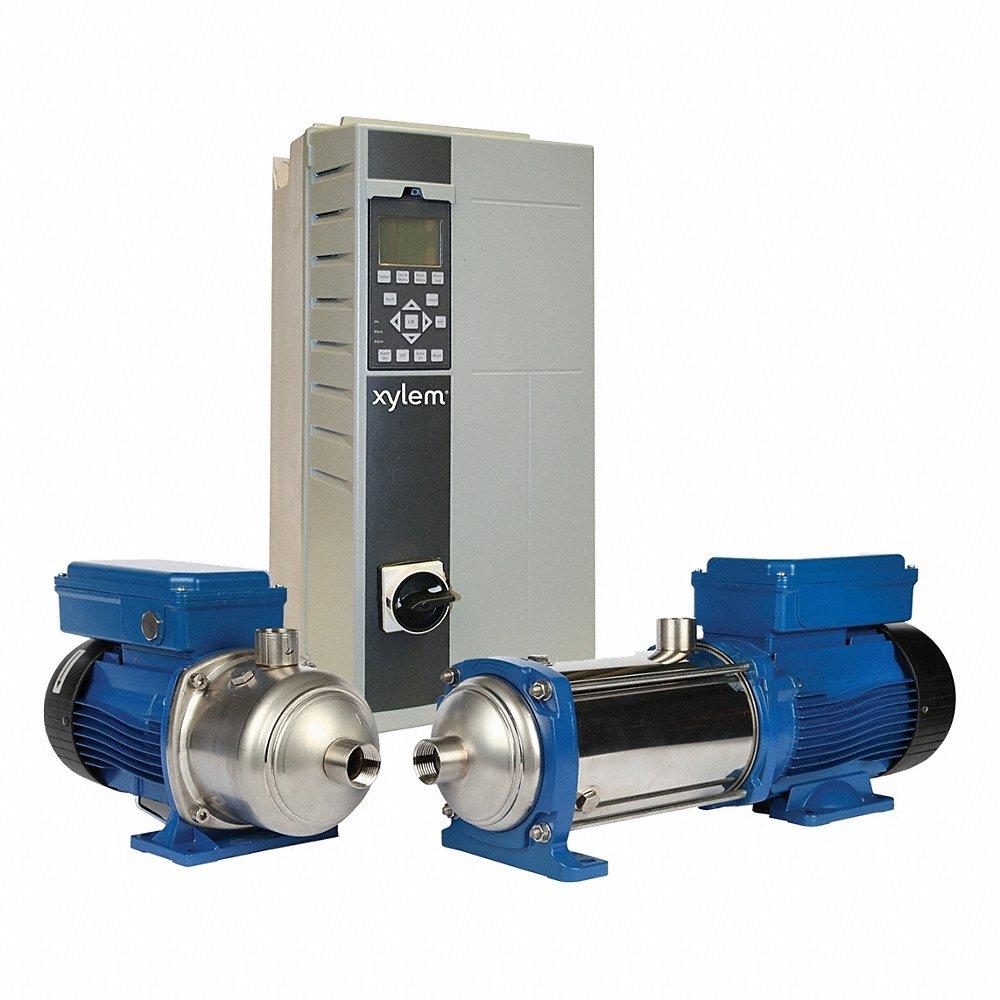

GOULDS WATER TECHNOLOGY 5AVN315HM03 Constant Pressure Booster Pump, 5 Hp, Single Phase, 230VAC, 82 PSI

Item: CP6PLT Model: 5AVN315HM03Cross Ref: 48GP36
In Stock

Get it by Tuesday, Jun 17

€8,460.27 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemBooster Pump
Compatible Discharge Pipe Size1 1/2"
Compatible Intake Pipe Size2"
Discharge TypeNPT
Display Qty1
Duty CycleContinuous
For Use With Potable SystemsNo
Frequency60 Hz
Housing MaterialStainless Steel
Hp5 hp
Impeller MaterialStainless Steel
Impeller TypeClosed
IncludesPump (E-Hm 3 Stg) Controller, Transducer
Intake TypeNPT
Max. Flow Rate100 GPM
Max. Head205 ft.
Max. Media Temp.212°F
Max. Motor Ambient Temp.104°F
Max. Pressure Boost82 psi
Max. System Pressure100 psi
Media TypeWater
Min. Flow Rate60 GPM
Min. Motor Ambient Temp.34°F
Min. Pressure Boost50 psi
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Rpm3500 RPM
No. Of Stages3
Overload ProtectionYes
Pumping ApplicationFiltration Systems, Fire Suppression Systems, Irrigation Systems, Multibath Homes
Seal MaterialCarbon, EPR, Silicon Carbide
Self PrimingManual
SeriesE-AB2 Series
Tank TypePressure Tank Not Included
Voltage230V AC
Wetted MaterialStainless Steel
Compatible With Media TypeWater
Horsepower5 hp
Impeller DesignClosed
Includes ControllerYes
Intake And Discharge Size2", 1 1/2"
Manufacturer Warranty Length3 yrs.
Maximum Feet Of Head205 ft.
Maximum Flow Rate100 GPM
Media Temperature (maximum)212°F
Minimum Flow Rate60 GPM
Motor Ambient Temperature (maximum)104°F
Motor Ambient Temperature (minimum)34°F
Motor EnclosureTotally Enclosed Fan Cooled
Nameplate Voltage230V AC
Number Of Stages3
PhaseSingle
PrimingManual
Pump Housing MaterialStainless Steel
Rpm (maximum)3500 RPM
StandardsCE CERTIFIED, CULUS LISTED
System Pressure (maximum)100 psi
Thermal Overload ProtectionYes

Shipping Info:

Ship weight (kg) 33.75
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
