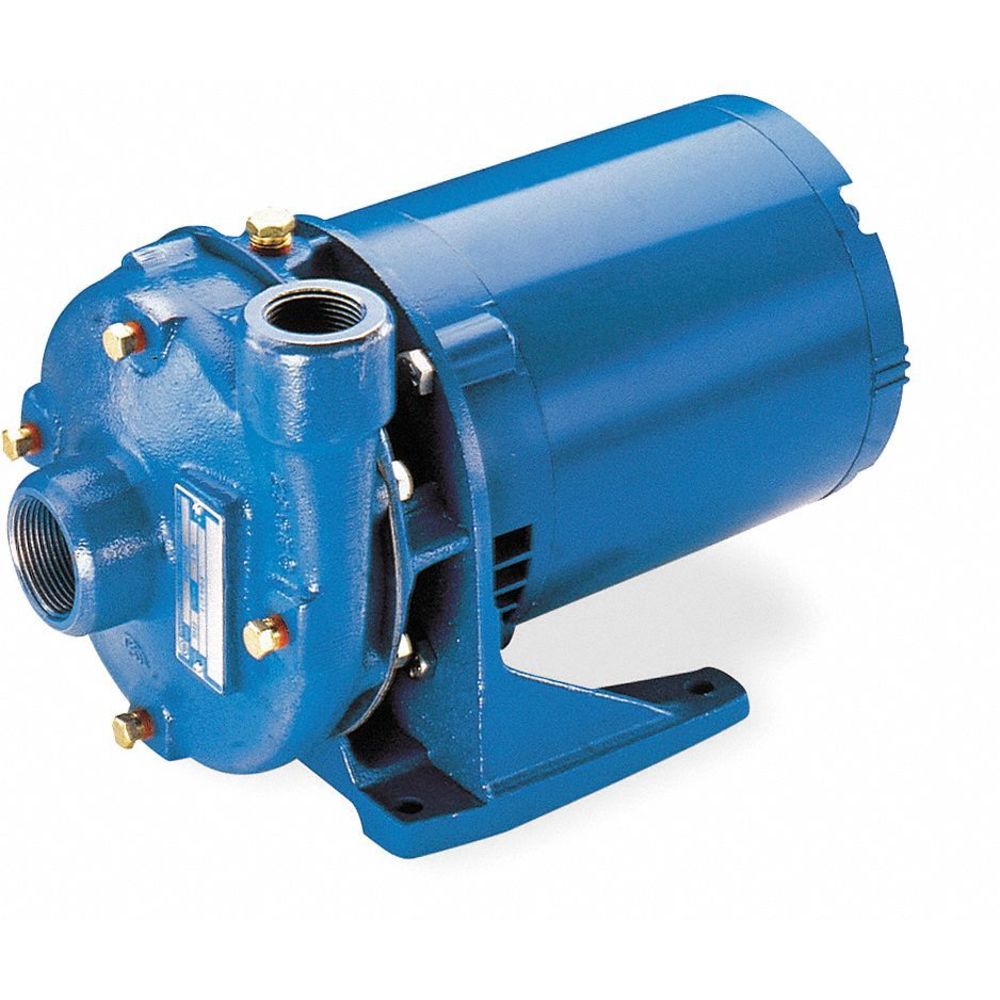

GOULDS WATER TECHNOLOGY 1BF82034 208 to 240/480 VAC Totally Enclosed Fan-Cooled Centrifugal Pump, 3-Phase | CD2LKN 52TW77

GOULDS WATER TECHNOLOGY 1BF82034 208 to 240/480 VAC Totally Enclosed Fan-Cooled Centrifugal Pump, 3-Phase

Item: CD2LKN Model: 1BF82034Cross Ref: 52TW77
In Stock

Get it by Thursday, Jun 12

€2,580.18 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemCentrifugal Pump
Amps4.4-4.2/2.1A
Bearing TypeBall
Best Efficiency Flow Rate37 GPM
Best Efficiency Flow Rate @ Head37 GPM @ 95 ft.
Best Efficiency Head95 ft.
Best Efficiency Range Gpm @ Head20 to 42 GPM @ 75 to 50 ft.
Compatible Intake Pipe Size1 1/4"
Discharge Size1"
Discharge TypeNPT
Duty CycleContinuous
For Use With Potable SystemsYes
Frame56J
GradeGrade 316
Height8 1/5"
Housing MaterialCast Iron
Hp2 hp
Impeller MaterialBronze
Impeller TypeClosed
Inlet Pressure55 psi
Intake TypeNPT
Length17 1/3"
Max. Case Pressure125 psi
Max. Flow Rate58 GPM
Max. Flow Rate @ 100 Ft.32 GPM
Max. Flow Rate @ 40 Ft.55 GPM
Max. Flow Rate @ 50 Ft.52 GPM
Max. Flow Rate @ 70 Ft.49 GPM
Max. Flow Rate @ 80 Ft.37 GPM
Max. Flow Rate @ 90 Ft.39 GPM
Max. Flow Rate @ Head58 GPM @ 40 ft.
Max. Head118 ft.
Max. Liquid Temp.212°F
Max. Solid Dia.1/16"
Media TypeWater
Min. Flow Rate37 GPM
Min. Flow Rate @ Head10 GPM @ 116 ft.
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor TypeThree Phase
Mounting OrientationHorizontal, Vertical
Phase3
Port Rotation45 Deg. Increments
Rpm3500 RPM
Seal MaterialBuna Elastomer, Carbon Ceramic, Stainless Steel
Self PrimingManual
Series3642 Series
Shaft MaterialStainless Steel
Shut Off Pressure125 psi
Voltage208-230/460V AC
Wetted MaterialBronze, Buna N, Carbon Ceramic, Stainless Steel
Width6 5/7"
Best Efficiency Flow37 GPM
Compatible Discharge Pipe Size1"
Compatible With Media TypeWater
Connection TypeNPT
Flow Rate (maximum)58 GPM
Flow Rate (minimum)37 GPM
Frequency60 Hz
Horsepower2 hp
Maximum Feet Of Head118 ft.
Maximum Flow Rate @ 100 Feet Of Head32 GPM
Maximum Flow Rate @ 40 Feet Of Head55 GPM
Maximum Flow Rate @ 50 Feet Of Head55 GPM
Maximum Flow Rate @ 60 Feet Of Head53 GPM
Maximum Flow Rate @ 70 Feet Of Head49 GPM
Maximum Flow Rate @ 80 Feet Of Head45 GPM
Maximum Flow Rate @ 90 Feet Of Head39 GPM
Motor EnclosureTotally Enclosed Fan Cooled
Nameplate Voltage208-230/460V AC
Overall Height8 1/5"
Overall Length17.3"
Overall Width6.7"
PrimingManual
Pump Housing MaterialCast Iron
Rpm (maximum)3500 RPM
Solid Diameter (maximum)0.06"

Shipping Info:

Ship weight (kg) 24.3
Ship height (cm)20.83
Ship length (cm)43.94
Ship width (cm)17.02
Country of OriginUS

Product Variants

ProductModelCompatible Intake Pipe SizeMax. Flow Rate @ 40 Ft.Max. Flow Rate @ 100 Ft.Max. Flow Rate @ 50 Ft.Max. Flow Rate @ 70 Ft.Max. Flow Rate @ 80 Ft.Max. Flow Rate @ 90 Ft.Max. Flow Rate @ HeadPrice
GOULDS WATER TECHNOLOGY 2BF82034 240 to 480 VAC Totally Enclosed Fan-Cooled Centrifugal Pump, 3-Phase | CD2LKM 52TW76 2BF820341 1/2"66 GPM50 GPM36 GPM78 GPM65 GPM59 GPM96 GPM @ 50 ft.€2,395.17
