GEMS SENSORS RFS 155485 Liquid Flow Switch Rotor Spdt 35ma/95ma | AA8WUH 1AMB3

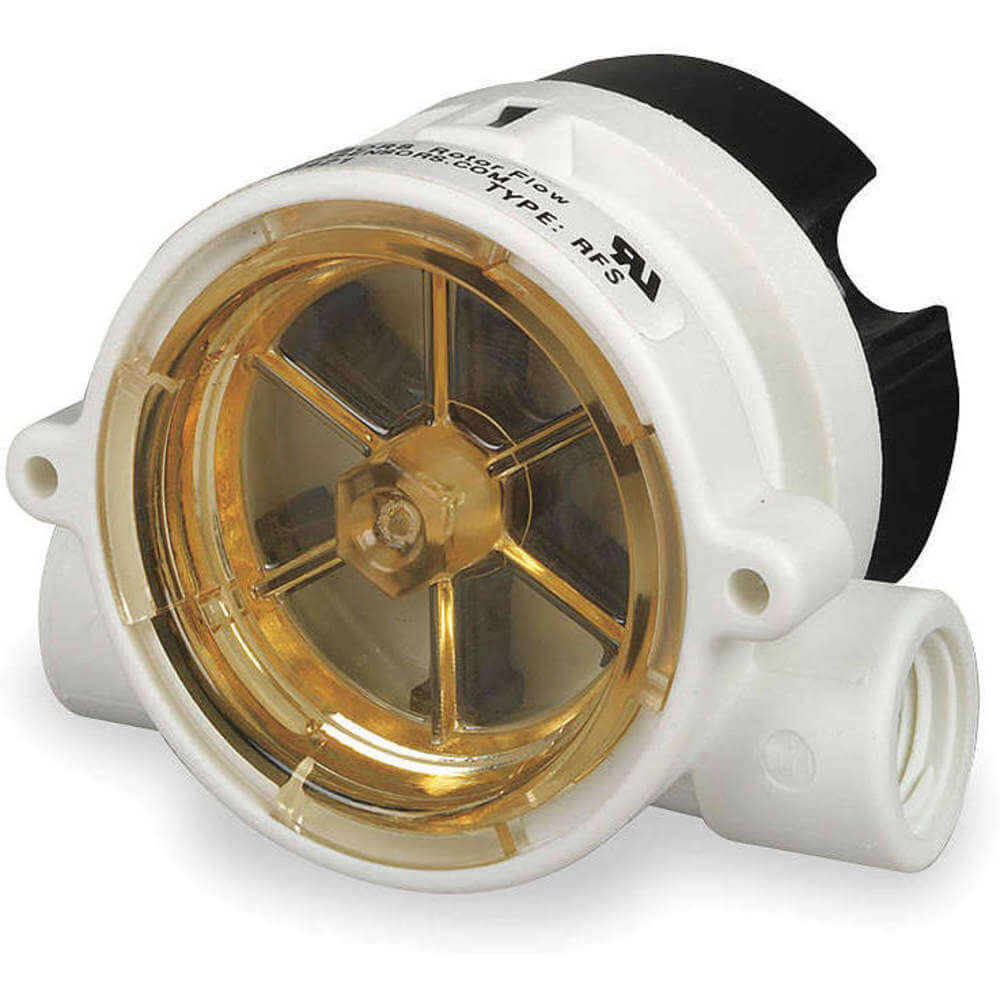

GEMS SENSORS RFS 155485 Liquid Flow Switch Rotor Spdt 35ma/95ma

Item: AA8WUH Model: RFS 155485Cross Ref: 1AMB3
In Stock

Get it by Thursday, Jun 12

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€524.98 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemLiquid Flow Switch
Connection Size1/2"
Connection TypeFNPT
Dc Contact Rating20mA @ 24V
Filter Rating150 µm
Filter Rating - Maximum150 µm
Flow Rate - Maximum20 GPM
Flow Rate - Minimum4 GPM
Flow Switch TypeHall Effect
Height2 2/5"
Housing MaterialBuna N, Ceramic, Polypropylene, Polysulfone, PPS Composite , Polypropylene
Length2 2/5"
Max. Ambient Temp.150°F
Max. Filter Rating150 µm
Max. Flow Rate20 GPM
Max. Media Temp.180°F
Max. Pressure100 psi
Media Temp. Range-20°F to +180°F
Min. Ambient Temp.-20°F
Min. Flow Rate4 GPM
Min. Media Temp.-20°F
Overall Height2 2/5"
Overall Width3.1"
SeriesRFS Series
Set Point ConfigurationAdjustable
Switch PositionNormally Closed, Normally Open
Switch TypeSPDT
TypeHall Effect , Rotor
Voltage24V DC
Wetted MaterialBuna N, Ceramic, Polypropylene, Polysulfone , Buna N, Ceramic, Polypropylene, Polysulfone, Polyphenylene Sulfide Composite
Width3.1"
Body MaterialPolypropylene
Contact Rating (ac)45 mA @ 115V (No Load), 95 mA @ 115V (Load - Relay Energized)
Contact Rating (dc)20 mA @ 24V
Fluid Connection1/2" FNPT
Max. Ambient Temperature180°F
Max. Media Temperature180°F
Min. Ambient Temperature-20°F
Min. Media Temperature-20°F
Overall Length2.4"
StandardsCE CERTIFIED, UL LISTED

Shipping Info:

Ship weight (kg) 0.1575
Ship height (cm)11.94
Ship length (cm)9.65
Ship width (cm)6.86
HS code8481809015
Country of OriginUS
