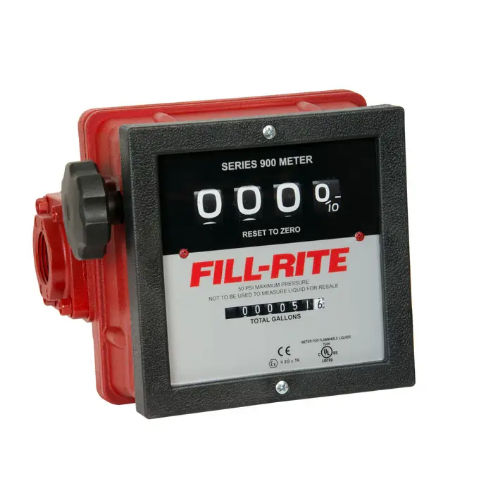

FILLRITE 901C Flowmeter 1 Inch FNPT | AH9KGR 3XNL1

FILLRITE 901C Liquid Mechanical Flowmeter, 1 Inch FNPT Connection

Item: AH9KGR Model: 901CCross Ref: 3XNL1
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€620.51 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemMechanical Flowmeter
Connection Size1"
Connection TypeFNPT
Display TypeMechanical
Fits Pipe Size1"
Flow Range6-40 GPM
Flow Rate Range6-40 GPM
Flowmeter TypePaddle Wheel
Fluid Temp.-40°F to +140°F
For Pipe Size1"
Gpm Max.40 GPM
Housing MaterialAluminum
Includes Flow Rate Adjustment KnobYes
Includes Pressure GaugeNo
Includes TotalizerYes
Max. Flow Rate40 GPM
Max. Pressure50 psi
Max. Temp.150°F
Media TypeDiesel, Gasoline, Kerosene, Petroleum Fluids, Solvents
Min. Flow Rate6 GPM
Min. Media Temp.-40°F
Mounting LocationInline
Mounting OrientationUniversal
O-ring MaterialBuna N
Output TypeStandard Frequency Pulse
Overall Height5 1/2"
Overall Length5 1/2"
Overall Width6 1/4"
Pulse Rate10 pulses/gal.
Resetable Cumulative Totalizer1000 gal.
Rotor MaterialPolyphenylene Sulfide
Seal MaterialBuna N, Viton
Series900 Meter Series
Shaft MaterialStainless Steel
Unit Of MeasureGal.
Wetted MaterialAluminum, Buna N, Fluorocarbon, Nickel, PTFE, Ryton, Stainless Steel
Accuracy+/-2%
Compatible Flow MaterialDiesel, Gasoline, Kerosene, Petroleum Fluids, Solvents
Flow Rate6-40 GPM
Fluid Connection1" FNPT
Manufacturer Warranty Length2 yrs.
Max. Media Temperature140°F
Max. Operating Pressure50 psi
Max. Viscosity50 SUS
Media Temp. Range-40°F to 140°F
Min. Media Temperature-40°F
Product Type4-Digit Mechanical Fuel Transfer Meter
StandardsCE CERTIFIED, CULUS LISTED

Shipping Info:

Ship weight (kg) 3.24
Ship height (cm)18.75
Ship length (cm)26.67
Ship width (cm)18.42
Country of OriginUS

Product Details:

    • Fill-Rite 901C flow meter designed for metering viscous fluids in transfer pumps with flow rates of 6 - 40 GPM
    • Features nickel-plated aluminium construction for durability, 4-digit resettable display with easy field calibration and inlet / outlet flow ports in 90 degree increments for easy installation in both vertical & horizontal orientations
    • Capability to handle diesel, gasoline, kerosene, mineral spirits, Stoddard solvents and heptane
    • Meets UL / cUL standards

Product Variants

ProductModelConnection SizeConnection TypeMin. Flow RateMax. Flow RateMin. Media Temp.Max. ViscosityMax. Operating PressureOverall LengthPrice
DAYTON 12F730 Flowmeter Mechanical 32 Gpm 1 Inch Fnpt | AA4CXB 12F7301"FNPT5 GPM32 GPM-10°F9400 SUS145 psi7"€366.23
DAYTON 12F736 Flowmeter Mechanical 32 Gpm 3/4 Inch Fnpt | AA4CXH 12F7363/4"FNPT5 GPM32 GPM-10°F9400 SUS145 psi7"€300.68
DAYTON 40M286 Flowmeter Mechanical 3/4 Inch 4 To 20 Gpm | AD3QNN 40M2863/4"FNPT4 GPM20 GPM-10°F9088 SUS50 psi6"€265.62
DAYTON 40M287 Flowmeter Mechanical 1 Inch 4 To 20 Gpm | AD3QNP 40M2871"FNPT4 GPM20 GPM-10°F9088 SUS50 psi6"€265.62
PULSAFEEDER MTR100-G Flowmeter 20 Gpm 150 Psi 3/4 Inch | AF7WXX 22UM61 MTR100-G3/4"NPT0.25 GPM20 GPM35°F31 SUS150 psi11 5/8"€412.44
PULSAFEEDER MTR101-G Flowmeter 20 Gpm 150 Psi 3/4 Inch 0.1 Ppg | AF7WXY 22UM62 MTR101-G3/4"NPT0.25 GPM20 GPM35°F31 SUS150 psi11 5/8"€450.65
PULSAFEEDER MTR103-G Flowmeter 20 Gpm 150 Psi 3/4 Inch 0.5 Ppg | AF7WXZ 22UM63 MTR103-G3/4"NPT0.25 GPM20 GPM35°F31 SUS150 psi11 5/8"€707.29
