DURO

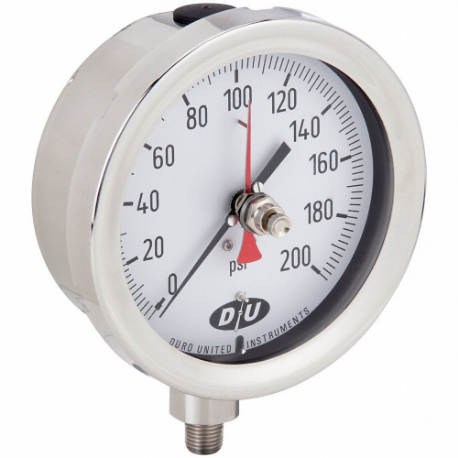

DURO 42070713-MAXHAND Industrial Pressure Gauge, With Red Max Hand, 0 to 200 psi, 4 1/2 Inch Size Dial

Item: CP3XYV Model: 42070713-MAXHANDCross Ref: 442Y22

See variants (23)

In Stock

Check Availability

Get it by Thursday, Jun 12

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€274.07 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Pressure Gauge
Accuracy	-0.5% to +0.5%
Accuracy Grade	Grade 2A
Accuracy Scale	Full Scale
Ambient Temp. Range	-30°F to +250°F
Application	Chemical Industries, Oil And Gas Industry
Bezel Mounting Type	Bayonet
Blowout Safety Back	No
Calibration Certificate Included	No
Case Color	Chrome
Case Construction	Corrosion Resistant
Case Depth	2 8/25"
Case Dia.	5 1/25"
Case Material	Stainless Steel
Cleaned For Oxygen Service	No
Connection Location	Bottom
Dial Color	White
Dial Face Material	Aluminum
Dry Dampening Feature	None
Field Fillable	No
For Use With	Media Compatible With 316L Stainless Steel
Freeze Resistant Movement	No
Gauge Case Liquid	None
Gauge Connection Location	Bottom
Gauge Connection Size	1/4"
Gauge Nominal Dial Size	4 1/2"
Gauge Primary Range No.ed Graduations	20
Gauge Primary Range Units	Psi
Gauge Secondary Range Units	Bar
Gauge Wetted Parts	Stainless Steel
Graduations	10 psi
Hazardous Location Rating	Not Rated
Includes Mounting Hardware	No
Includes Vent Plug	No
Ip Rating, Nema Rating	Not Rated
Lens Material	Glass
Liquid Filled	No
Liquid-filled Case	No
Mounting Hardware Included	No
Mounting Type	Back Flange
Movement Material	Stainless Steel
Movement Type	Rotary
Nominal Dial Size	4 1/2"
Non-sparking	No
Panel-mountable	No
Pointer Characteristics	Lightweight Balanced Construction With Micrometer Adjustment
Pointer Color	Red
Pressure Gauge Type	Industrial Pressure Gauge
Pressure Range	0 psi to 200 psi
Pressure Range Type	Pressure
Primary Scale Minor Graduations	2
Primary Scale Units	Psi
Process Connection Gender	Male
Process Connection Location	Bottom
Process Connection Size	1/4"
Process Connection Type	NPT
Range	0 psi to 200 psi
Removable Bezel	Yes
Scale Type	Dual
Secondary Pressure Range	0 Bar to 14 Bar
Secondary Scale Units	Bar
Sensor Material	Stainless Steel
Sensor Type	Bourdon Tube
Smallest Graduation	10 psi
Socket Material	Stainless Steel
Vibration Resistance	None
Wetted Materials	Stainless Steel
Ambient Operating Temperature Range	-30°F to +250°F
Case Diameter	5.04"
Dial Face Color	White
Gauge Accuracy Grade	Grade 2A Process
Gauge Case Material	Stainless Steel
Includes Calibration Certificate	No
Ip/nema Rating	Not Rated
Lens Material - Gauge	Glass
Manufacturer Warranty Length	1 yr.
Primary Pressure Range	0 to 200
Process Connection	1/4" NPT Male
Series	20 Series
Standards	ASME/ANSI
Wetted Parts Material	Stainless Steel

Shipping Info:

Ship weight (kg)	0.8348
Ship height (cm)	2.54
Ship length (cm)	2.54
Ship width (cm)	2.54

Product Variants

Model	Pressure Range Type	Accuracy Grade	Secondary Pressure Range	Primary Scale Minor Graduations	Primary Scale Units	Smallest Graduation	Range	Graduations	Price
4.2072413E7	Compound	Grade 2A	0 Bar to 7 Bar	2	-	-	-	-	€187.65
4.2072113E7	Compound	Grade 2A	0 Bar to 1 Bar	0.5	-	-	-	-	€187.65
4.2072213E7	Compound	Grade 2A	0 Bar to 2 Bar	0.5	-	-	-	-	€187.65
4.2072713E7	Compound	Grade 2A	0 Bar to 20.7 Bar	2	-	-	-	-	€187.65
4.2072313E7	Compound	Grade 2A	0 Bar to 4 Bar	1	-	-	-	-	€187.65
4.2071313E7	Pressure	Grade 2A	0 Bar to 69 Bar	5	Psi	50 psi	0 psi to 1000 psi	50 psi	€187.65
4.2070513E7	Pressure	Grade 2A	0 Bar to 7 Bar	1	Psi	5 psi	0 psi to 100 psi	5 psi	€187.65
