DRANETZ

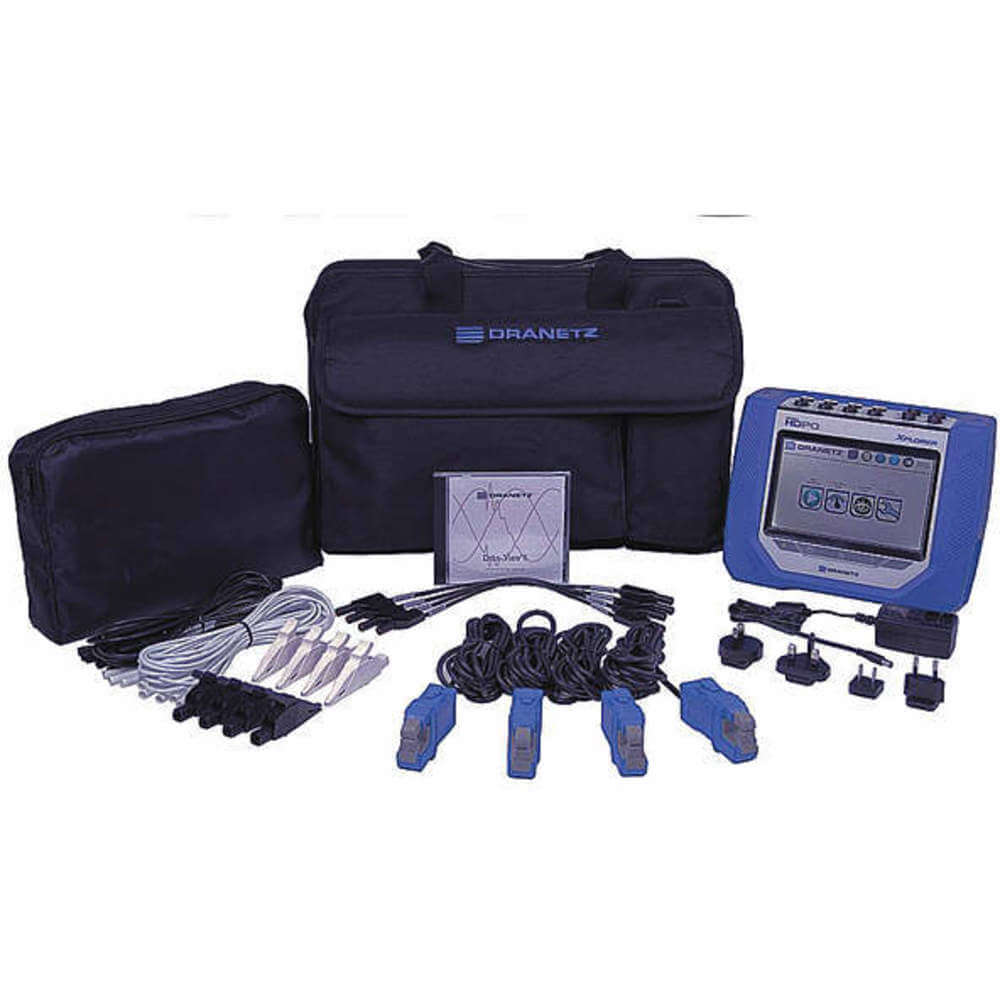

DRANETZ HDPQ-XA10PKG Power Quality Analyzer Kit 10A HDPQ Xplorer

Item: AH3QHN Model: HDPQ-XA10PKGCross Ref: 32ZN32

See variants (16)

In Stock

Check Availability

Get it by Monday, Jun 16

€18,585.88 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Power Quality Analyzer Kit
Ac Response	True RMS
Amps Channels	4
Calibration Certificate	NIST
Calibration Frequency	45-65 Hz
Data Logging	Yes
Display	Color LCD Touch Screen
Max. Watts	100 W
Maximum Ac Current Measurement	10
Maximum Ac Voltage Measurement	1000V AC
Maximum Dc Voltage Measurement	1000V
Maximum Volt-amps	100TVA
Phase	4
Power Factor	0 to 1
Sampling Rate	512 S/C
Voltage Accuracy	-0.1% to +0.1%
Voltage Channels	4
Ac Magnitude Calculation	True RMS
Cat Safety Rating	CAT III 1000V, CAT IV 600V
Communication Protocol	Ethernet, Optional Bluetooth, USB, VNC Remote Control, Wi-Fi
Crest Factor	I=3, V=2
Current Accuracy	+/-0.1%
Current Channels	4
Data Logger	Yes
Digital Memory Capacity	4 Gigabytes
Display Resolution	800 px x 480 px
Display Screen Type	LCD Touchscreen
Display Size	7"
Display Type	Digital
For Phase	4
Frequency Rating	16-25/41-69 Hz
Harmonic Capture	127th, 63rd
Includes	(4) Black 25 cm Stackable Jumpers, (4) Black Alligator Clips, (4) TR-2510B Current Probes, (4) White Alligator Clips, (8) 6 ft. (183cm) Measurement Cables: Red, Yellow, Blue, Gray, (4) White, AC Adapter 118317-G1, Dran-View 7 DV7E-PX, SCC-HDPQ Soft Carry Case, Voltage Cable Set 118970-G1
Includes Software	Yes
Ip Rating	IP65
Manufacturer Warranty Length	3 yrs.
Maximum Ac Current Measured	10A
Maximum Ac Voltage Measured	1000V
Maximum Dc Voltage Measured	1000V
Maximum Operating Temperature	122°F
Maximum Wattage	100 TW
Minimum Ac Voltage Measured	40V
Minimum Dc Voltage Measured	40V
Minimum Operating Temperature	32°F
Peak Capture	Yes
Power Source	AC Adapter, Battery
Standards	EN 50160: 2010, IEC 61000-4-15: EDITION 2 (2010), IEC 61000-4-30 CLASS A EDITION 3, IEC 61000-4-7 CLASS 1: EDITION 2 (2008), IEEE 1159: 2009, IEEE 1453: 2011, IEEE 1459: 2000, IEEE 519: 2014
Testing Functions	Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
Tool Height	2.8"
Tool Length	10"
Tool Width	8"
Transient Duration	32 ms

Shipping Info:

Ship weight (kg)	7.6725
Ship height (cm)	41.91
Ship length (cm)	48.26
Ship width (cm)	38.61
Country of Origin	US

Product Details:

Kit Current Capability : 1 to 10A
Display Resolution : 800 x 480
Harmonic Capture Range : 127/63
Min. Transient Duration : 32 mS
Crest Factor : V=2, I=3
Peak Capture : Yes

Product Variants

Model	Maximum Ac Current Measurement	Sampling Rate	Voltage Accuracy	Ac Response	Max. Watts	Maximum Ac Voltage Measurement	Data Logging	Power Factor	Price
HDPQ-GAPKG	-	512 S/C	-0.5% to +0.5%	True RMS	100 W	1000V AC	Yes	0 to 1	€8,343.08
HDPQ-XAPKG	-	512 S/C, 1 Mhz	-0.5% to +0.5%	True RMS	100 W	1000V AC	Yes	0 to 1	€13,976.26
HDPQ-X4APKG	-	512 S/C, 1 Mhz	-0.1% to +0.1%	True RMS	100 W	1000V AC	Yes	0 to 1	€23,491.91
HDPQ-GA10PKG	10	512 S/C	-0.1% to +0.1%	True RMS	100 W	1000V AC	Yes	0 to 1	€9,092.06
HDPQ-GA500PKG	500A	512 S/C	-0.1% to +0.1%	True RMS	100 W	1000V AC	Yes	0 to 1	€9,092.06
HDPQ-GA550PKG	100A	512 S/C	-0.1% to +0.1%	True RMS	100 W	1000V AC	Yes	0 to 1	€9,092.06
HDPQ-GAFLEX3KPKG	3000A	512 S/C	-0.1% to +0.1%	True RMS	100 W	1000V AC	Yes	0 to 1	€10,603.58
