DAYTON 6Z913 Dc Gearmotor 20 Rpm 90v Tenv | AF2YFL

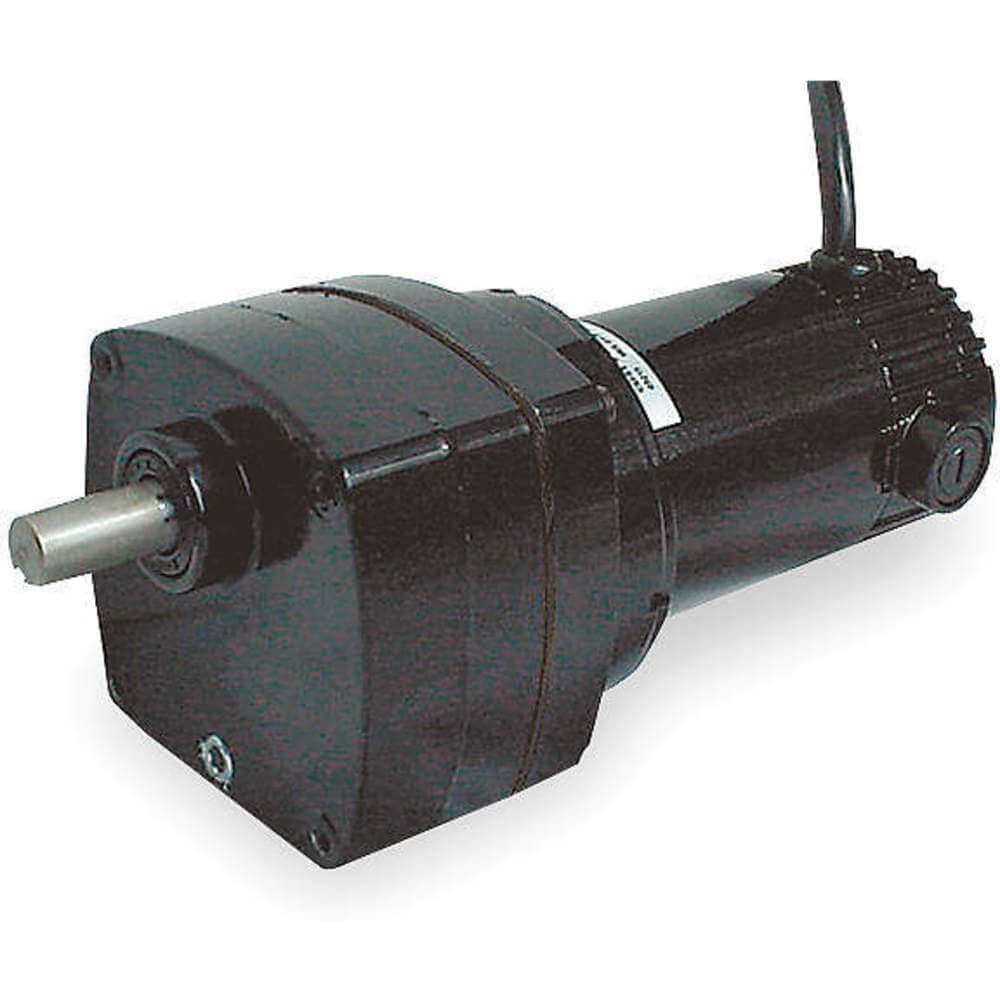

DAYTON 6Z913 Dc Gearmotor 20 Rpm 90v Tenv

Item: AF2YFL Model: 6Z913
In Stock

Get it by Tuesday, Jun 10

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€523.92 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDC Gearmotor
Bearing TypeNeedle On Case Output Shaft, Ball On Motor
Brush TypeExternally Replaceable
Full Load Amps0.62A
Gear CaseDie Cast Aluminum
Gear Case MaterialDie Cast Aluminum
Gear MaterialSteel
Gear Ratio96:1
Gear TypeHelical, Spur
Gearmotor EnclosureTotally Enclosed Nonventilated
Gearmotor Mounting PositionAll Angle
Gearmotor Shaft OrientationParallel
Housing MaterialDie Cast Aluminum
Input Hp1/20 hp , 1/40 hp
Keyway Depth3/4"
Keyway Width1/8"
Length Less Shaft7 1/2"
LubricationPermanent Heavy Fluid Gear Oil
Max. Ambient Temp.40°C
Motor EnclosureTotally Enclosed Non Ventilated , Totally Enclosed Nonventilated
Motor TypeDC
MountingAll Position
Mounting OrientationAny Angle
Nameplate Rpm20 RPM
Output Shaft Dia.1/2"
Output Shaft Length1"
Overall Height2 3/4"
Overall Length8 1/2"
Overall Width3.63"
Overhung Load90 lbs.
Replaceable Motor BrushesYes
Reversible Shaft OutputNo
RotationReversible
Rpm Range16-30 RPM
SealsSpring Loaded Lip Type On Input, Output Shaft
Shaft OrientationParallel
Tachometer FeedbackYes
Thermal ProtectionNo
Voltage90V DC
Full Load Current0.62A
Maximum Torque100 lbs.-in.
Nameplate Speed20 RPM
Operating Voltage90V DC
Output Shaft Diameter1/2"
Overhung Load Capacity90 lbs.-ft.
Seal TypeSpring Loaded Lip Type On Input And Output Shaft
StandardsC-UL RECOGNIZED, UL RECOGNIZED

Shipping Info:

Ship weight (kg) 3.1275
Ship height (cm)6.99
Ship length (cm)21.59
Ship width (cm)9.22
HS code8501106060
Country of OriginUS
