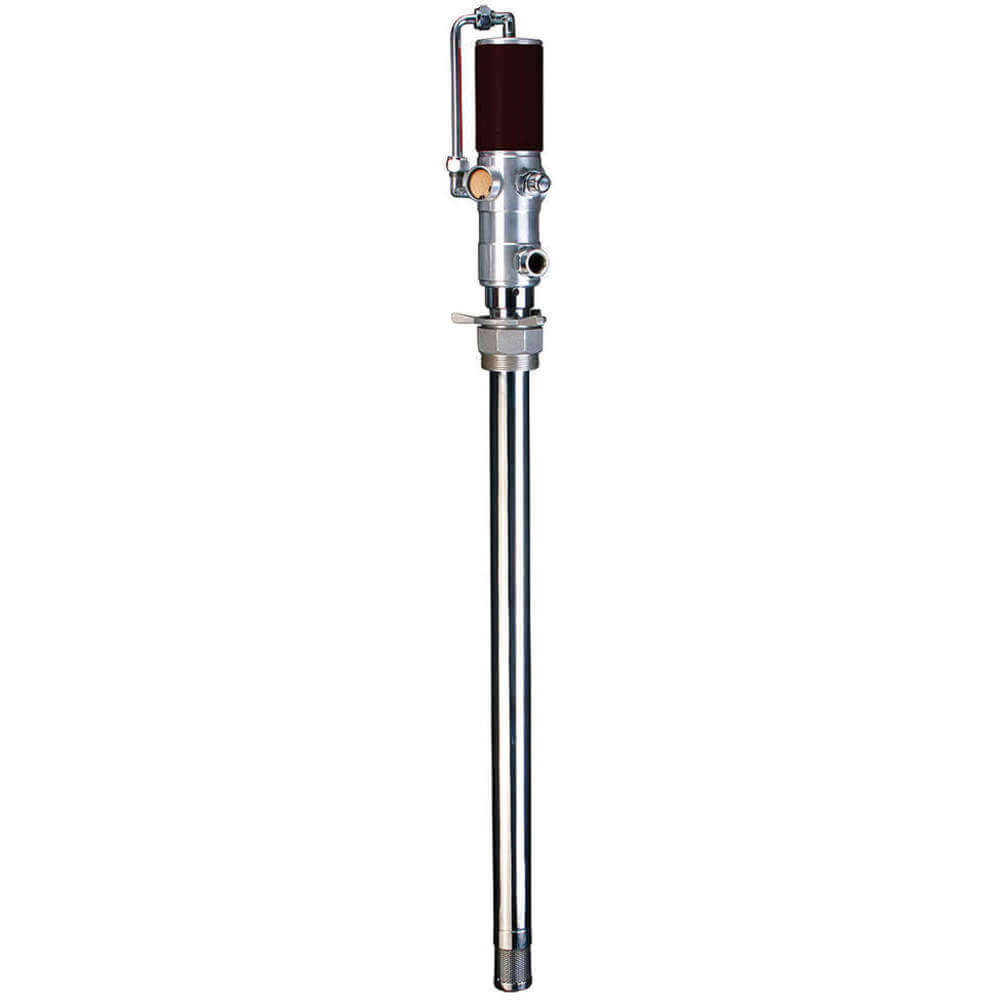

Item | Drum Pump |
Action Type | Reciprocating Action |
Adapter Material | Aluminum, Zinc |
Adapter Type | Sliding Bung With 2" Drum Thread |
Air Outlet Size | 1 3/8" |
Compatible Chemicals | Automatic Transmission Fluid, Motor Oil |
Cylinder Material | Aluminum, Steel |
Def Compatible | No |
Delivers | 850 cPS |
Diesel Exhaust Fluid Compatible | No |
For Container Size | 55 gal. |
For Container Type | Drum |
For Media Type | Automatic Transmission Fluid, Motor Oil |
For Use With | Medium To High Viscosity Oils (Up To Sae 130 Oils) For Dispensing Up To 30 Meters Away |
Gasket Material | Buna N |
Housing Material | Aluminum, Brass, Steel |
Includes | Pump With Bung Adaptor, Nipple For Connecting Air Filter, Suction Tube |
Includes Bung Adapter | Yes |
Includes Discharge Hose | No |
Includes Nozzle | No |
Includes Spout | No |
Includes Suction Tube | Yes |
Inlet Size | 1/4" |
Inlet Type | FNPT |
Internal Parts Material | Aluminum, Brass, Nitrile, Polyurethane, Steel, Turcite |
Max. Air Inlet Pressure | 145 psi |
Max. Air Pressure | 150 psi |
Max. Flow Rate | 3.7 GPM |
Max. Flow Rate For Oil | 3.7 GPM |
Max. Head | 34 ft. |
Max. Liquid Temp. | 140°F |
Max. Oil Flow | 3.7 GPM |
Max. Outlet Pressure | 450 psi |
Max. Pressure | 150 psi |
Max. Temp. | 122°F |
Max. Viscosity | 850 cPS |
Metered | No |
Min. Air Pressure | 30 psi |
Motor Enclosure Design | Motor Housing |
Not Recommended Chemicals | Antifreeze (Coolant), Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl (Isopropanol), Lithium Grease, Methyl Ethyl Ketone (Mek), Salt Water, Sodium Hypochlorite/Bleach (To 20%) |
Outlet Size | 1 3/8" |
Outlet Type | FNPT |
Overall Height | 2 1/2" |
Overall Length | 51" |
Power Source | Air |
Ratio | 31 |
Seal Material | Nitrile, Polyurethane, Turcite , Polyurethane, Turcite |
Self Priming | Yes |
Self-priming | Yes |
Suction Tube Length | 37 3/8" , 37" |
Type | Air Operated |
Wetted Materials | Aluminum, Brass, Buna N, Polyurethane, Steel, Turcite, Zinc |
Width | 2 1/2" |
Air Inlet Size | 1/4" FNPT |
Discharge Connection Type | FNPT |
Housing Material - Pumps | Aluminum, Brass, Steel |
Max. Fluid Temp. | 140°F |
Max. Head - Pumps | 26 ft. |
Motor Enclosure | Motor Housing |
Pump Package Type | Basic Pump Without Discharge Hose |
