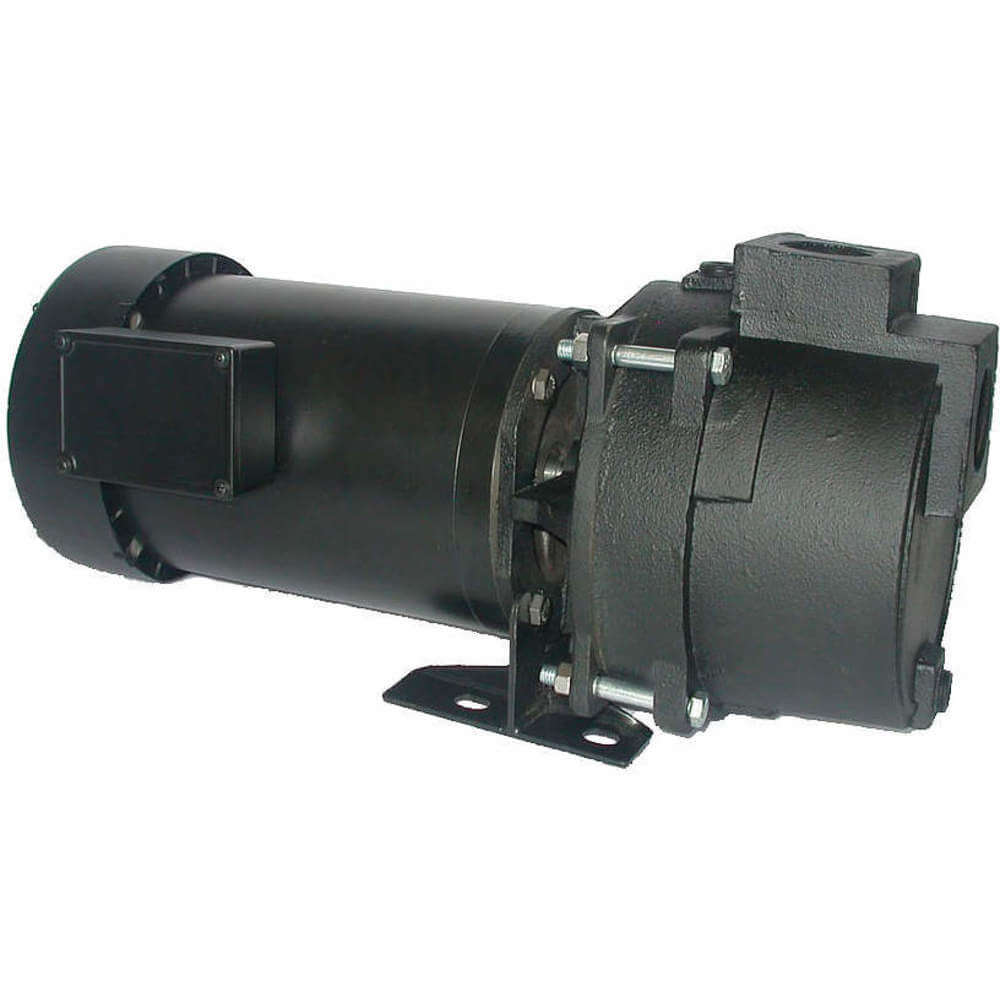

| Item | Sprinkler/Booster Pump |
| Amps | 4.8/9.7-10.6A |
| Bearing Type | Double Shielded Ball |
| Best Efficiency Flow | 40 GPM |
| Best Efficiency Flow Range @ Head | 48-30 GPM @ 80-130 Ft |
| Best Efficiency Flow Rate | 40 GPM |
| Best Efficiency Flow Rate @ Head | 40 GPM @ 105 ft. |
| Best Efficiency Head | 105 ft. |
| Case Pressure (maximum) | 150 psi |
| Compatible Discharge Pipe Size | 1 1/2" |
| Compatible Intake Pipe Size | 1 1/2" |
| Drain Plug | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Feet Of Head (minimum) | 10 ft. |
| Flow Rate @ 10 Psi | 62 GPM |
| Flow Rate @ 15 Psi | 61 GPM |
| Flow Rate @ 2 Ft. | 65 GPM |
| Flow Rate @ 20 Psi | 59 GPM |
| Flow Rate @ 25 Psi | 55 GPM |
| Flow Rate @ 30 Psi | 52 GPM |
| Flow Rate @ 35 Psi | 48 GPM |
| Flow Rate @ 40 Psi | 45 GPM |
| Flow Rate @ 45 Psi | 41 GPM |
| Flow Rate @ 50 Psi | 36 GPM |
| Flow Rate @ 60 Psi | 28 GPM |
| For Media Type | Non-Flammable Liquids |
| For Use With | Nonflammable Liquids Compatible With Pump Component Materials |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 2 Ft. | 65 GPM |
| Height | 9 1/4" |
| Housing Material | Cast Iron |
| Housing Material - Pumps | Cast Iron |
| Hp | 2 hp |
| Hp - Pumps | 2 hp |
| Impeller Material | Stainless Steel |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Pressure | 75 psi |
| Inlet Size | 1 1/2" |
| Length | 18 3/4" |
| Max. Case Pressure | 150 psi |
| Max. Feet Of Head | 147 ft. |
| Max. Flow Rate | 62 GPM |
| Max. Head | 147 ft. |
| Max. Media Temp. | 180°F |
| Max. Pressure | 75 psi |
| Max. Pressure - Pumps | 75 psi |
| Max. Specific Gravity | 1 |
| Max. Suction Lift | 25 ft. |
| Maximum Flow Rate | 62 GPM |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate | 15 GPM |
| Min. Head | 10 ft. |
| Minimum Flow Rate | 15 GPM |
| Motor Ambient Temp. | 104°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Type | Three Phase |
| No. Of Stages | 2 |
| Outlet Rotation | 90° |
| Outlet Size | 1 1/2" |
| Outlet Type | NPT |
| Overall Height | 9 1/4" |
| Overall Length | 18 3/4" |
| Overall Width | 8" |
| Overload Thermal Protection | Yes |
| Phase | 3 |
| Phase - Pumps | 3 |
| Port Rotation | 90 Deg. Increments |
| Pressure Pump Type | Sprinkler Pump |
| Pump Housing Material | Cast Iron |
| Pumping Application | Dewatering Applications, Irrigation, Lawn Sprinkling, Spraying |
| Rpm | 3450 RPM |
| Screw Material | Steel |
| Seal Application | Non-Flammable Liquids Compatible With Pump Components |
| Seal Material | Buna N, Carbon Ceramic, Stainless Steel , Buna N, Carbon, Ceramic, Stainless Steel |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Service Factor | 1.2 |
| Shaft Material | Stainless Steel |
| Shut Off Length | 173 ft. |
| Shut Off Pressure | 75 psi |
| Shut Off Pressure (maximum) | 75 psi |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Stages | 2 |
| Suction Lift | 25 ft. |
| Suction Lift (maximum) | 25 ft. |
| Voltage | 208/230/460V AC |
| Volute Material | Cast Iron |
| Wetted Material | Buna N, Carbon Ceramic, Cast Iron, Stainless Steel , Carbon, Cast Iron, Ceramic, Stainless Steel |
| Wetted Materials | Buna N, Carbon, Cast Iron, Ceramic, Stainless Steel |
| Width | 8" |
| Connection Type | NPT |
| Flow Rate (minimum) | 15 GPM |
| Manufacturer Warranty Length | 1 yr. |
| Maximum Suction Lift | 25 ft. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Priming | Self Priming |
| Standards | CSA |
| Thermal Overload Protection | Yes |
