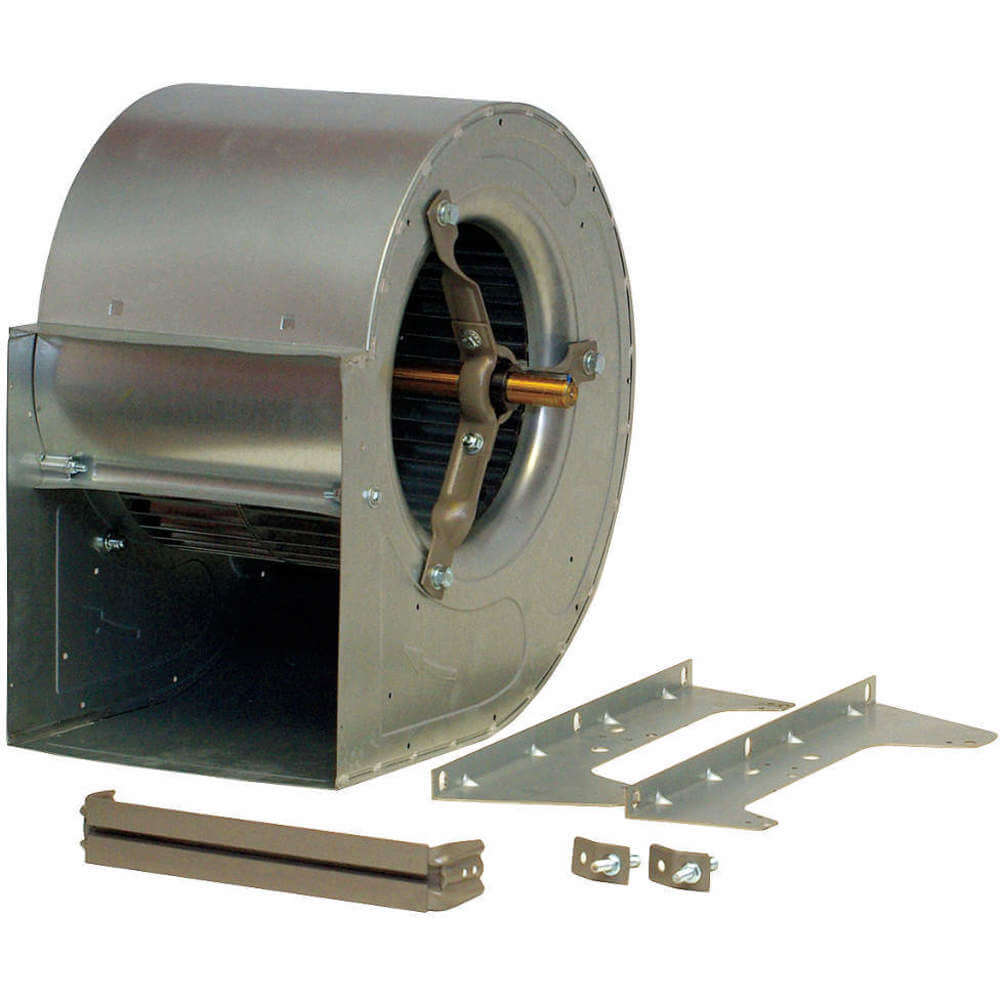

| Item | Blower |
| Amca Fan Class | Not Rated |
| Application | Air Conditioning, Exhausting, General Ventilation, Heating |
| Assembly | Unassembled |
| Bearing Type | Ball |
| Brake Horsepower | Not Applicable |
| Chemical Resistant | No |
| Compatible Speed Control | Not Applicable |
| Corrosion Resistant | Yes |
| Current | Not Applicable |
| Discharge Height | 7" |
| Discharge Height (in.) | 7" |
| Discharge Position | Bottom Horizontal |
| Discharge Width | 10 1/2" |
| Discharge Width (in.) | 10.5" |
| Drive Type | Belt Drive |
| Electrical Connection | Not Applicable |
| Flange Size | Not Applicable |
| For High-static Pressure Applications | Yes |
| For Location | Indoor |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Hazardous Location Application | No |
| Hazardous Location Specification | Not Applicable |
| Housing Color | Silver |
| Housing Depth | 16 9/16" , 16.562" , 16.7" |
| Housing Finish | Galvanized |
| Housing Height | 17.3" , 18 13/16" , 18.812" |
| Housing Material | Steel |
| Housing Width | 10 1/2" |
| Includes | Isolation Grommet, Motor Mounting Bracket, Mounting Hardware |
| Includes Drive Package | No |
| Includes Motor | No |
| Includes Mounting Hardware | Yes |
| Inlet Diameter | 9 1/8" |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 150°F |
| Max. Motor Hp | 2 hp |
| Maximum Motor Speed | Not Applicable |
| Min. Motor Hp | 1/4 hp |
| Minimum Fan Speed | 565 RPM |
| Minimum Motor Speed | Not Applicable |
| Motor Frame Designation | Not Applicable |
| Motor Location | Not Applicable |
| Mount Type | Multiposition |
| Mounting | Multiposition , Multipostion |
| Mounting Orientation | Multiposition |
| No. Of Inlets | 2 |
| Number Of Discharge Positions | 4 |
| Oem Replacement | Not Applicable |
| Outlet Dia. | Not Applicable |
| Outlet Height | 11 3/8" , 7" |
| Outlet Shape | Rectangular |
| Outlet Width | 10 1/2" , 11 3/8" |
| Overall Depth | 16 5/8" |
| Overall Height | 17 3/8" |
| Overall Width | 15 3/4" |
| Replacement For | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Shaft Dia. | 3/4" |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Applicable |
| Speed Controllable | No |
| Thermal Overload Protection | Not Applicable |
| Type | Belt Drive, Double Inlet Forward Curve, Less Motor |
| Wheel Bore Diameter | 3/4" |
| Wheel Dia. | 11 1/8" |
| Wheel Material | Steel |
| Wheel Material Finish | Galvanized |
| Wheel Width | 7 5/8" |
| Drive Package With Motor Included? | No |
| Features | it Offers Precision Ground Shafting with Both Keyways and Flats for a Wide Range of Drives and Hp, This Blower Has Prelubricated, Sealed Ball Bearings with Rubber Isolators and a Dynamically Balanced Forward Curved Wheel |
| For Air Type | General/Clean |
| Housing Material Finish | Galvanized |
| Manufacturer Warranty Length | 1 yr. Limited |
| Maximum Airflow | 3440 CFM |
| Maximum Ambient Temperature | 104°F |
| Maximum Fan Speed | 1200 RPM |
| Maximum Inlet Air Temperature | 150°F |
| Maximum Motor Horsepower | 2 hp |
| Maximum Static Pressure | 1 1/2 in. wc |
| Minimum Airflow | 1150 CFM |
| Minimum Ambient Temperature | -4°F |
| Minimum Motor Horsepower | 1/4 hp |
| Number Of Inlets | 2 |
| Outlet Type | Non Flanged |
| Rotation | CW/CCW |
| Shaft Diameter | 3/4" |
| Wheel Diameter | 11 1/8" |
| Wheel Type | Forward Curved |
