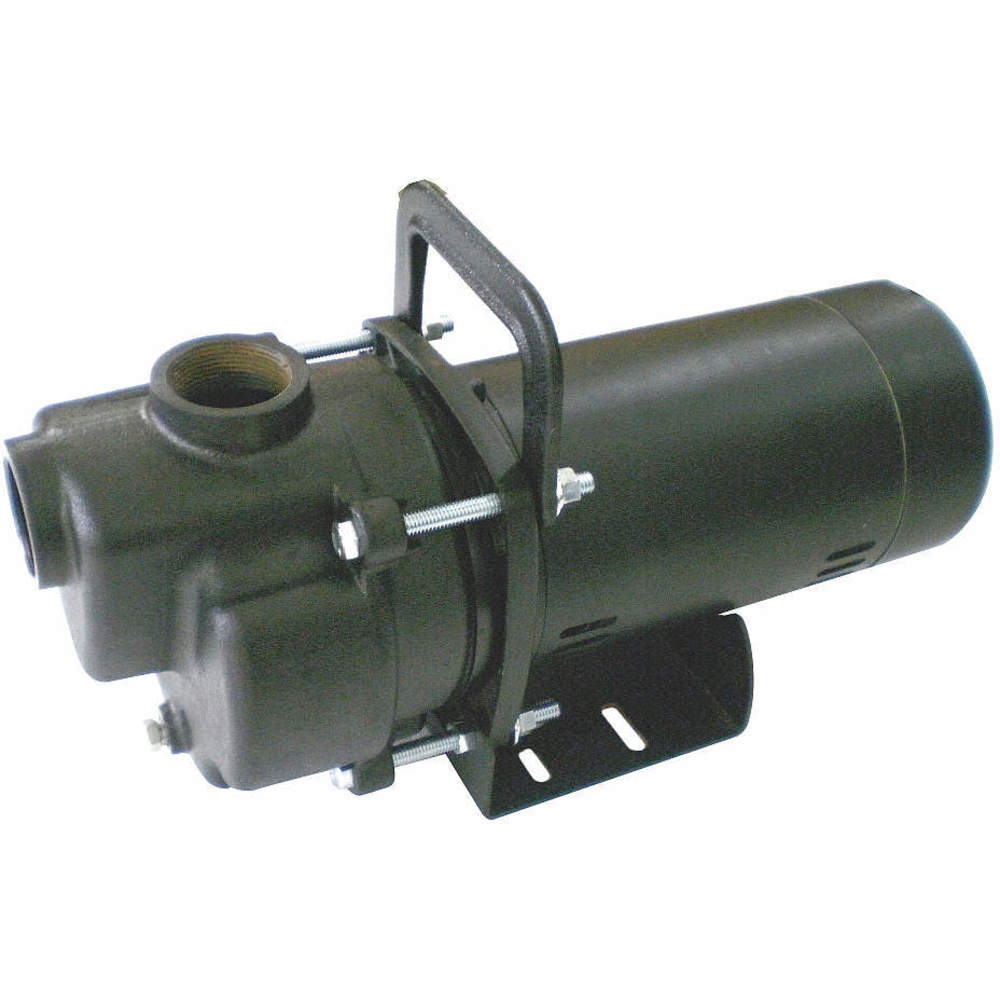

| Item | Centrifugal Pump |
| Amps | 14.6/7.3A |
| Bearing Type | Ball |
| Best Efficiency Flow Range @ Head | 21 to 50 GPM @ 40 to 25 ft. |
| Best Efficiency Flow Rate @ Head | 43 GPM @ 30 ft. |
| Best Efficiency Head | 25 ft. to 40 ft. |
| Drain Plug | Easily Accessible |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 65 GPM |
| Flow Rate @ 10 Psi | 52.8 GPM |
| Flow Rate @ 15 Psi | 33.5 GPM |
| Flow Rate @ 2 Ft. | 72 GPM |
| Flow Rate @ 20 Ft. | 55 GPM |
| Flow Rate @ 20 Psi | 6.6 GPM |
| Flow Rate @ 25 Ft. | 51 GPM |
| Flow Rate @ 30 Ft. | 43 GPM |
| Flow Rate @ 40 Ft. | 22 GPM |
| Flow Rate @ 5 Ft. | 69 GPM |
| Flow Rate Of Water @ 15 Ft. | 61 GPM |
| Flow Rate Of Water @ 25 Ft. | 51 GPM |
| For Use With Potable Systems | No |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 10 Ft. | 65 GPM |
| Gpm Of Water @ 2 Ft. | 72 GPM |
| Gpm Of Water @ 20 Ft. | 55 GPM |
| Gpm Of Water @ 30 Ft. | 43 GPM |
| Gpm Of Water @ 40 Ft. | 22 GPM |
| Gpm Of Water @ 5 Ft. | 69 GPM |
| Grade | Grade 304 |
| Height | 9.9" |
| Housing Material | Cast Iron |
| Hp | 1 hp |
| Impeller Material | Cast Iron |
| Impeller Type | Semi Closed |
| Inlet Pressure | 64 psi |
| Inlet Size | 1 1/2" |
| Length | 17" |
| Max. Case Pressure | 85 psi |
| Max. Flow Rate | 72 GPM |
| Max. Flow Rate @ Head | 71 GPM @ 2 ft. |
| Max. Head | 48 ft. |
| Max. Media Temp. | 180°F |
| Max. Pressure | 21 psi |
| Max. Solid Dia. | 3/8" |
| Max. Suction Lift | 25 ft. |
| Media Type | Non Abrasive Liquids, Non Flammable Liquids |
| Min. Flow Rate | 22 GPM |
| Min. Flow Rate @ Head | 2 GPM @ 47 ft. |
| Min. Gpm @ Head | 2 GPM @ 47 ft. |
| Min. Head | 2 ft. |
| Min. Media Temp. | 40°F |
| Motor Enclosure Design | Open Dripproof |
| Motor Type | Permanent Split Capacitor |
| Outlet Rotation | 90° |
| Outlet Size | 1 1/2" |
| Outlet Type | NPT |
| Phase | 1 |
| Port Rotation | Four Position |
| Rpm | 3450 RPM |
| Screw Material | Carbon Steel |
| Seal Application | Non-Flammable Liquids Compatible With Pump Components |
| Seal Material | Viton |
| Seal Type | Mechanical |
| Shaft Material | Stainless Steel |
| Specific Gravity | 1 |
| Type | Transfer, Self Priming |
| Voltage | 115/230V AC |
| Wetted Material | Carbon Ceramic, Cast Iron, Stainless Steel, Viton |
| Width | 7 2/7" |
| Best Efficiency Flow | 71 GPM |
| Compatible Discharge Pipe Size | 1 1/2" |
| Compatible Intake Pipe Size | 1 1/2" |
| Compatible With Media Type | Non-Abrasive Liquids, Non-Flammable Liquids |
| Connection Type | NPT |
| Discharge Rotation | 90° Increments |
| Discharge Type | NPT |
| Feet Of Head (minimum) | 2 ft. |
| Flow Rate (maximum) | 72 GPM |
| Flow Rate (minimum) | 22 GPM |
| Horsepower | 1 hp |
| Maximum Feet Of Head | 48 ft. |
| Maximum Flow Rate @ 10 Feet Of Head | 65 GPM |
| Maximum Flow Rate @ 15 Feet Of Head | 61 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 55 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 43 GPM |
| Maximum Flow Rate @ 40 Feet Of Head | 22 GPM |
| Maximum Flow Rate @ 5 Feet Of Head | 69 GPM |
| Maximum Suction Lift | 25 ft. |
| Media Temperature (minimum) | 40°F |
| Motor Enclosure | Open Dripproof |
| Nameplate Voltage | 115/230V AC |
| Overall Height | 9.9" |
| Overall Length | 17" |
| Overall Width | 7.3" |
| Pump Housing Material | Cast Iron |
| Rpm (maximum) | 3450 RPM |
| Solid Diameter (maximum) | 0.38" |
| Standards | CCSAUS LISTED |
