DAYTON 3XA84 Dc Gearmotor 180 Rpm 90v Tenv | AD2ZQV

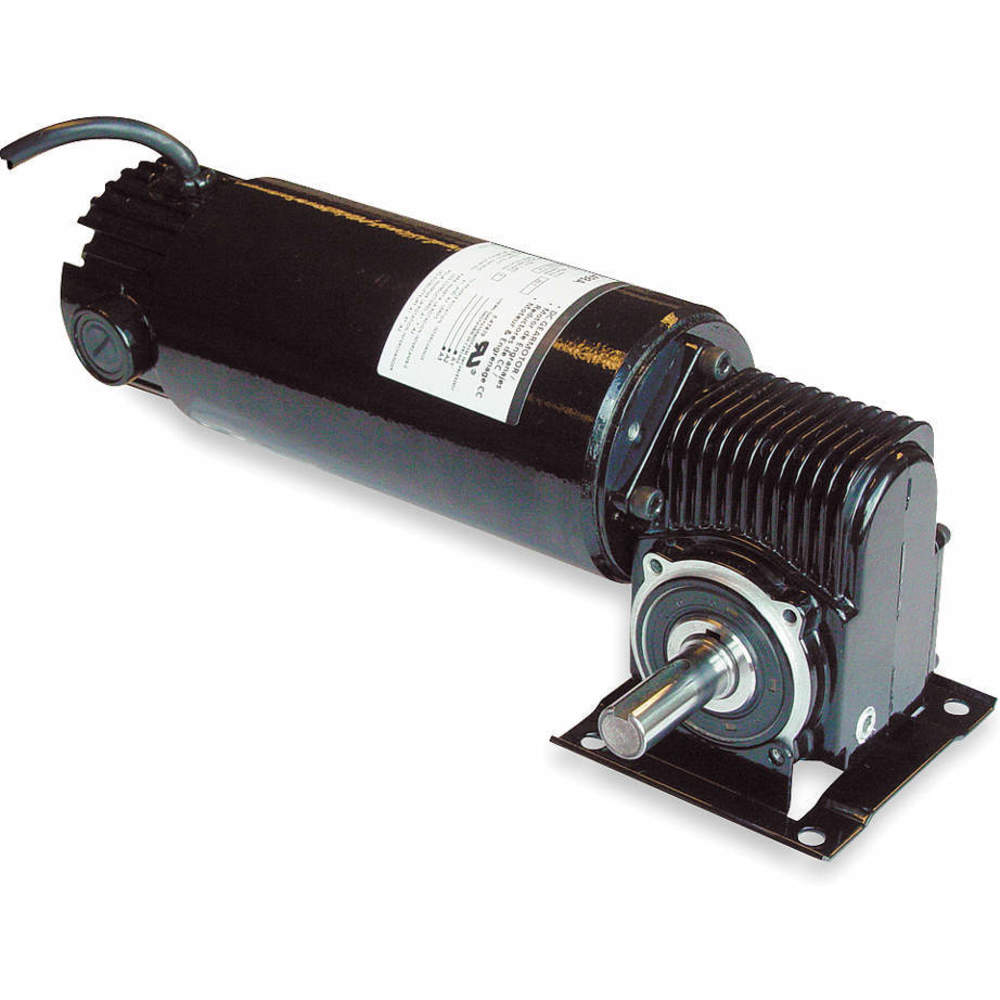

DAYTON 3XA84 Dc Gearmotor 180 Rpm 90v Tenv

Item: AD2ZQV Model: 3XA84
In Stock

Get it by Tuesday, Jun 10

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€735.79 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDC Gearmotor
Bearing TypeOversized Ball
Brush TypeExternally Replaceable
FinishBlack Gloss Powder Coat
Full Load Amps2.33A
Gear CaseDie Cast Aluminum
Gear Case MaterialDie Cast Aluminum
Gear MaterialBronze Alloy, Hardened Steel , Bronze, Hardened Steel Worm
Gear Ratio101 , 10:1
Gear TypeWorm
Gearmotor EnclosureTotally Enclosed Nonventilated
Gearmotor Mounting PositionAll Angle
Gearmotor Shaft OrientationRight Angle
Housing MaterialDie Cast Aluminum
Input Hp1/4 hp
Insulation ClassClass F
Keyway Size3/16" x 1"
LubricationPermanent Heavy Fluid Gear Oil
Max. Ambient Temp.40°C
Motor EnclosureTotally Enclosed Non Ventilated , Totally Enclosed Nonventilated
Motor TypePermanent Magnet DC
MountingAll Position
Mounting OrientationAny Angle
Nameplate Rpm180 RPM
Output Shaft Dia.5/8"
Output Shaft Length1 1/2"
Overhung Load175 lbs.
Replaceable Motor BrushesYes
Reversible Shaft OutputNo , Yes
RotationReversible
Rpm Range151-200 RPM
SealsLip Type On Input, Output Shaft
Shaft Dia.5/8"
Shaft Length1 1/2"
Shaft OrientationRight Angle
Tachometer FeedbackYes
Thermal ProtectionNone
Voltage90V DC
Full Load Current2.33A
Housing Material FinishPowder Coated Gloss Black
Keyway Type0.1875 sq. in. x 1"
Maximum Torque55 lbs.-in.
Nameplate Speed180 RPM
Operating Voltage90V DC
Output Shaft Diameter5/8"
Overhung Load Capacity175 lbs.-ft.
Seal TypeLip Type On Input And Output Shaft
StandardsC-UL RECOGNIZED, UL RECOGNIZED

Shipping Info:

Ship weight (kg) 8.055
Ship height (cm)16.51
Ship length (cm)38.1
Ship width (cm)20.32
HS code8501314000
Country of OriginUS
