DAYTON 1LPK8 Dc Gearmotor 13 Rpm 90v Tenv | AB2EWR

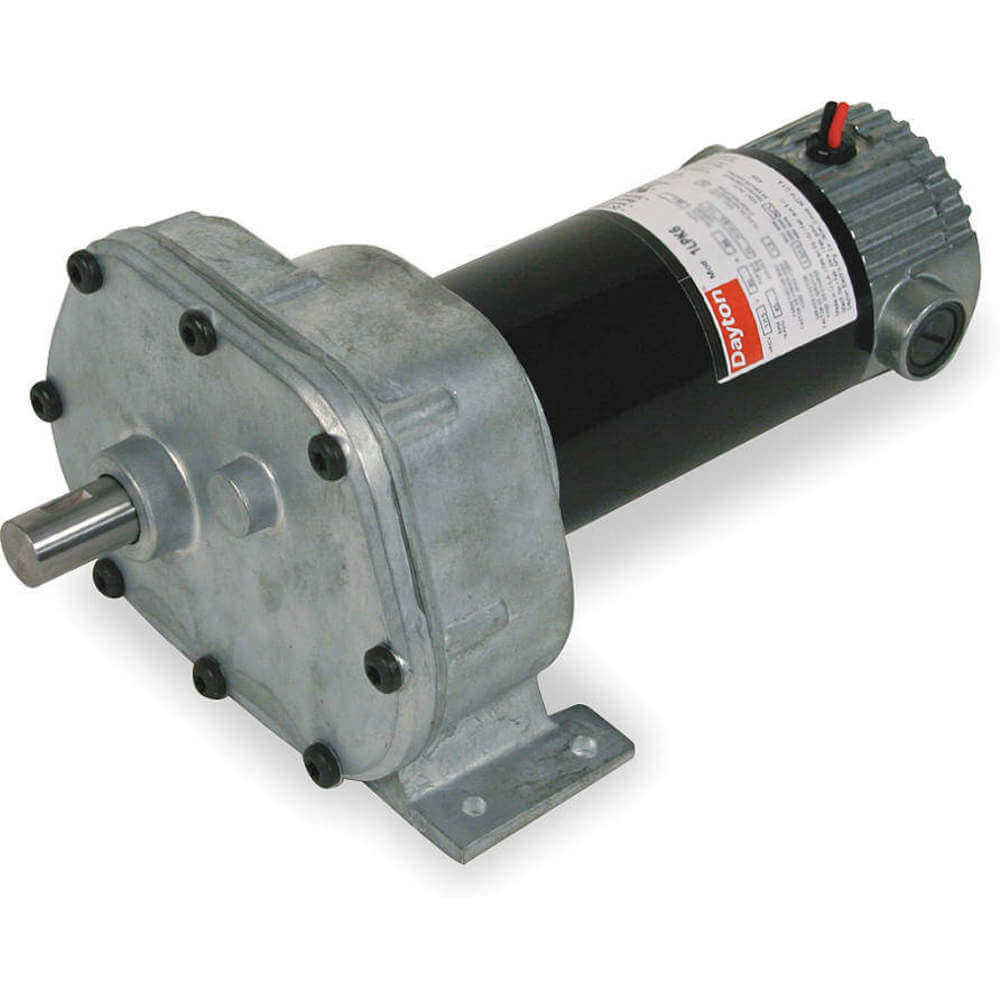

DAYTON 1LPK8 Dc Gearmotor 13 Rpm 90v Tenv

Item: AB2EWR Model: 1LPK8
In Stock

Get it by Monday, Jun 16

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€558.22 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDC Gearmotor
Bearing TypeBall On Motor , Porous Bronze Sleeve On Case, Ball On Motor
Brush TypeExternally Replaceable
FinishUnpainted
Full Load Amps0.84A
Gear CaseDie Cast Zinc
Gear Case MaterialDie Cast Zinc
Gear MaterialHardened Steel, Phenolic
Gear Ratio135:1
Housing MaterialDie Cast Zinc
Input Hp1/15 hp
Insulation ClassClass F
Keyway Size#605
Length Less Shaft8 1/2"
LubricationGrease Filled
Max. Ambient Temp.40°C
Motor EnclosureTotally Enclosed Non Ventilated
Motor TypePermanent Magnet DC
MountingAll Position
Nameplate Rpm13 RPM
Overall Length10"
Overhung Load250 lbs.
Reversible Shaft OutputNo
RotationReversible
Rpm Range0-15 RPM
ShaftSingle Output
Shaft OrientationParallel
Thermal ProtectionNone
Voltage90V DC
Full Load Current0.84A
Housing Material FinishUnpainted
Input Horsepower1/15 hp
Keyway TypeWoodruff #605
Maximum Ambient Temperature40°C
Maximum Torque250 lbs.-in.
Mounting OrientationAny Angle
Nameplate Speed13 RPM
Operating Voltage90V DC
Output Shaft Diameter3/4"
Output Shaft Length1 1/2"
Overhung Load Capacity250 lbs.-ft.
Replaceable Motor BrushesYes
Seal TypeO-Ring Type on Output Shaft
StandardsC-UL RECOGNIZED, UL RECOGNIZED

Shipping Info:

Ship weight (kg) 6.3585
Ship height (cm)16.26
Ship length (cm)37.59
Ship width (cm)21.08
HS code8501312000
Country of OriginUS
