DAYTON 1LNG9 Dc Gearmotor 17 Rpm 12v Tenv | AB2ENJ

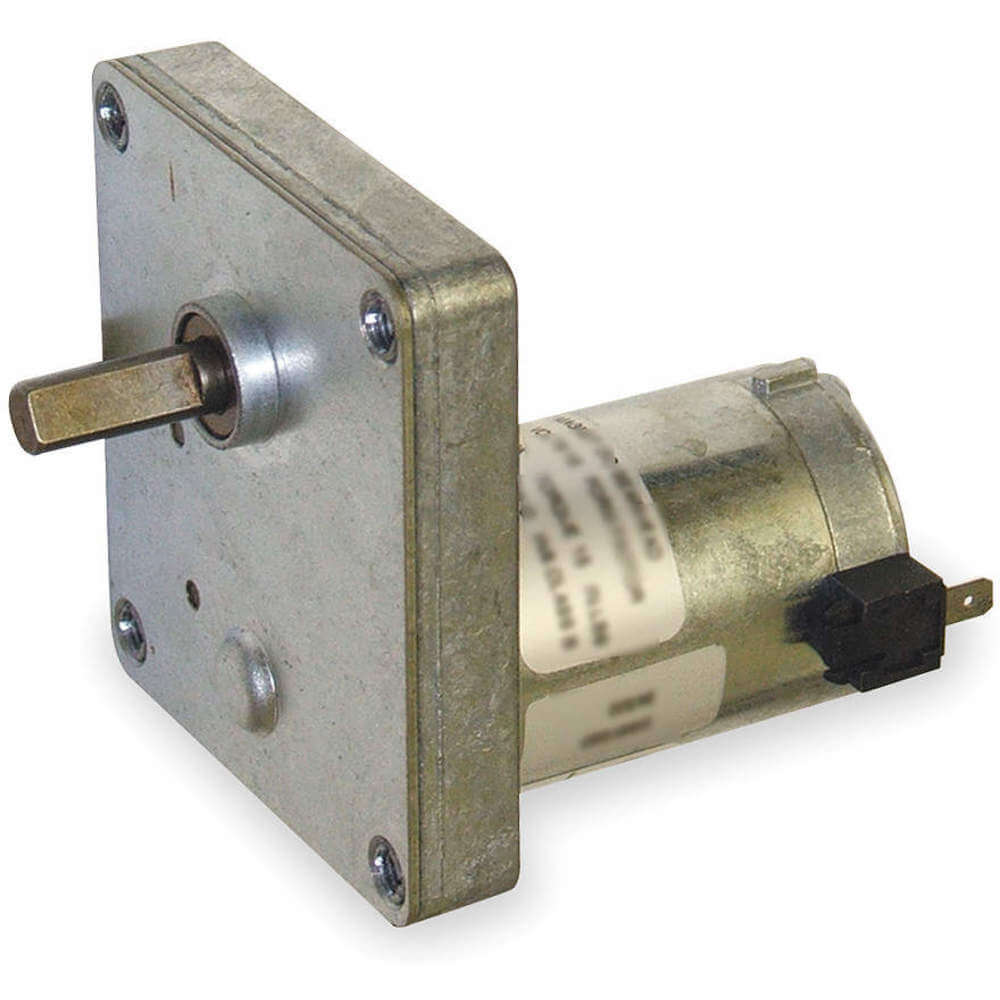

DAYTON 1LNG9 Dc Gearmotor 17 Rpm 12v Tenv

Item: AB2ENJ Model: 1LNG9
In Stock

Get it by Tuesday, Jun 17

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€99.28 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDC Gearmotor
Bearing TypePorous Bronze On Gear Case And Motor
Dimension A2.97"
Dimension B18/25"
Full Load Amps0.75A
Gear CaseDie Cast Zinc
Gear Case MaterialDie Cast Zinc
Gear Ratio2541 , 254:1
Gear TypeSpur
Gearmotor EnclosureTotally Enclosed Nonventilated
Gearmotor Mounting PositionAll Angle
Gearmotor Shaft OrientationParallel
Housing MaterialDie Cast Zinc
Input Hp1/160 hp , 3/500 hp
Length Less Shaft3"
LubricationGrease Filled
Max. Ambient Temp.40°C
Motor EnclosureTotally Enclosed Non Ventilated , Totally Enclosed Nonventilated
Motor TypePermanent Magnet DC
MountingAll Position
Mounting OrientationAny Angle
Nameplate Rpm17 RPM
Output Shaft Dia.5/16"
Output Shaft Length13/16"
Overall Length3.81" , 3.812"
Overhung Load13 lbs.
Reversible Shaft OutputNo
RotationReversible
Rpm Range16-30 RPM
Shaft OrientationParallel
Thermal ProtectionNone
Voltage12V DC
ApplicationFood Processing And Restaurant Equipment, Switch Gear, Valve Actuators, Vending
Full Load Current0.75A
Input Horsepower1/160 hp
Maximum Ambient Temperature40°C
Maximum Torque16 lbs.-in.
Nameplate Speed17 RPM
Operating Voltage12V DC
Output Shaft Diameter5/16"
Overhung Load Capacity13 lbs.-ft.

Shipping Info:

Ship weight (kg) 0.7605
Ship height (cm)11.18
Ship length (cm)24.13
Ship width (cm)16.26
HS code8501104060
Country of OriginMX
