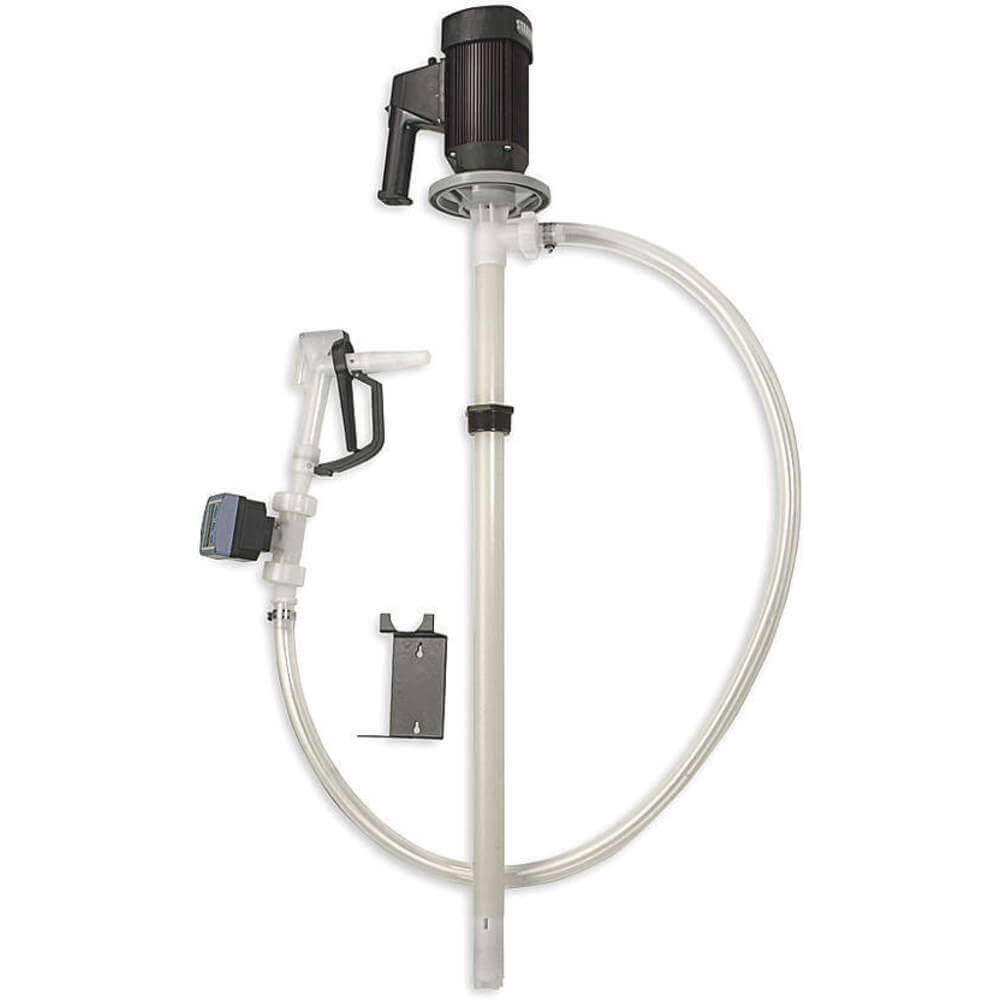

| Item | Electric Operated Drum Pump |
| Action Type | Centrifugal |
| Adapter Material | Polypropylene |
| Adapter Size | 2" |
| Adapter Type | Bung |
| Bung Connection Dia. | 2" |
| Bung Connection Size | 2" |
| Compatible Chemicals | Acetic Acid 20%, Acetic Acid 80%, Ammonia (Liquids), Ammonium Hydroxide, Calcium Chloride, Chromic Acid 30%, Chromic Acid 50%, Citric Acid 50%, Deionized Water, Ethylene Glycol, Fresh Water, Glycerin, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Mur |
| Cord Length | 16 ft. |
| Def Compatible | No |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Hose Barb |
| Discharge Tube Inside Dia. | 1" |
| Discharge Tube Length | 6 ft. |
| Discharge Tube Outlet I.d. | 1" |
| Discharge Tube Outlet O.d. | 1 1/2" |
| Discharge Tubing Material | PVC |
| Display Qty | 1 |
| Duty Cycle | Intermittent |
| Flow Rate | 32 GPM |
| Food Grade | No |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Acetic Acid, Ammonia, Ammonium Hydroxide, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Glycerin, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Trichlorethylene, Water |
| For Use On | 5, 15, 30 And 55 Gal. Drums |
| For Use With | 9510 |
| Frequency | 50/60 Hz |
| Full Load Amps | 8.5A |
| Height | 39" |
| Hose Cover Material | Polyethylene |
| Hose I.d. | 1" |
| Hose Inside Dia. | 1" |
| Hose Length | 72" |
| Hose Material | Polyethylene |
| Hose Outside Dia. | 1 1/2" |
| Hose Tube Material | Polyethylene |
| Housing Material | Kynar |
| Includes | Suction Tube |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | Yes |
| Includes Nozzle | Yes |
| Includes Spout | No |
| Includes Suction Tube | Yes |
| Inlet Size | 1 3/5" |
| Length | 52" |
| Max. Flow Rate | 13 GPM |
| Max. Flow Rate For Oil | 7 GPM |
| Max. Flow Rate For Water | 35 GPM |
| Max. Head | 36 ft. |
| Max. Head Pressure | 16 psi |
| Max. Oil Flow | 7 GPM |
| Max. Outlet Pressure | 16 psi |
| Max. Pressure | 16 psi |
| Max. Temp. | 175°F |
| Max. Viscosity | 300 cPS |
| Media Type | Acetic Acid, Ammonia, Ammonium Hydroxide, Bleach, Calcium Chloride, Chromic Acid, Citric Acid, Ethylene Glycol, Glycerin, Hydrochloric Acid, Hydrofluoric Acid, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Trichlorethylene, Water |
| Metered | Yes |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Hp | 1 1/10 hp |
| Motor Speed | 10000 RPM |
| Motor Type | AC Brush |
| Noise Level | 88 dB , 88 dBA |
| Nominal Voltage | 110V AC |
| Not Recommended Chemicals | Acetic Acid (Glacial), Acetone, Cyclohexane, Def, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Formaldehyde 40%, Formic Acid, Gasoline, Heptane, Hexane, Isopropyl (Isopropanol), Kerosene, Lacquer Thinners, Methyl (Methanol), Methyl Ethyl Ketone (Mek) |
| Nozzle Material | PVDF |
| Nozzle Operation | Manual |
| Operation Type | Manual |
| Outlet Material | PVC |
| Outlet Type | Hose Barb |
| Overall Length | 50" |
| Phase | 1 |
| Plug Type | NEMA 5-15-P |
| Power Source | Electric |
| Pump Package Type | Metered Dispensing With Manual Shut-Off |
| Runs Dry | Yes |
| Seal Material | Sealless |
| Self Priming | Yes |
| Self-priming | Yes |
| Spout Connection Type | Hose Barb |
| Suction Tube I.d. | 1 3/8" |
| Suction Tube Inside Dia. | 1 3/8" |
| Suction Tube Length | 39" |
| Suction Tube Material | Kynar |
| Suction Tube O.d. | 1 5/8" |
| Suction Tube Outside Dia. | 1 5/8" |
| Suction Tube Type | Centrifugal |
| Thermal Protection | Yes |
| Variable Speed | Yes |
| Voltage Rating | 115V AC |
| Adapter Connection Type | MNPT |
| Agency Compliance | ETL Recognized Component(Motor Only) |
| Discharge Tube Outlet Id | 1" |
| Discharge Tube Outlet Od | 1 1/2" |
| Frequency (hz) | 50/60 Hz |
| Housing Material - Pumps | Kynar |
| Max. Fluid Temp. | 175°F |
| Max. Head - Pumps | 36 ft. |
| Motor Enclosure | TEFC |
| Number Of Phases | 1 |
| Rated Voltage | 115V |
| Suction Tube Id | 1 3/8" |
| Suction Tube Od | 1 5/8" |
| Wetted Materials | Carbon Graphite, Ceramic, Halar, Hastelloy C-276, Polyethylene, PVDF, Viton |
