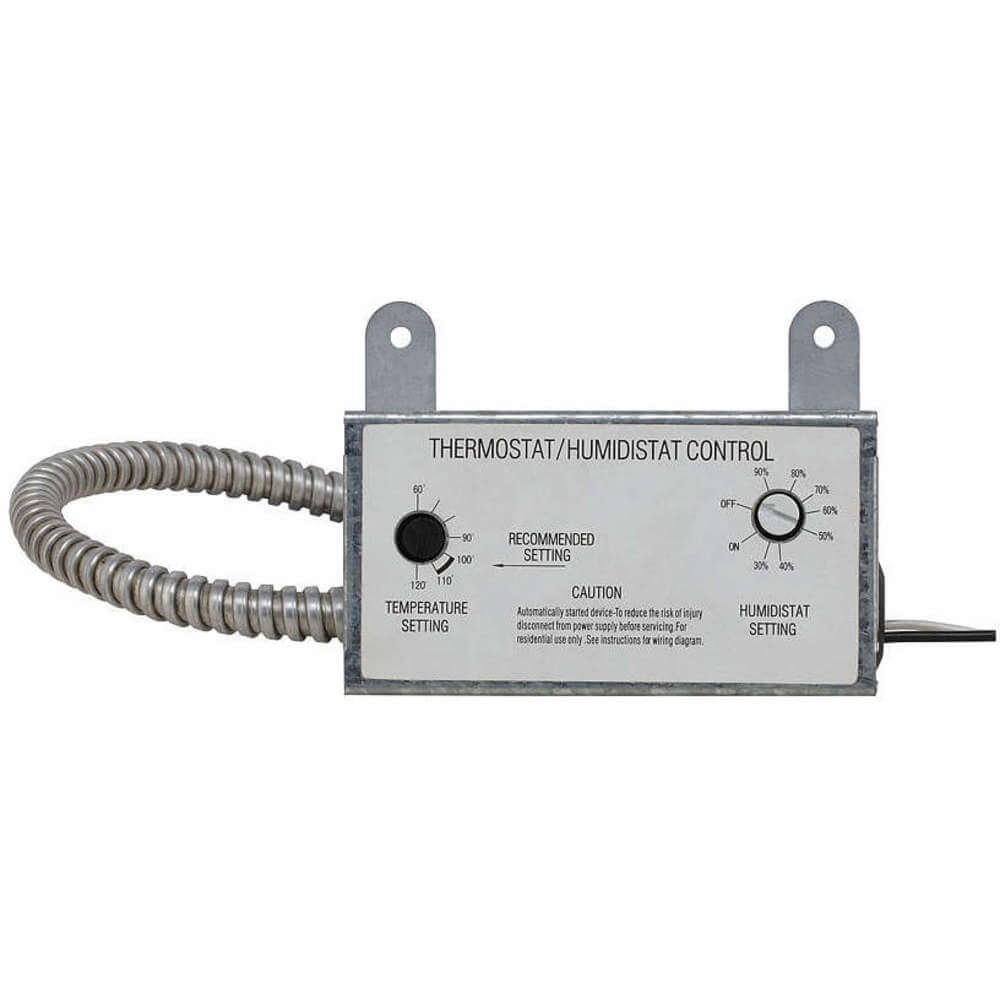

DAYTON 10N203 | AA2KET | Attic Fan Thermostat

DAYTON 10N203 Attic Fan Tstat / Humidistat, 60 - 120 deg F, Galvinised Finish

Item: AA2KET Model: 10N203
In Stock

Get it by Monday, Jun 16

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€73.62 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemAttic Fan Thermostat
ApplicationCool Only
Contact Rating Resistive @ 120v10A
Contact TypeSnap Action
Control Range+60°F to +120°F
Dehumidification ControlYes
Depth1 7/8" , 1.688"
Differential10°F
Differential TypeFixed
Display TypeAnalog
Enclosure ColorSilver
Enclosure FinishGalvanized
Fan SettingsNo Fan Setting
FinishGalvanized
For Use WithAttic Ventilators
Full Load Amps @ 120v10A , 2.5A
Height4 3/16" , 6.312"
Housing ColorGray
Housing MaterialSteel
Housing TypeStandard Housing
Humidification ControlYes
Includes Positive OffNo
Inductive Amps @ 120v10A
Input Voltage120V
Lead Length6"
Lead MaterialCopper
Lead Wire Gauge18 AWG
Locked Rotor Amps @ 120v3.4A , 3A
Maximum Operating Humidity90%
Mercury FreeYes
Minimum Operating Humidity30%
MountingSide Mount
Mounting DirectionHorizontal
Mounting Hole Di.7/32"
Number Of Cooling Stages1
Number Of Poles1
Number Of Switches2
Overall Depth1 15/16"
Overall Height4 1/4"
Overall Width6 1/4"
Sensor TypeBi Metal
ShapeRectangle
Switch ActionClose On Rise
Switch Type2 SPST
System SettingsOn
Temp. Control Range+60°F to +120°F
Temperature ScaleFahrenheit
Temperature Sensitivity-8°F to +8°F
Thermostat Heating/coolingCooling
Width5 7/8" , 6 1/4"
Compatible System TypeAttic Fan
Contact Rating120V AC
Control TypeAdjustable Screw
Electrical Connection TypeHardwired
Enclosure Nema Rating1
Frequency60 Hz
Maximum Control Temperature120°F
Maximum Operating Temperature120°F
Minimum Control Temperature60°F
Minimum Operating Temperature60°F
Mounting LocationWall
Mounting TypeSurface Mount
StandardsUL RECOGNIZED
Temperature Differential8°F
Thermostat TypeLine Voltage
Voltage120V AC

Shipping Info:

Ship weight (kg) 1.35
Ship height (cm)10.8
Ship length (cm)4.92
Ship width (cm)15.88
HS code8414596060
Country of OriginCN

Product Details:

    • Suitable for providing a high volume of air circulation and removing humidity from air
    • Automatically activates ventilator when temperature and humidity rise in room
    • Equipped with automatic reset thermal protection to protect system from excessive heat
