CONRADER D6 Discharge Valve 1/8 Inch NPT 2-15/64 Inch Length | AH9ACV 39EN87

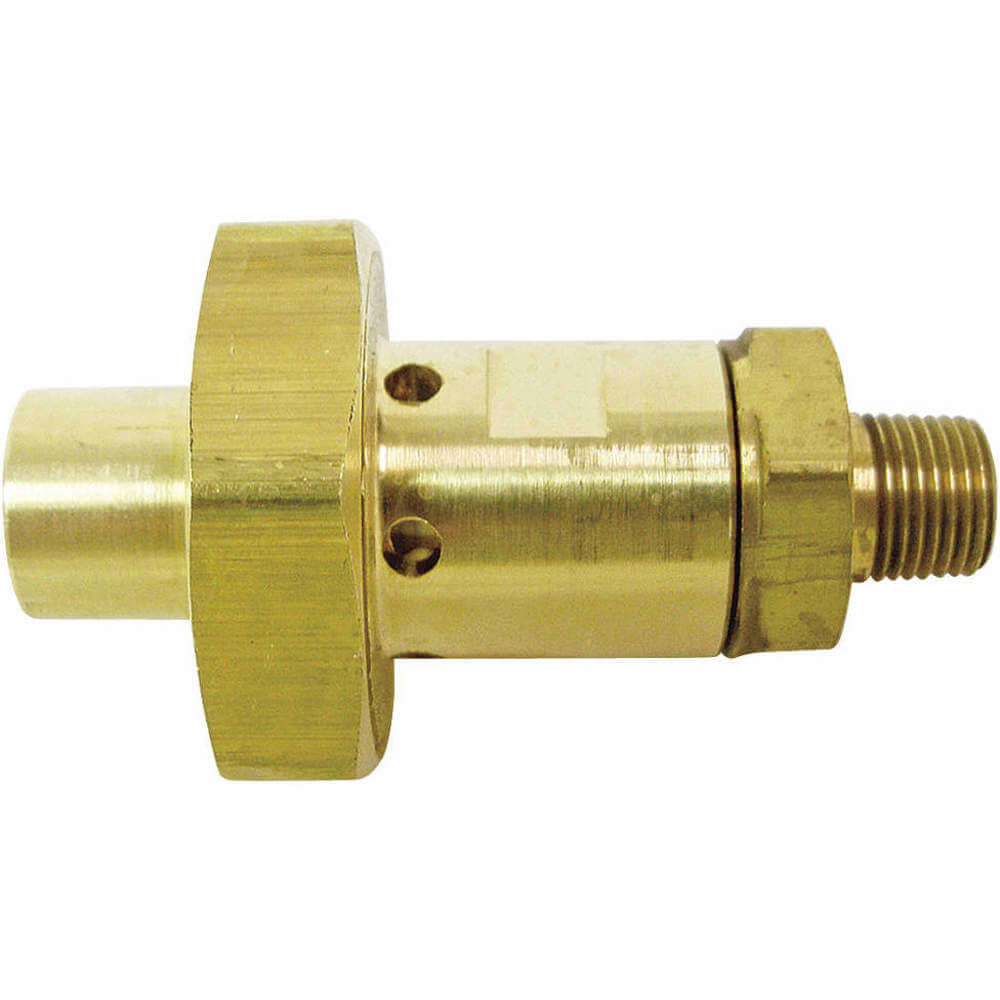

CONRADER D6 Discharge Valve 1/8 Inch NPT 2-15/64 Inch Length

Item: AH9ACV Model: D6Cross Ref: 39EN87
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€43.26 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDischarge Valve
ApplicationAir
Body MaterialBrass
Inlet GenderMale
Max. Flow Rate20 CFM
Max. Temp.400°F
Outlet GenderFemale
Outlet Size1/8"
Pressure500 psi
Spring MaterialStainless Steel
TypeUnloader
Connection TypeMNPT
Hex Size1 1/4"
Inlet Size1/8"
Inlet TypeNPT
Maximum Air Flow20 CFM
Maximum Operating Pressure500 psi
Maximum Operating Temperature400°F
O-ring MaterialSilicon, Viton
Outlet TypeNPT
Overall Depth1.25"
Overall Length2.23"
Poppet MaterialPTFE

Shipping Info:

Ship weight (kg) 0.1125
Ship height (cm)4.32
Ship length (cm)10.67
Ship width (cm)4.57
Country of OriginUS

Product Details:

    • Brass Body : Y

Product Variants

ProductModelOutlet SizeMax. Flow RatePressureBody MaterialMax. Temp.Spring MaterialPrice
CONRADER D5 Discharge Valve 500 psi 1/4 Inch NPT | AH9ACU 39EN86 D51/4"20 CFM500 psiBrass400°FStainless Steel€39.09
CONRADER DL Discharge Valve 500 psi 3-29/64 Inch Length | AH9ACW 39EN88 DL1/2"60 CFM500 psiBrass400°FStainless Steel€86.48
