ASHCROFT K17MO242C1500#XFM Pressure Transducer Range 0 To 500 Psi | AE3GVG 5DER0

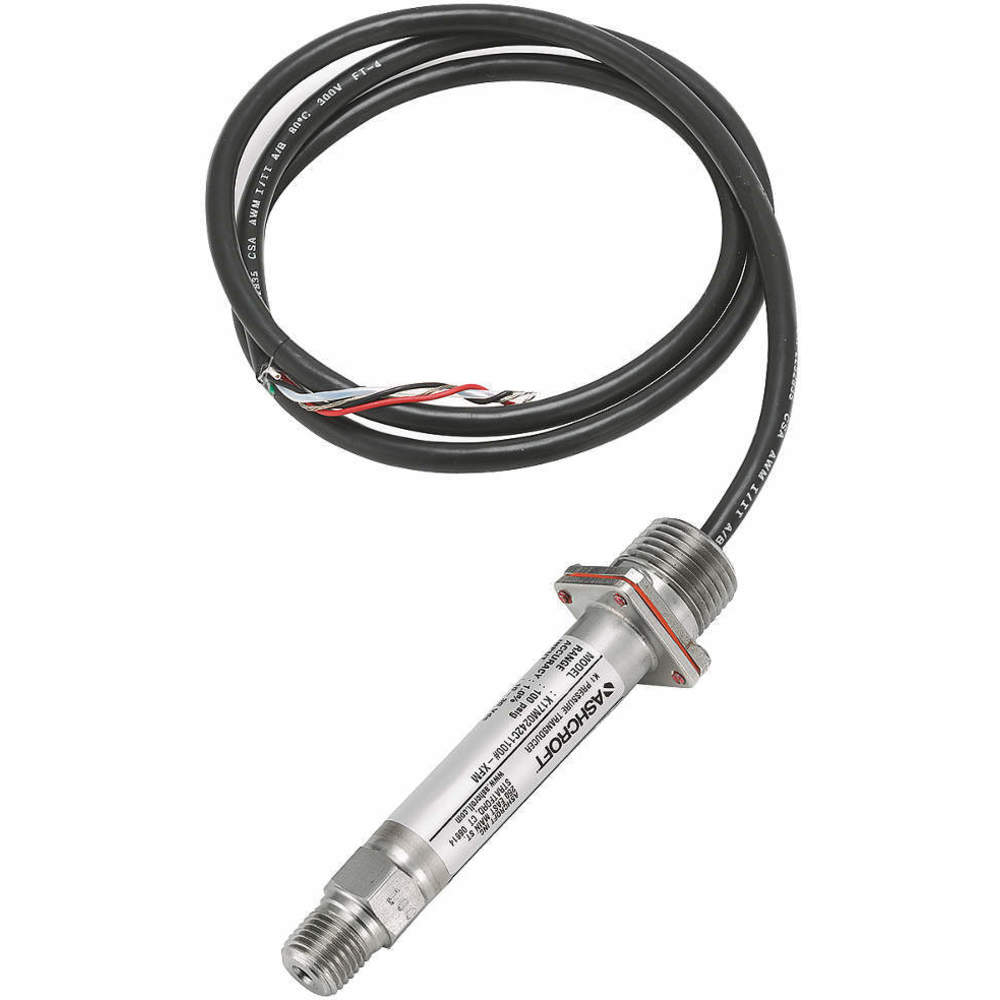

ASHCROFT K17MO242C1500#XFM Pressure Transducer Range 0 To 500 Psi

Item: AE3GVG Model: K17MO242C1500#XFMCross Ref: 5DER0
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€579.99 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPressure Transducer
Cable Length3 ft. , 36"
Compatible WithAny Process Compatible With 316 Stainless Steel
Explosion/fire ProofNo
Fitting MaterialStainless Steel
HousingStainless Steel
Housing MaterialStainless Steel
IncludesInstructions
Intrinsically SafeYes
Loop ResistanceDependent On Loop Supply Voltage
MaterialStainless Steel
Max. Pressure1000 psi
Number Of Wires2
Operating Temp.-20°F to +180°F
Power Required9-36V DC
Process Connection GenderMale
Process Connection Size1/4"
Process Connection Size - Transmitter1/4"
Range0 psi to 500 psi
Range UnitsPsi
Response Time5 ms
Thermal Error-0.04% to +0.04%
Accuracy+/-1% of Full Scale
Burst Pressure8x Range
Cable MaterialPVC
Electrical ConnectionCable & Wire Leads, 1/2" MNPT Conduit Connection Entry
Electrical ConnectionsCable & Wire Leads
Enclosure RatingNEMA 4X
FeaturesPerfect Choice for Harsh Operating Environments, Thin Film Sensor Technology and Production Processes Eliminate Signal Instability and Drift, Virtually Unaffected By Shock or Vibration
Manufacturers Warranty Length1 yr.
Maximum Operating Temperature180°F
Maximum Pressure500 psi
Minimum Operating Temperature-20°F
Minimum Pressure0 psi
Nema RatingNEMA 4X
Output4-20 mA
Overpressure2 x Range
Pressure Range0 psi to 500 psi
Pressure Unitspsi
Process Connection1/4" NPT Male
Process Connection TypeNPT
Product TypeIntrinsically Safe-Rated Transmitter
Safety RatingClass I Div. 1 Group A, B, C, D, F, G, Class II Div. 1 Group A, B, C, D, F, G, Class III Div. 1 Group A, B, C, D, F, G
SeriesK1 Series
StandardsCRN, FM
Storage Temperature Range–65°F to 250°F (–54°C to 121°C)
Wiring Entry1/2" MNPT Conduit Connection

Shipping Info:

Ship weight (kg) 0.2025
Ship height (cm)15.49
Ship length (cm)8.38
Ship width (cm)3.56
HS code9026204000
Country of OriginUS

Product Variants

ProductModelNumber Of WiresPower RequiredOperating Temp.AccuracyHousing MaterialWetted MaterialsOutputElectrical ConnectionPrice
ASHCROFT T27M0242EWVAC/30#GXCY Compound Transducer Range Vac To 30 Psi | AB8YGT 2AGC1 T27M0242EWVAC/30#GXCY29-36V DC-40°F to +257°F-0.25% to +0.25%NylonStainless Steel4-20 mA-€299.63
ASHCROFT T27M0242EW30#GXCY Pressure Transducer Pressure 30 Psi | AB8YGU 2AGC2 T27M0242EW30#GXCY29-36V DC-40°F to +257°F-0.25% to +0.25%NylonStainless Steel4-20 mA-€299.63
ASHCROFT T27M0242EW60#GXCY Pressure Transducer Pressure 60 Psi | AB8YGV 2AGC3 T27M0242EW60#GXCY29-36V DC-40°F to +257°F-0.25% to +0.25%NylonStainless Steel4-20 mA-€299.63
ASHCROFT T27M0242EW100#GXCY Pressure Transducer Pressure 100 Psi | AB8YGW 2AGC4 T27M0242EW100#GXCY29-36V DC-40°F to +257°F-0.25% to +0.25%NylonStainless Steel4-20 mA-€299.63
ASHCROFT T27M0242EW200#GXCY Pressure Transducer Pressure 200 Psi | AB8YGX 2AGC5 T27M0242EW200#GXCY29-36V DC-40°F to +257°F-0.25% to +0.25%NylonStainless Steel4-20 mA-€299.63
ASHCROFT T27M0242EW300#GXCY Pressure Transducer Pressure 300 Psi | AB8YGY 2AGC6 T27M0242EW300#GXCY29-36V DC-40°F to +257°F-0.25% to +0.25%NylonStainless Steel4-20 mA-€299.63
ASHCROFT T27M0242EW500#GXCY Pressure Transducer Pressure 500 Psi | AB8YGZ 2AGC7 T27M0242EW500#GXCY29-36V DC-40°F to +257°F-0.25% to +0.25%NylonStainless Steel4-20 mA-€299.63
